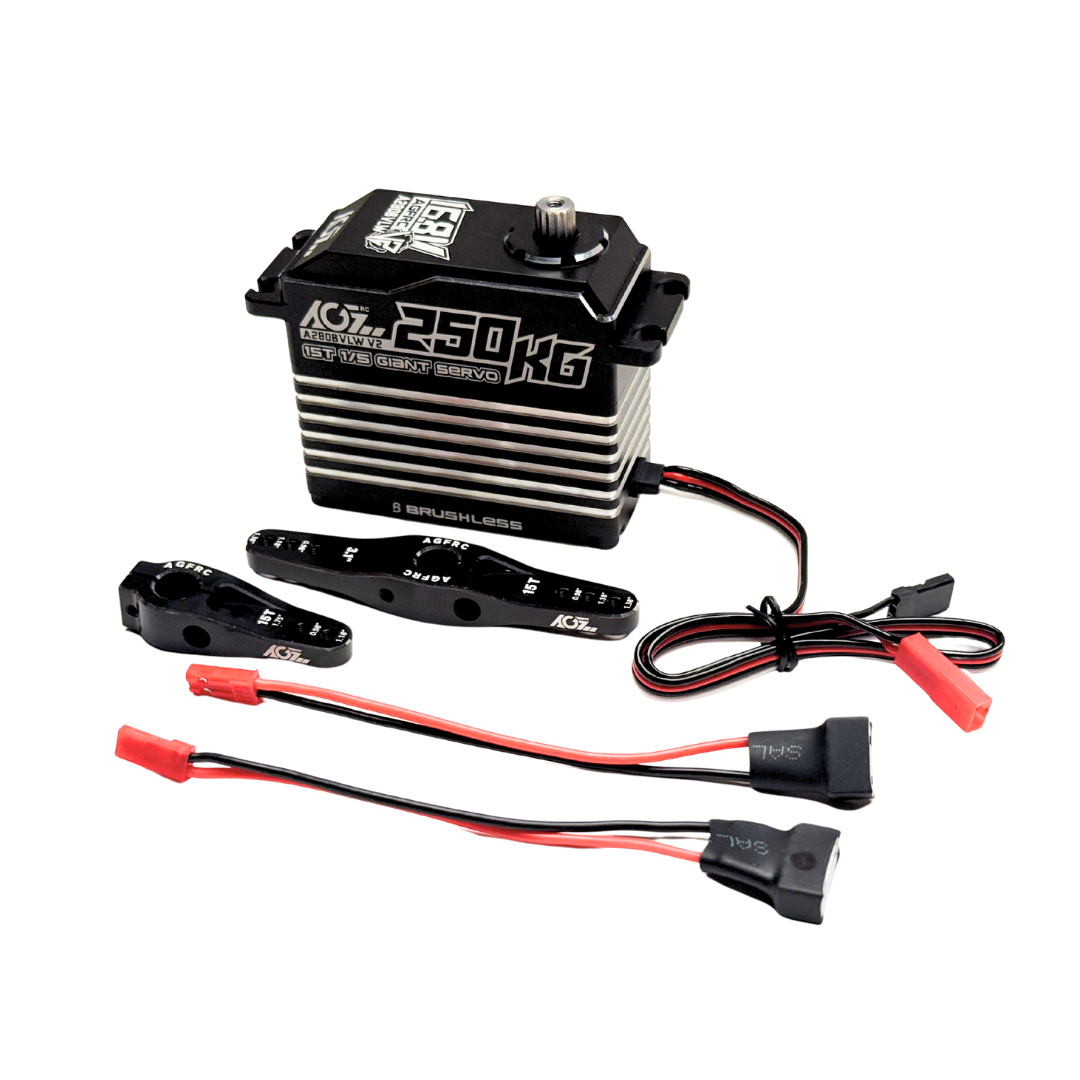

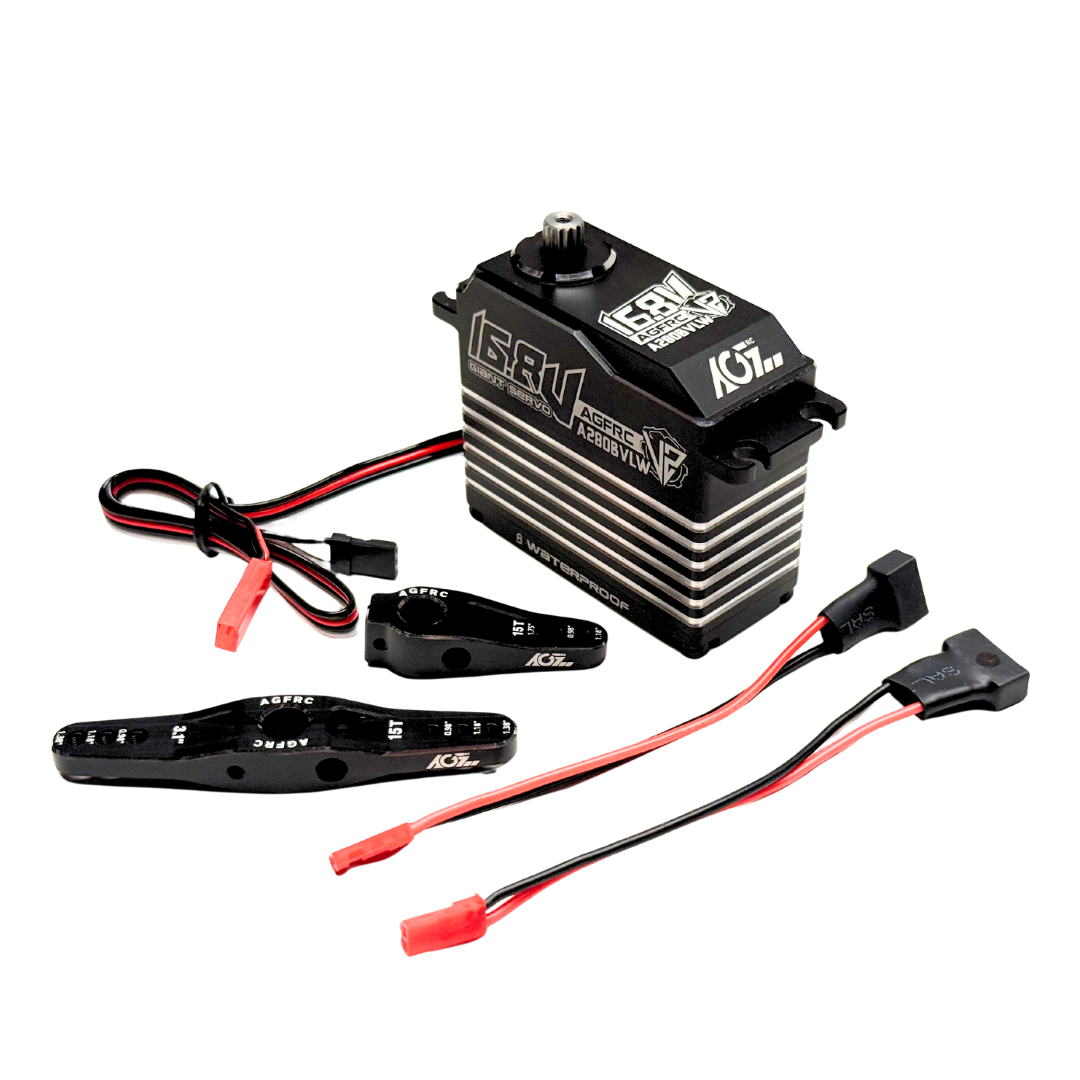

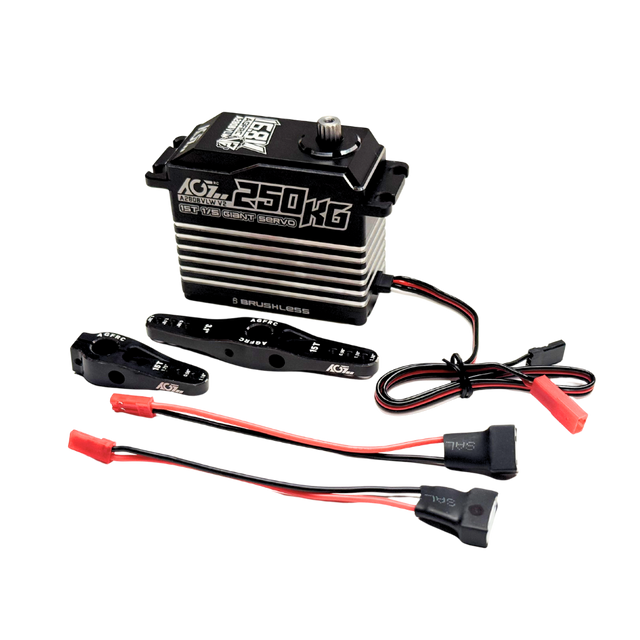

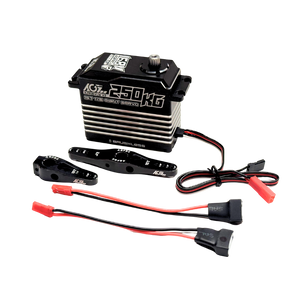

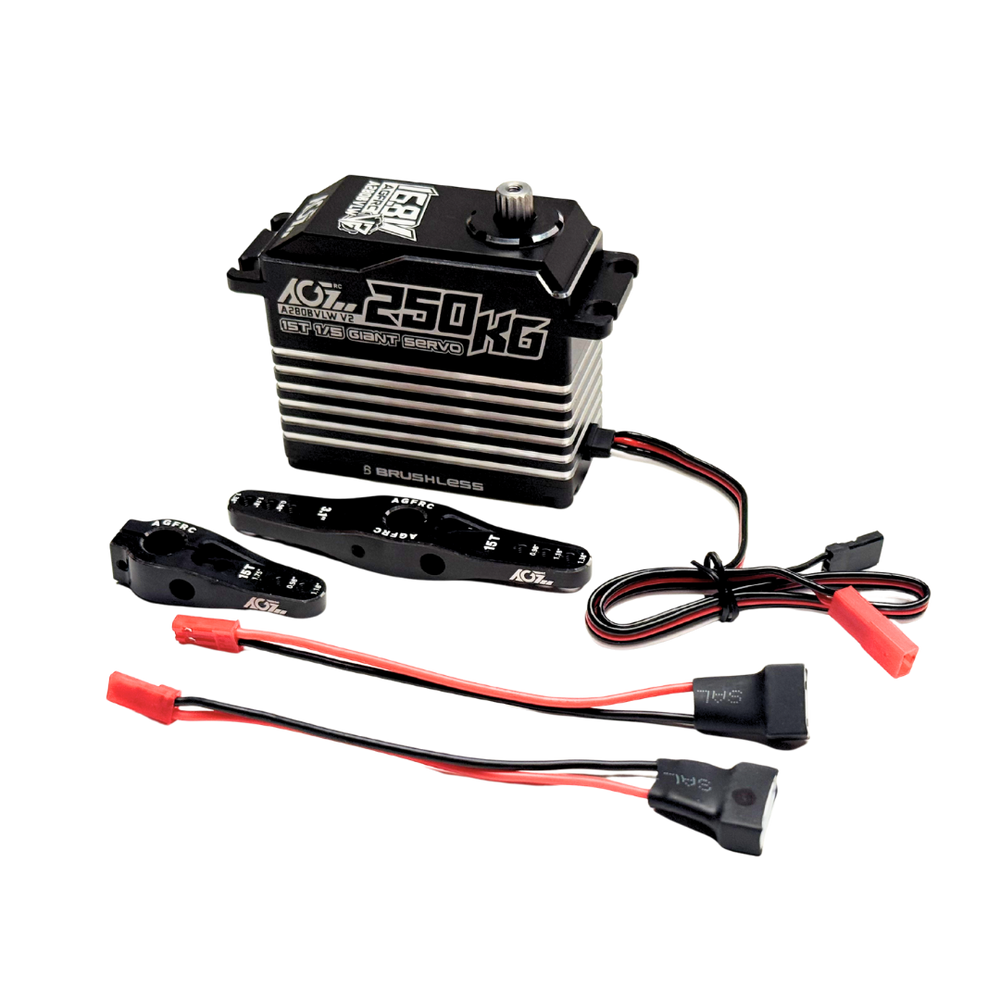

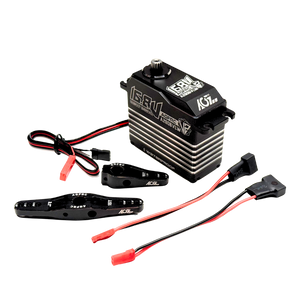

AGFRC Brushless 250KG Billet Servo A280BVLW V2
The brand new A280BVLW V2 servo from AGFRC sets a new standard in torque and power. Utilizing a wide band operating voltage this servo is capable of using up to 4S LiPo power. At full voltage this servo puts out 250kg-cm (2,444 oz-in) of torque. This particular servo is unique that it operates the same as the 100kg A280BHLW with a different gear set and motor. You can use it on 2S, 3S or 4S LiPo power!
All of the expected features are found including IP67 waterproof and dust proof sealing, a brushless motor and a fully machined aluminum servo case. With a standard large scale 15T Coarse Spline output this servo will fit in all other applications that the A280 series of servo will fit.
AGFRC Servos are industry leading performers with a history of much lower warranty claims than NSDRC which makes them a popular choice for OEM sourcing. Skip the markup and get the best servos at the best price. Skip the markup and get the best servos at the best price.
- Heat Sink Aluminum Case - Extremely Strong Steel Gears
- Super Reliable Five Ball Bearing
- 2S to 4S Lipo Compatible (ultra wide voltage)
- Associated 15T Aluminum Servo Horns
- Magnetic Sensor Waterproof IP67
- PWM Precision Control
- Voltage 7.4V ~ 16.8V
- Direction CCW
- Gear Material Strength Steel
- Temperature -30°C ~ +70°C
- Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
- Dimension 65.8*30.0*59.0 mm
- Motor Type Brushless
- Bearing 8BB
- Dead Band 2 µSec
- Net Weight 300 g
- Gear Spline 15T-ɸ7.8 mm
- Case Material AL6061T6 Travel Angel 180 ± 10°
- Wire TYU 300mm / 22AWG
- Wire Color Black | Red | White
- Operating Speed Stall Torque
- 0.210 sec/60° @10.0V 152 kg·cm (2113 oz·in) @10.0V
- 0.190 sec/60° @11.1V 175 kg·cm (2432 oz·in) @11.1V
- 0.170 sec/60° @12.0V 185 kg·cm (2571 oz·in) @12.0V
- 0.140 sec/60° @14.4V 210 kg·cm (2919 oz·in) @14.4V
- 0.130 sec/60° @16.0V 240 kg·cm (3336 oz·in) @16.0V
- 0.126 sec/60° @16.8V 250 kg·cm (3475 oz·in) @16.8V
