MCD RR5 MAX E-Chassis 1/4 Scale Buggy

00515201 - MCD RR5 MAX E-Chassis 1/4 Scale Buggy

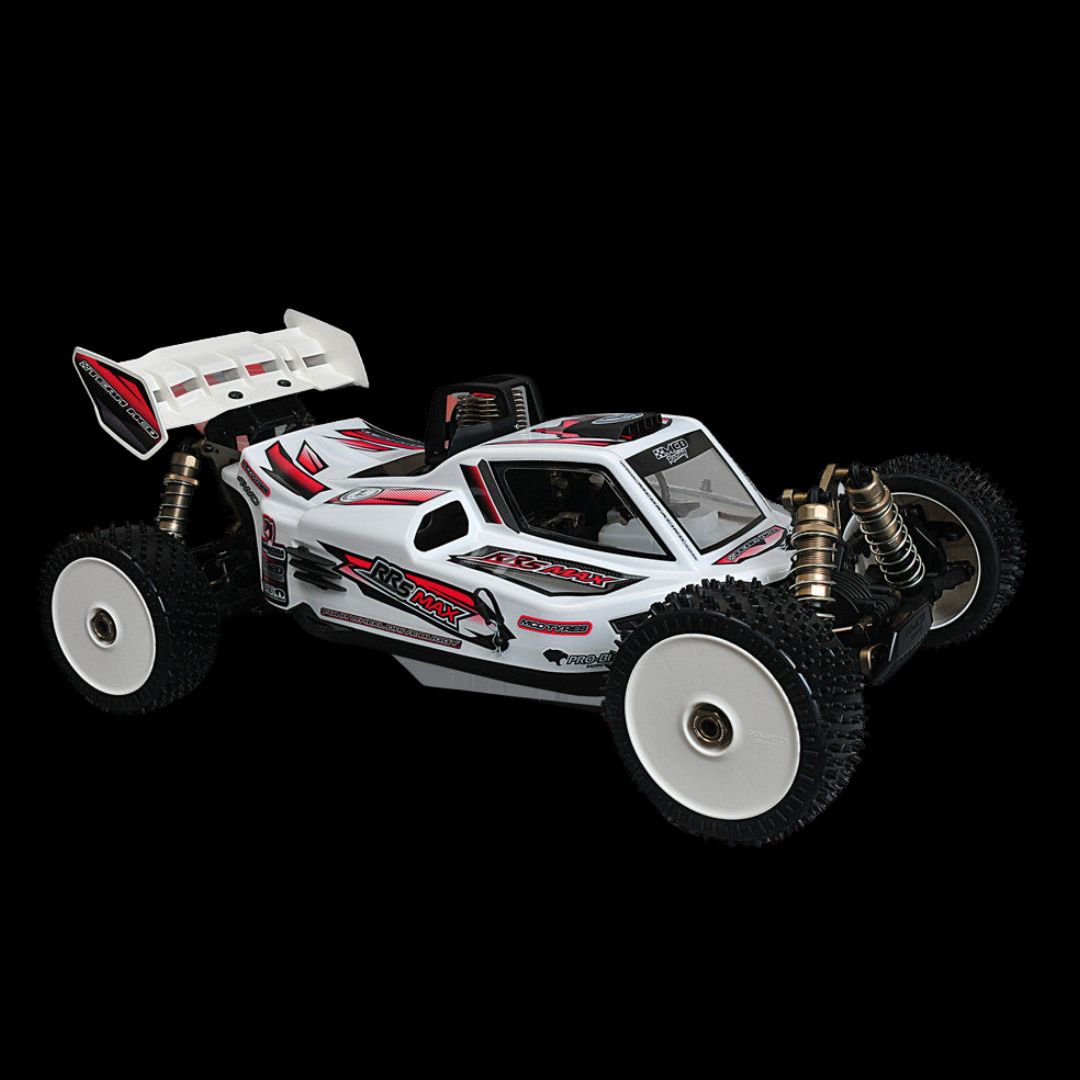

The RR5 MAX, has improved handling and driving stability that come from the extended V5 chassis. The RR5 MAX is equipped with the extended fully aerodynamic body for an improved down force on the front and rear of the RR5-Max.

As this is a rolling chassis you will need the following to complete:

  • Brushless Setup
  • Transmitter and receiver
  • Steering servo
  • Batteries and Charger
  • On-Off Switch
  • Tools and polycarbonate paint

RR5 Max Features:

  • Top of the line racing off-road Buggy

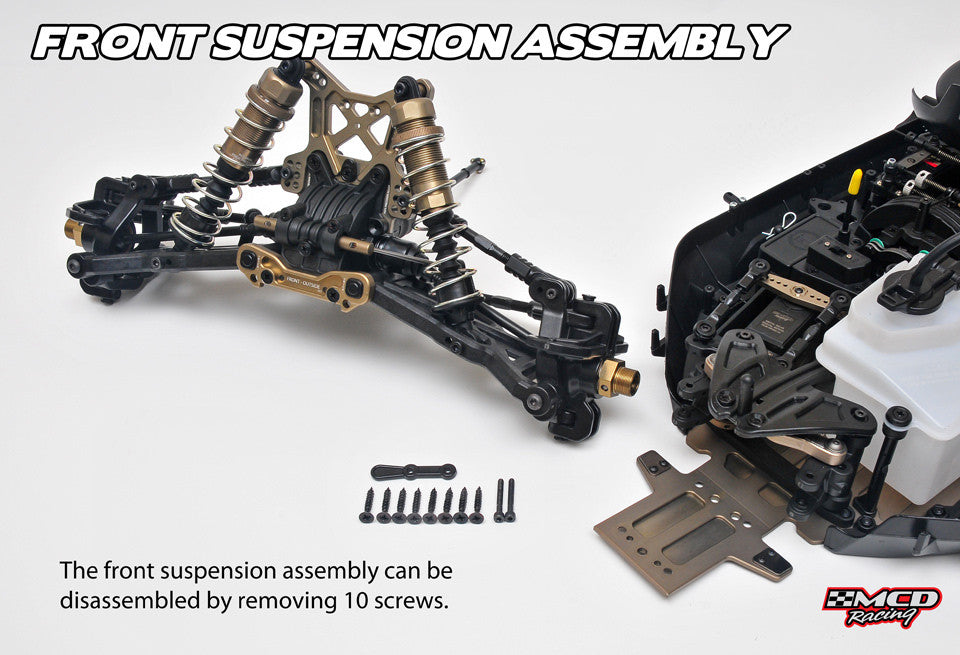

  • Easy assembly/dis-assembly
  • Easy maintenance
  • Centralized and compacted parts layout on chassis
  • Elite racing design ultra-durable high performance parts
  • Fifth generation MCD chassis & suspension arms

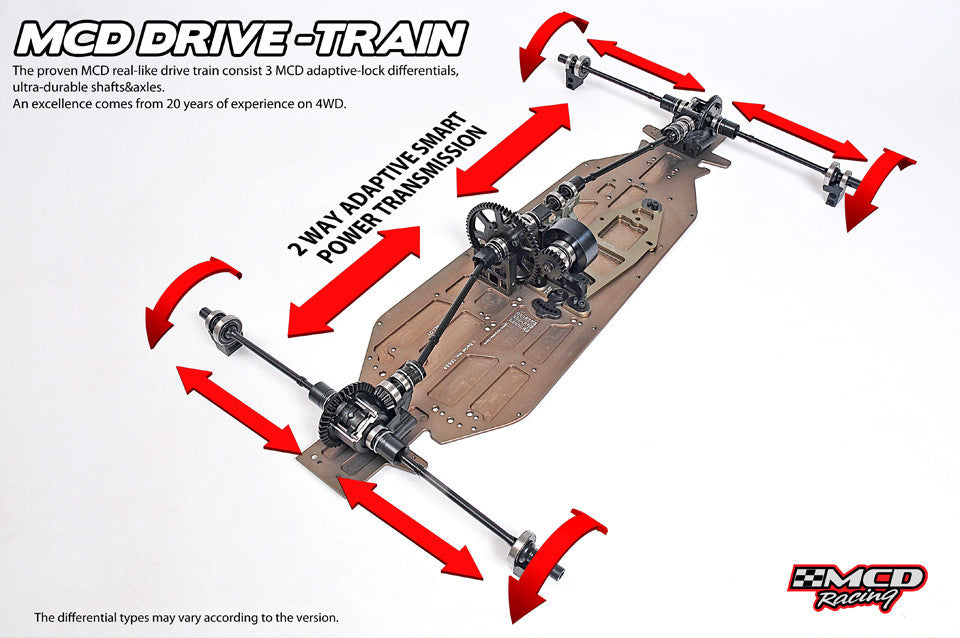

  • Sophisticated full-time 4WD Shaft Driven mechanics

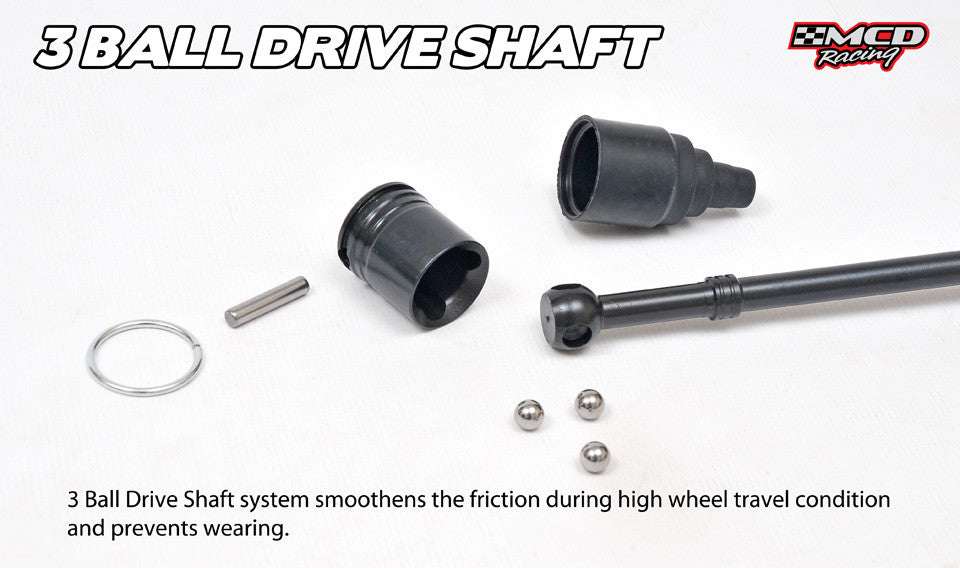

  • Ultra strengthened chrome drive shaft and axle
  • Easy gear mesh system

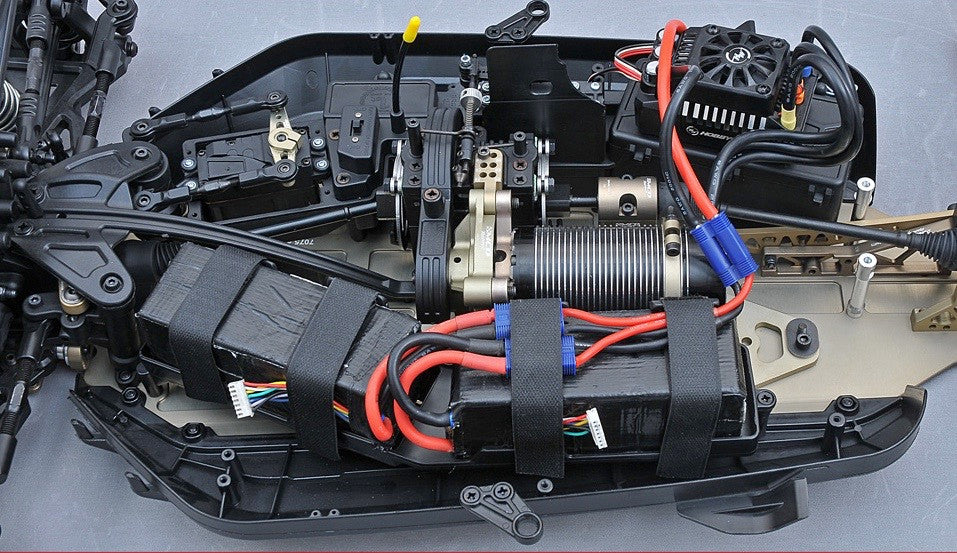

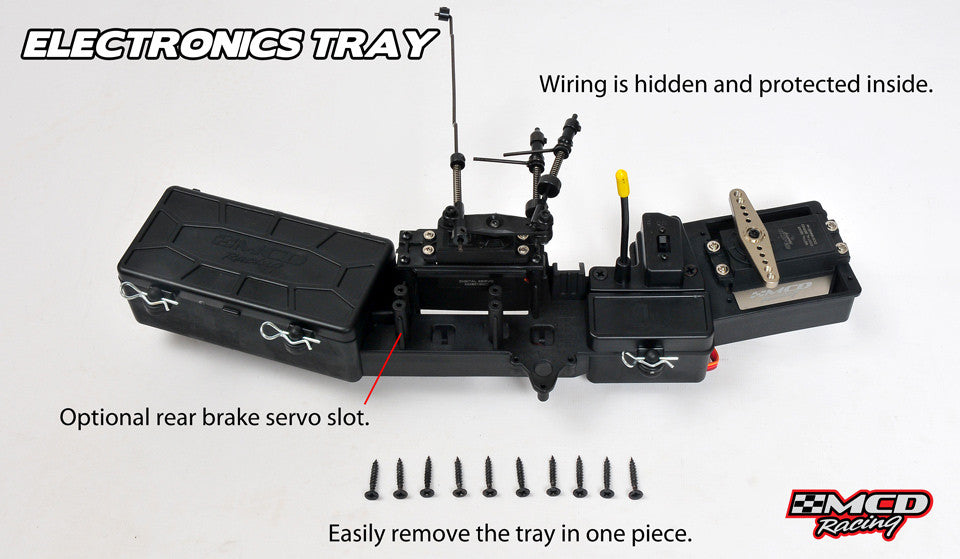

  • Easily removable one-piece electronics tray
  • CNC machined, anodized light-weight 7075 T6 aircraft alloy chassis

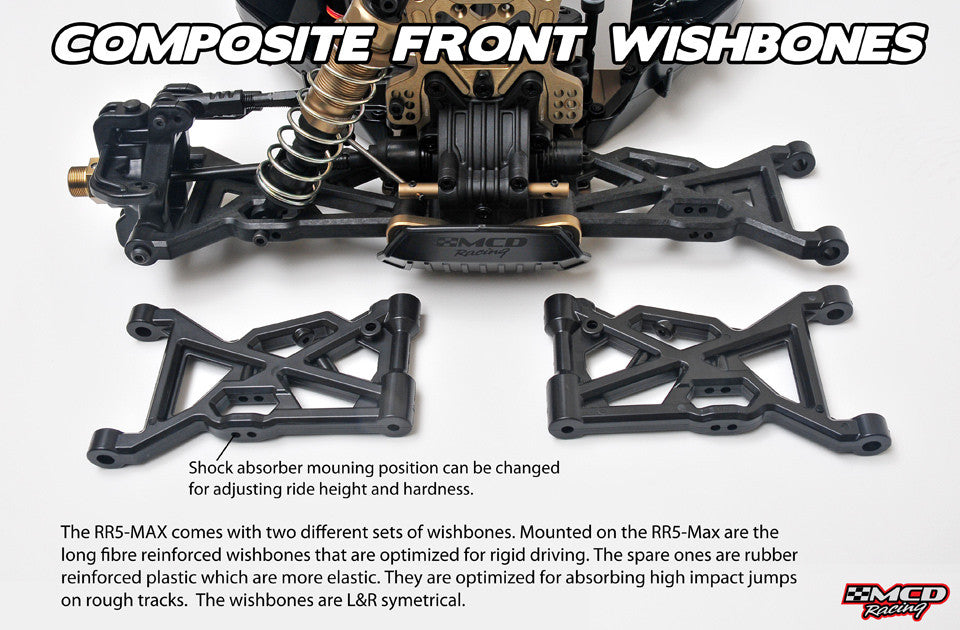

  • Strengthened long wishbones
  • Spare softer wishbones
  • Solid and durable side guards

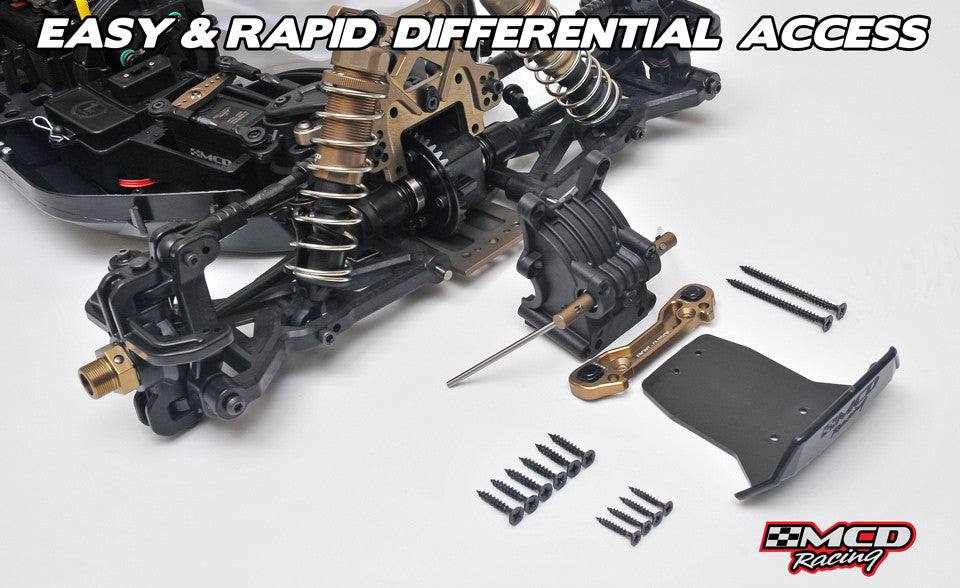

  • Easily removable composite front, rear and center diff houses
  • Ultra durable front and rear adjustable brake system

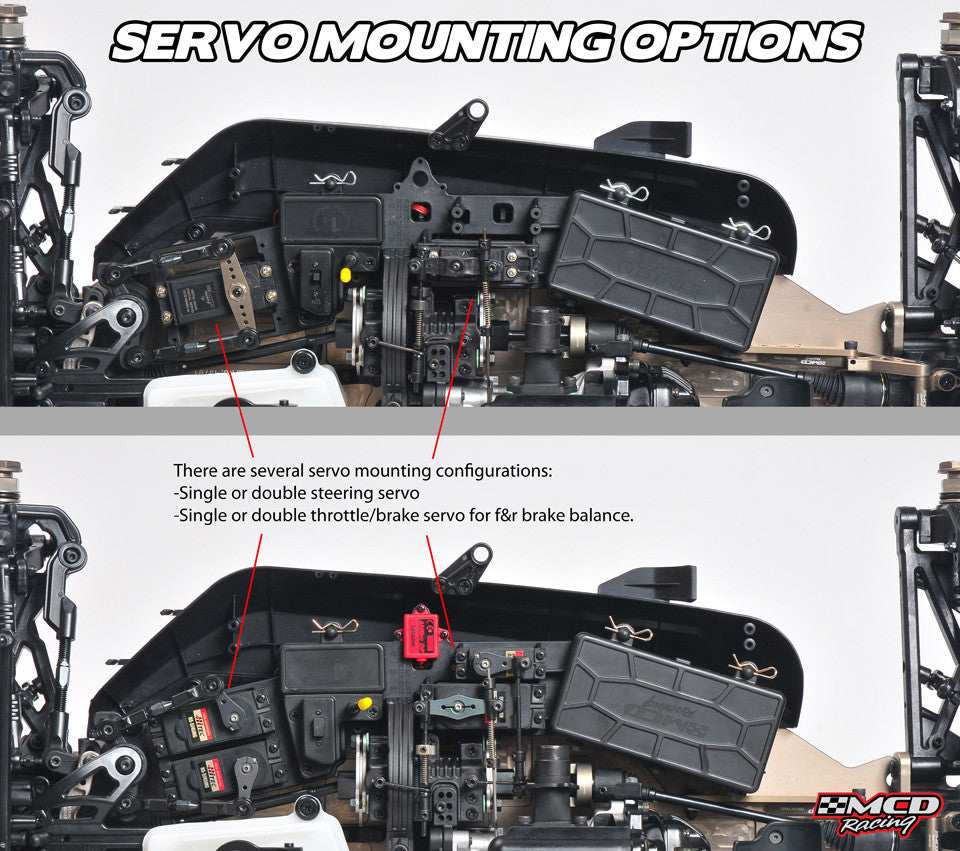

  • Rear-brake only servo slot
  • 8mm light-weight 7075 air craft alloy front and rear towers
  • Coil-over extended alloy shock absorbers with High Pressurized Cell™ System
  • Anodized alloy shock bodies
  • Ultra hardened steel transmission gears
  • No-Stress-Effect polyamide front bumper and rear diffuser
  • Ultra durable steel ball cup-joints
  • CNC machined anodized alloy engine carrier

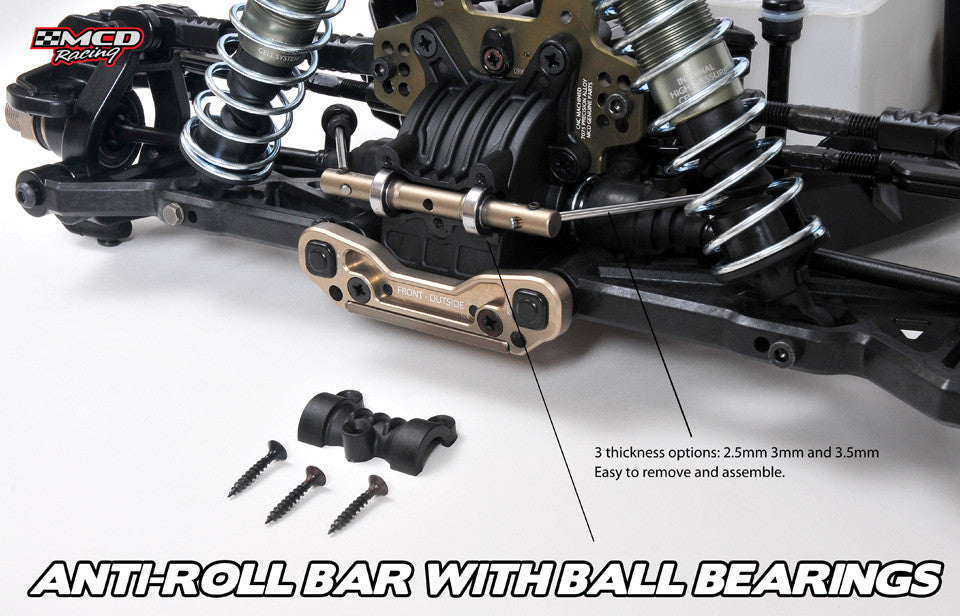

  • Double ball bearing anti-roll bars

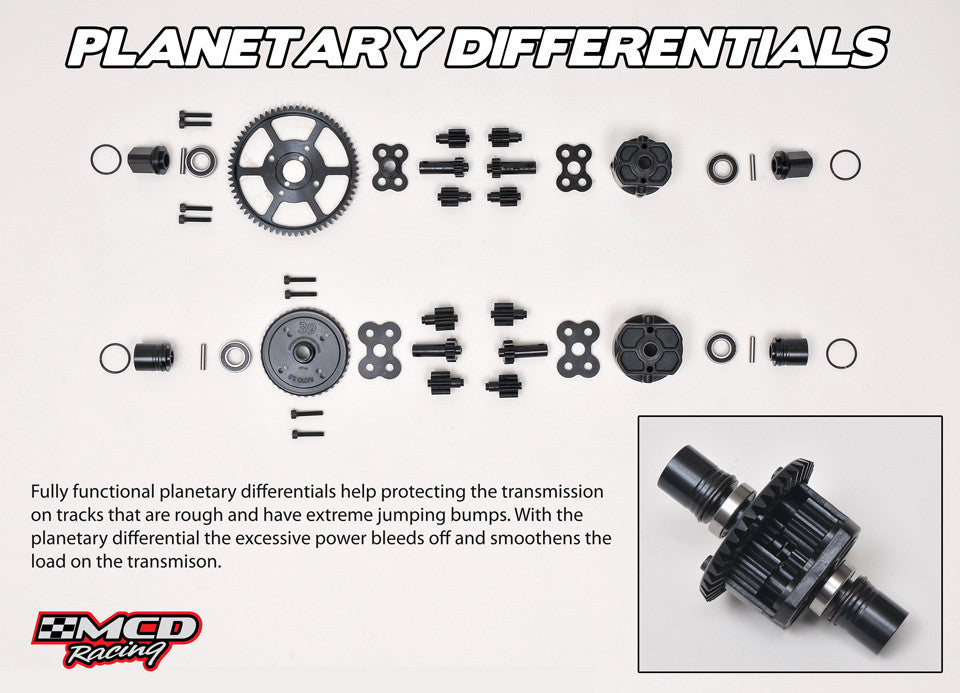

  • Planetary differentials
  • Super-Cooling V5 air ventilation system
  • Adjustable CG
  • Adjustable weight distribution
  • Molded fuel tank with shake absorbing separators
  • Fully composite body accessories
  • Alloy hinge-pin holders
  • Improved front stiffener
  • Drive and shock shaft boot

Add all that to the multiple European Championship winning features that come as standard on an RR5 and you have yourself a seriously impressive package!

Length : 800 mm
Width : 475-480 mm
Overall height : 325 mm
Ground clearance : 25-85 mm
Weight : 12.8-13kg (depending on equipment installed)
Wheelbase : 610-620 mm (adjustable)
Trackwidth

: 410mm
Chassis material : 7075 Anodize Alloy (4mm)
Suspension : Non-parallel non-line independent
Caster angle : 8°(6° - 14° adjustable)
Camber angle : Adjustable
Toe angle : In-board and out-board adjustable

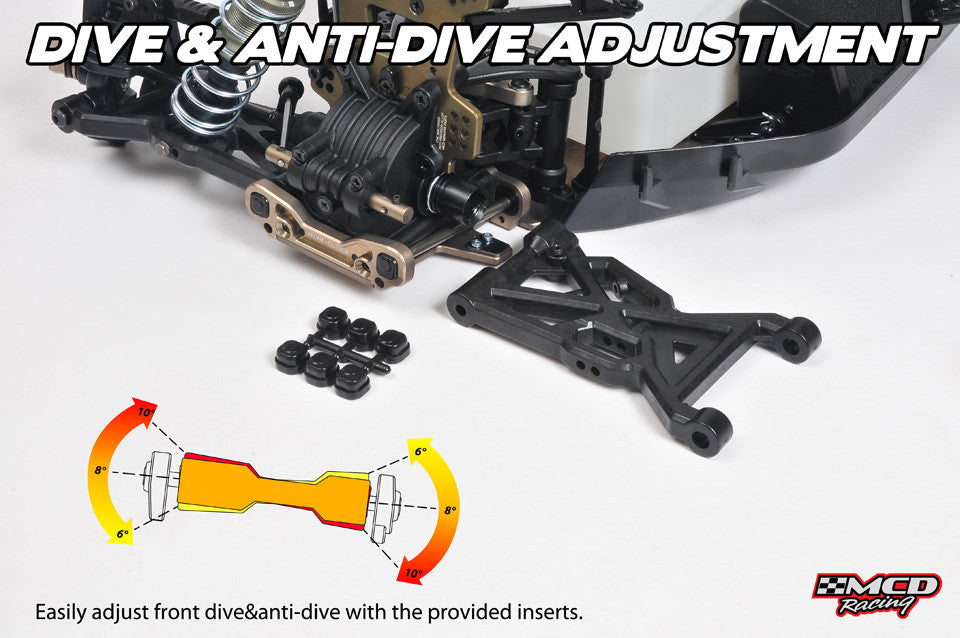

Anti-squat : 3°(adjustable)
Rear-squat : 5°
Kick-up : 8°-10°(adjustable)
Shock absorber : Coil-over Oil-filled Internal High Pressure Cell
Transmission : Full-Time 4WD 3-Diff Shaft Driven
Gear ratio : 9.14:1 (18 available 7,44:1 to 10,67)
Tyre size : 65 x 180 mm

    Note: Images may show items not included in the sale of this model such as motor/Esc etc. These items are shown for illustrative purposes only.
