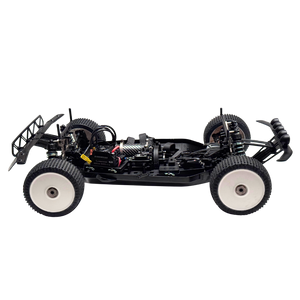

MCD W5 Short Course 1/5 Scale Truck Electric ARTR
The first ever brushless ARTR MCD W5 Short Course truck is now available at Taylor RC!
This expertly assembled kit is the perfect balance of MCD Racing Refinement combined with the thrill of brushless electric power! Those that have been looking for a brushless electric 4WD 1/5 truck this W5 offers the best value and performance available. These trucks are finished in house by our professional team so you can be assured the car is ready to go out of the box. A Hobbying Max5 G2 and 56118 800kv motor combo sets the standard for performance and reliability with large scale cars. QS8 battery connectors are installed making it ready to fit high output batteries. The tyres are pre-glued keeping the setup time minimal. A brushless servo for throttle and brake keeps everything in control.

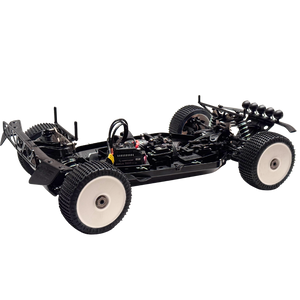

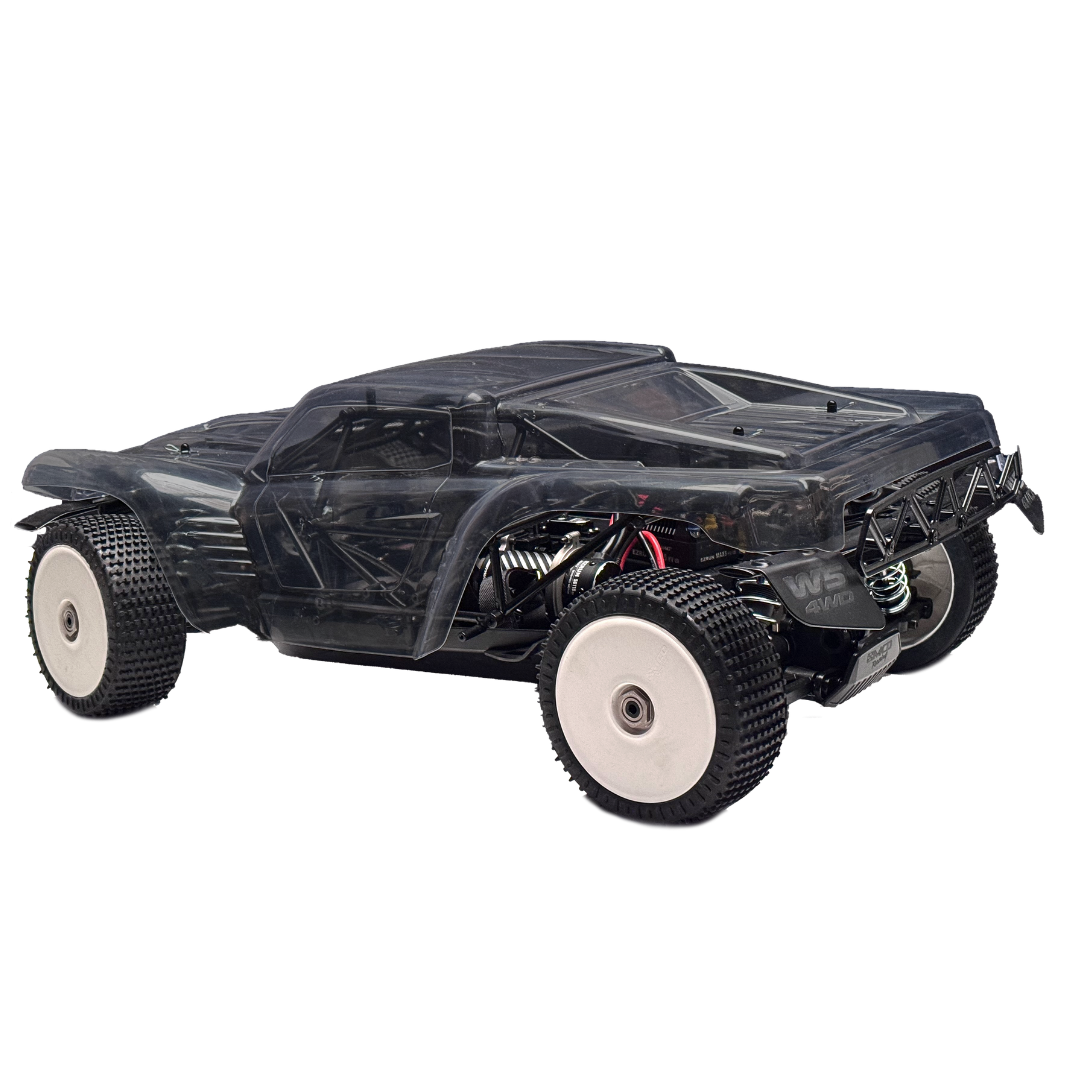

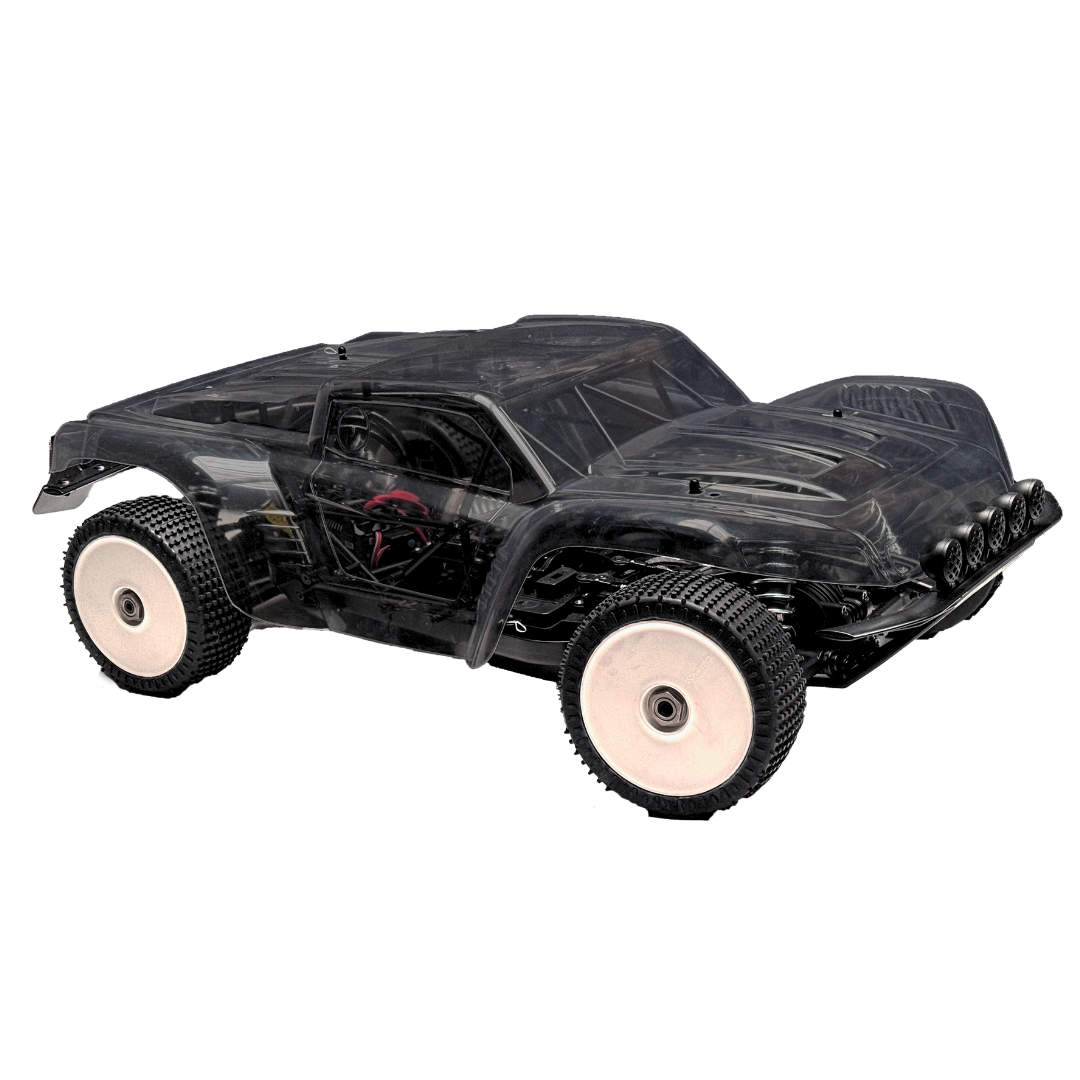

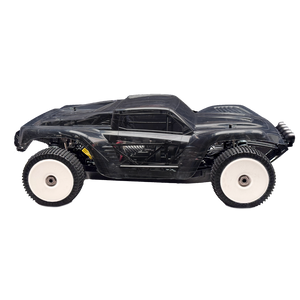

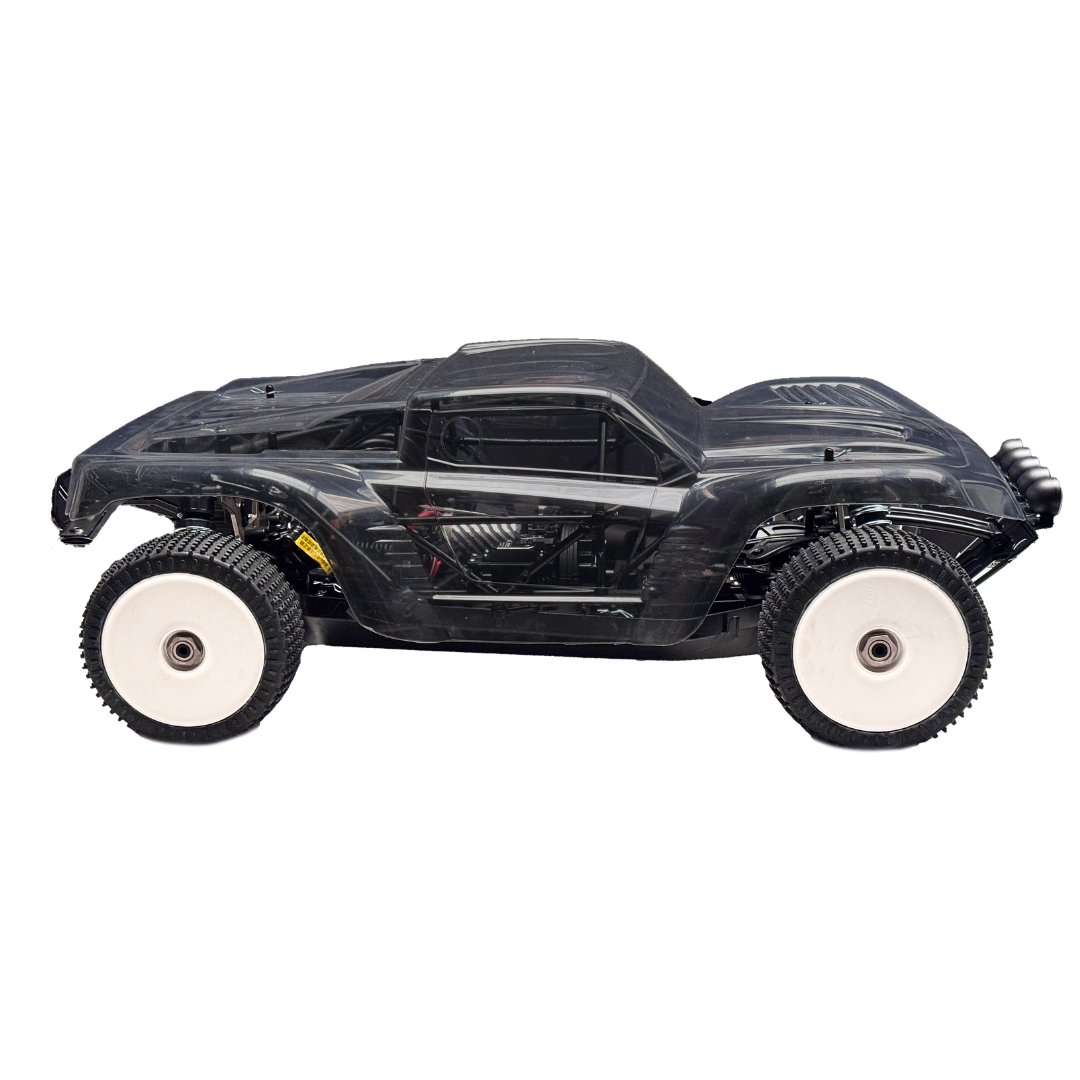

W5's bold, aggressive styling is conveyed by the superior MCD quality V5 chassis. Viewed in profile, the W5 states a sense of poise and strength, with a unique hood scoop and huge fender arches housing large 190mm Xross-Max Series Tyres and stylish wheels providing a powerful posture. The MCD W5, a powerful blend of strength, agility and beauty is the new Short Course truck for the most demanding active off-road enthusiasts. The Car is supplied as per photos with a clear body shell so you can add your own personal touch to the Build on the Paint Job.
Even before we joined the MCD family as a Main Distributor, we heard cries for the MCD Brand to offer turn-key cars for the Enthusiast who doesn't want to mess with rolling chassis, finding all the right parts to complete, gluing tyres and setting up builds etc.
These builds offer amazing value allowing you to get the famous MCD 5th Scale Quality combined with a proven Hobbywing ESC and Motor combo for less than the component parts to build it yourself!
Spec List:

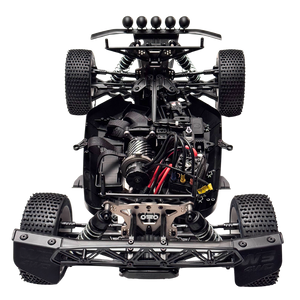

- Complete MCD W5 Competition Spec Roller as the base

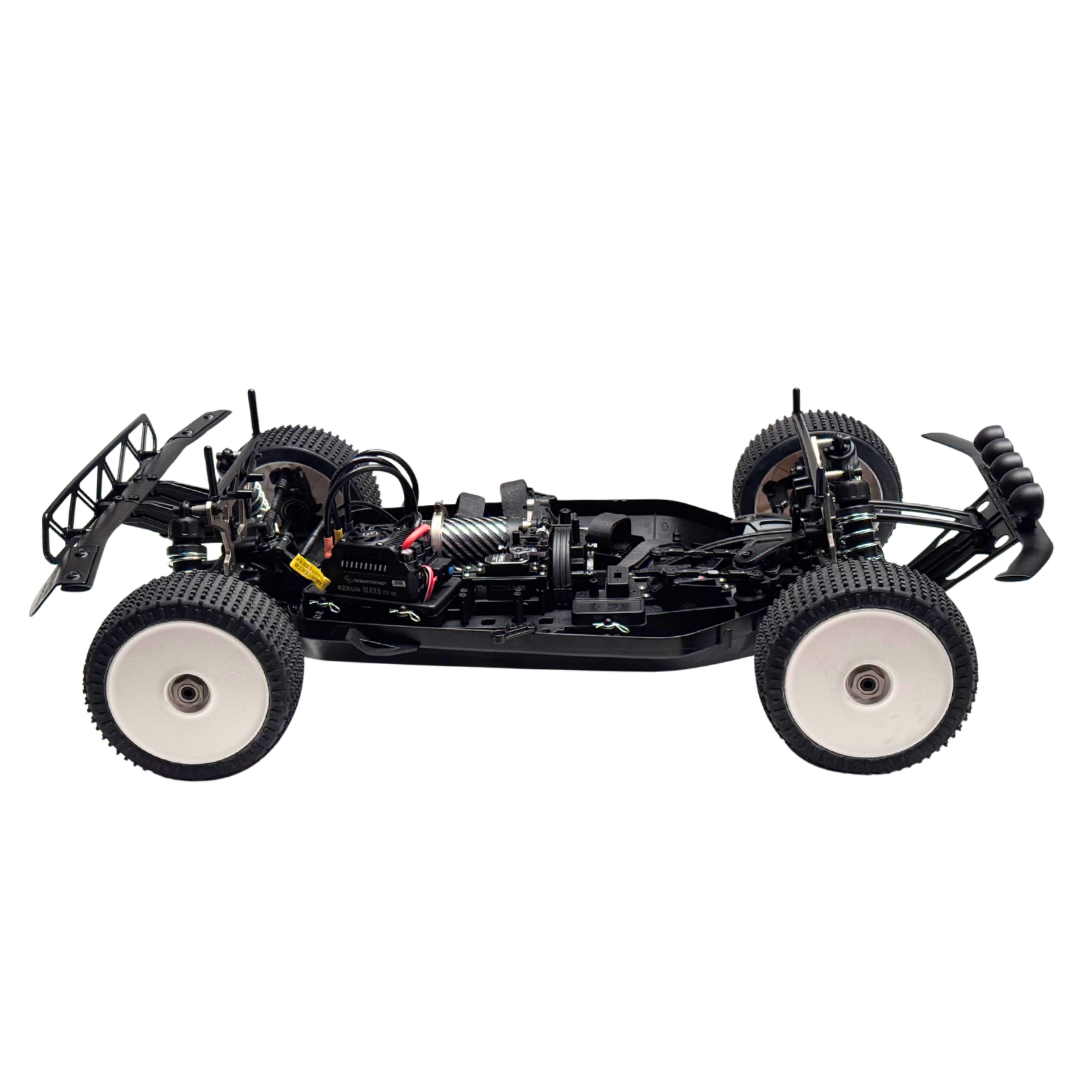

- Hobbywing Max5 G2 Motor/ESC Combo
- QS8 Battery Connector soldered speed controller
- Pre-Glued Tyres (MCD normally come with Tyres unglued)
- MCDs Sophisticated full-time 4WD Ball-Drive Shaft Mechanics
- Kraken RC HD 60kg Steering Servo
- Taylor RC 55kg Billet Brushless Brake Servo
Required to Run:
- Charger and charge lead
- Radio Gear (Shop Here)
-
Batteries with QS8 Connector (2x 4S or 2x 6S).
- Factory battery tray has a battery fitment of approximately 155x55mm. It is often modified and trimmed by users to fit different sized batteries. We also suggest the Bonehead Extended Battery Tray
- Polycarbonate compatible paint
- Body decals (optional) MCD W5 Body Decals 500202P
- Spare parts and upgrades can be found HERE.
- Tyres and wheels may change from photograph as MCD may change factory included pieces at time of assembly
- Top of the line competition Short Course Truck
- Easy assembly/dis-assembly
- Easy maintenance

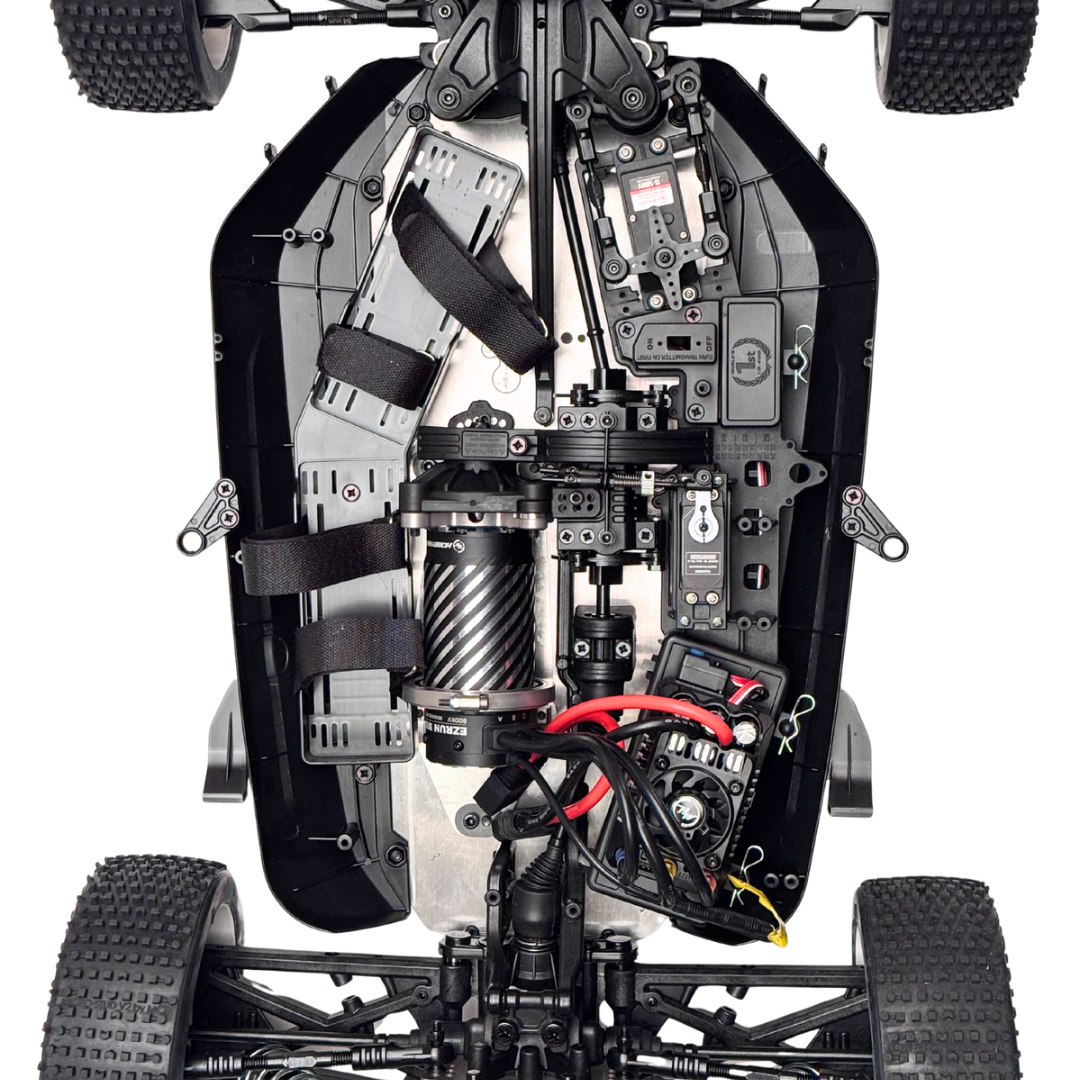

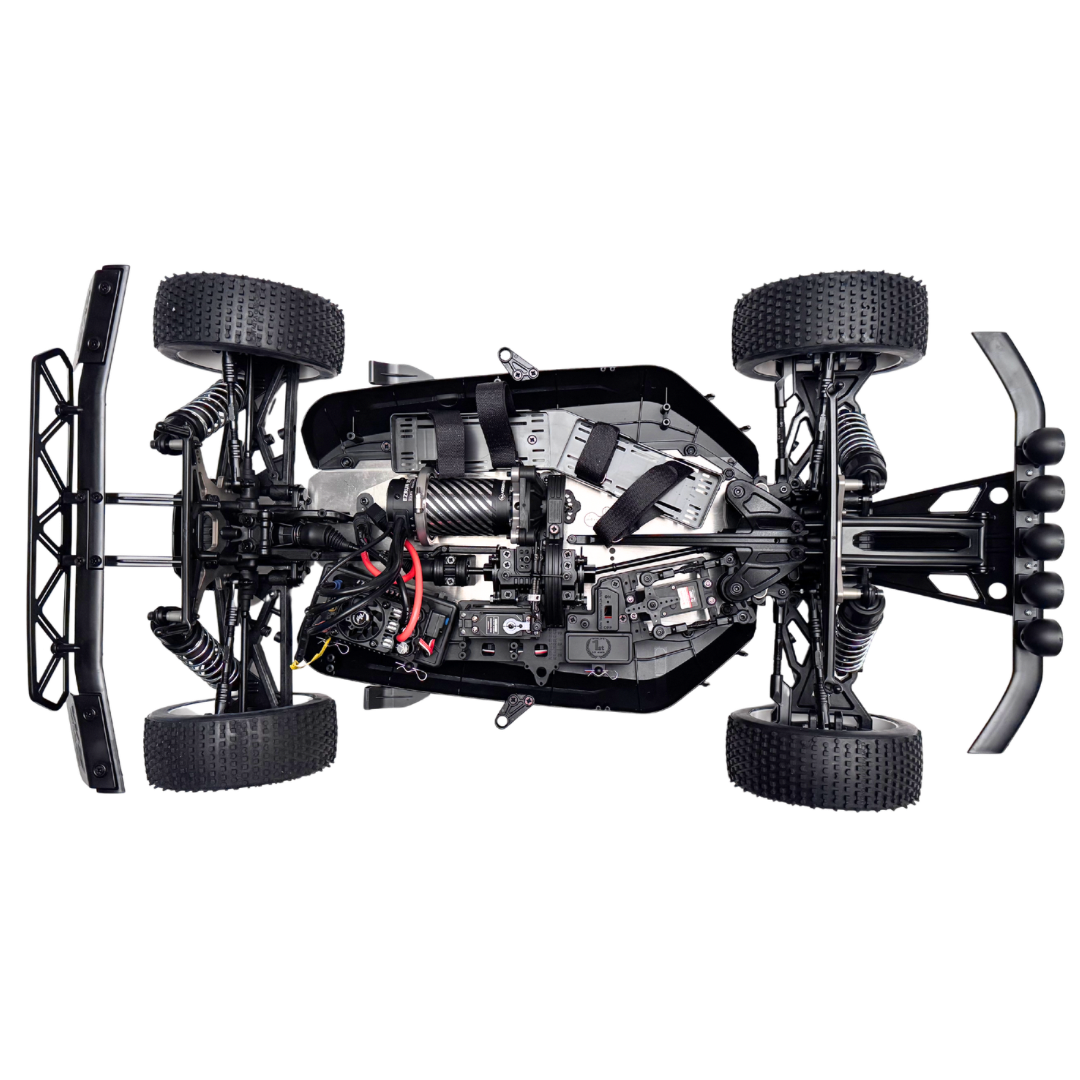

- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms
- Sophisticated full-time 4WD Shaft Driven mechanics
- Ultra strengthened chrome drive shaft and axle
- New easy gear mesh system
- Easily removable one-piece electronics tray
- CNC machined 5083 alloy chassis

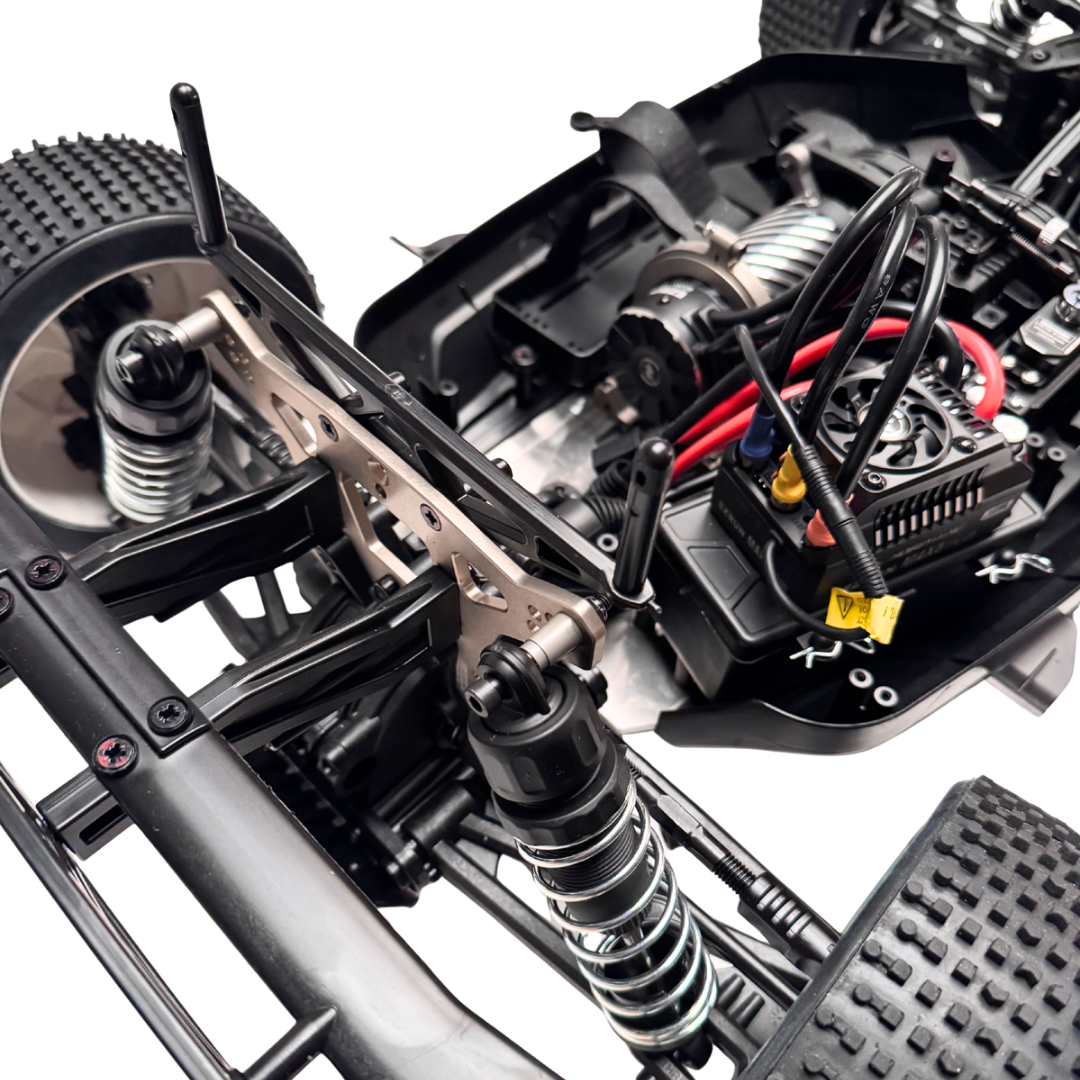

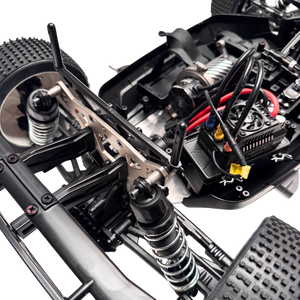

- Strengthened long wishbones
- Solid and durable side guards
- Easily removable composite front, rear and center diff houses
- Ultra durable front and rear adjustable brake system
- Rear-brake only servo slot
- 5 mm light-weight anodized 7075 air craft alloy front and rear towers
- Optimized multiple shock mounting holes
- Coil-over extended composite shock absorbers
- Ultra hardened steel transmission gears
- No-Stress-Effect polyamide front and rear bumper
- New ball cup-joints
- Improved brake linkage
- New Viper Racing Air Filters
- Adjustable CG
- Adjustable weight distribution
- Molded fuel tank with shake absorbing separators
- Ultra rigid roll cage
- Fully composite body accessories
- Drive shaft boot
- Length: 880 mm
- Width: 490 mm
- Overall height: 330 mm
- Ground clearance: 25-85 mm
- Weight: 13.5kg - 14.3kg (depending on equipment installed)
- Wheelbase: 549-565 mm (adjustable)
- Trackwidth: 402mm
- Chassis material: Alloy (4mm)
- Suspension: Non-parallel non-line independent
- Caster angle: 18° (14° - 20° adjustable)
- Camber angle: Adjustable
- Toe angle: In-board and out-board adjustable
- Anti-squat: 3°
- Kick-up: 8°-10° (adjustable)
- Shock absorber: Coil-over Oil-filled
- Transmission: Full-Time 4WD Shaft driven
- Gear ratio: 9,45:1 (18 available 7,44:1 to 10,67:1)
- Tyre size: 84 x 190 mm (Xross-Max)
