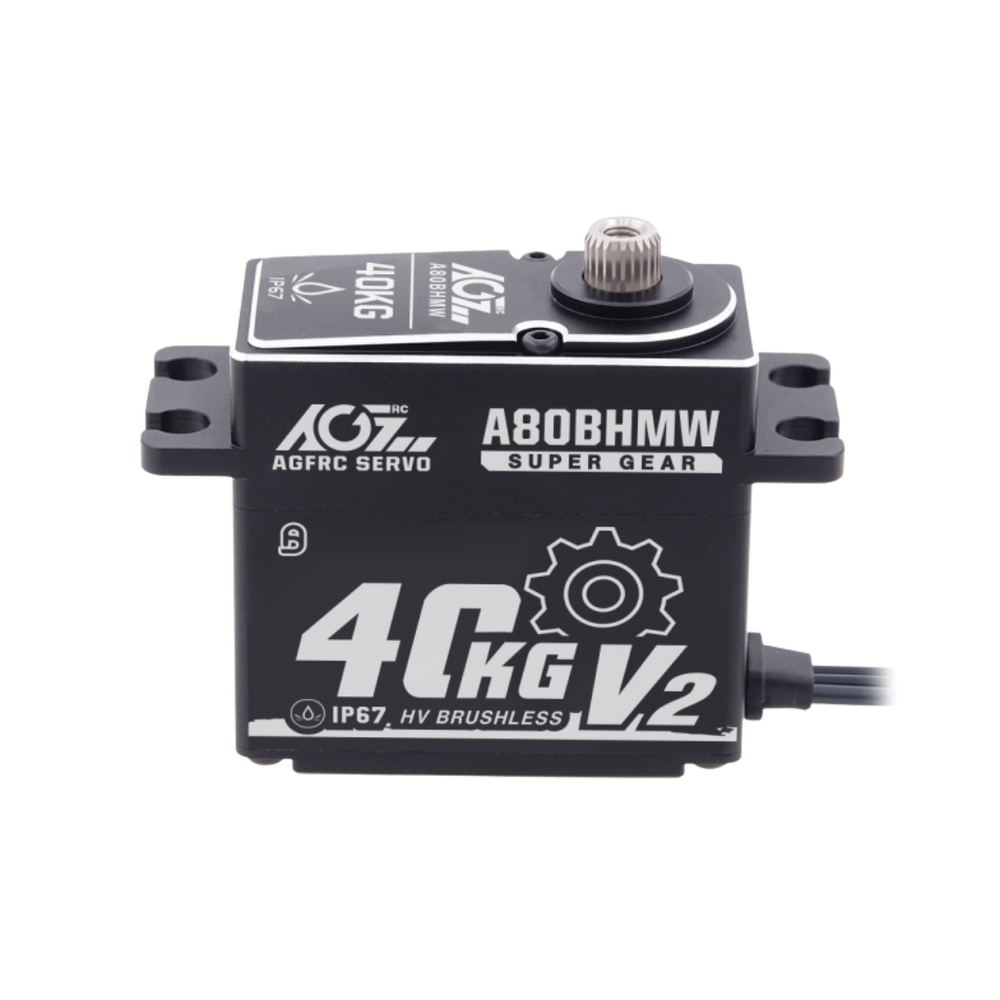

AGFRC 40KG Baja+MCD Throttle/Brake servo - A80BHMW V2
This is the ultimate HPI Baja and MCD Throttle and Brake Servo from AGFRC! Fully waterproof, brushless with 40KG (555 oz) of torque and peak of 0.085secs speed, it's a little monster!
The A80BHMW V2 super torque waterproof steel gear digital servo will be a great option which support to use with high voltage and damp situation. A80BHMW V2 servo make almost 500oz-in torque with speed 0.11sec at 7.4V. While using voltage up to 8.4V, it can deliver 555oz-in super torque and 0.085sec high speed at 8.4V.
This is a "standard" sized servo. This servo can will be a great choice for use in scale crawlers, 1/10 monster truck, 1/10 2WD and 4WD buggies and trucks. In addition, this A80BHMW V2 is great choice for boats and other application which require high power, high voltage and waterproof servo. Here at Taylor RC we often suggest this servo be used for a throttle and brake servo for the HPI Baja and MCD line of cars as well as the throttle and reversing operation of the Primal Monster Trucks
This A80BHMW is waterproof IP67 rated up to 1 meter which allow driving in the rain, puddles, snow and mud. High reliable and durable patent gear design which can be longer service life. Full aluminun CNC case for fast heat disppation. High precision digital control circuitry.
AGFRC Servos are industry leading performers which makes them a popular choice for OEM sourcing. Skip the markup and get the best servos at the best price.
- Full CNC Aluminium Shell
- Long Lifespan Brushless Motor
- High Precision Steel Gears
- Fully Waterproof Up To IP67 Grade
- High Reliability Standard Digital Servo
- Ideal for Off-Road, Truck, Plane etc.
- Model Name: A80BHMW V2
- Operating Voltage: 4.8-8.4 V
- Operating speed: 0.120sec/60° @ 6.0V
- Operating speed: 0.100sec/60° @ 7.4V
- Operating speed: 0.085sec/60° @ 8.4V
- Stall Torque: 31 kg-cm (430 oz-in) @ 6.0V
- Stall Torque: 36 kg-cm (499 oz-in) @ 7.4V
- Stall Torque: 40 kg-cm (555 oz-in) @ 8.4V
- Gear: Metal
- Motor: BLS
- Size: 40*20*37.5mm
- Weight: 81g
- Connector Wire: TYU 300mm / 22AWG
