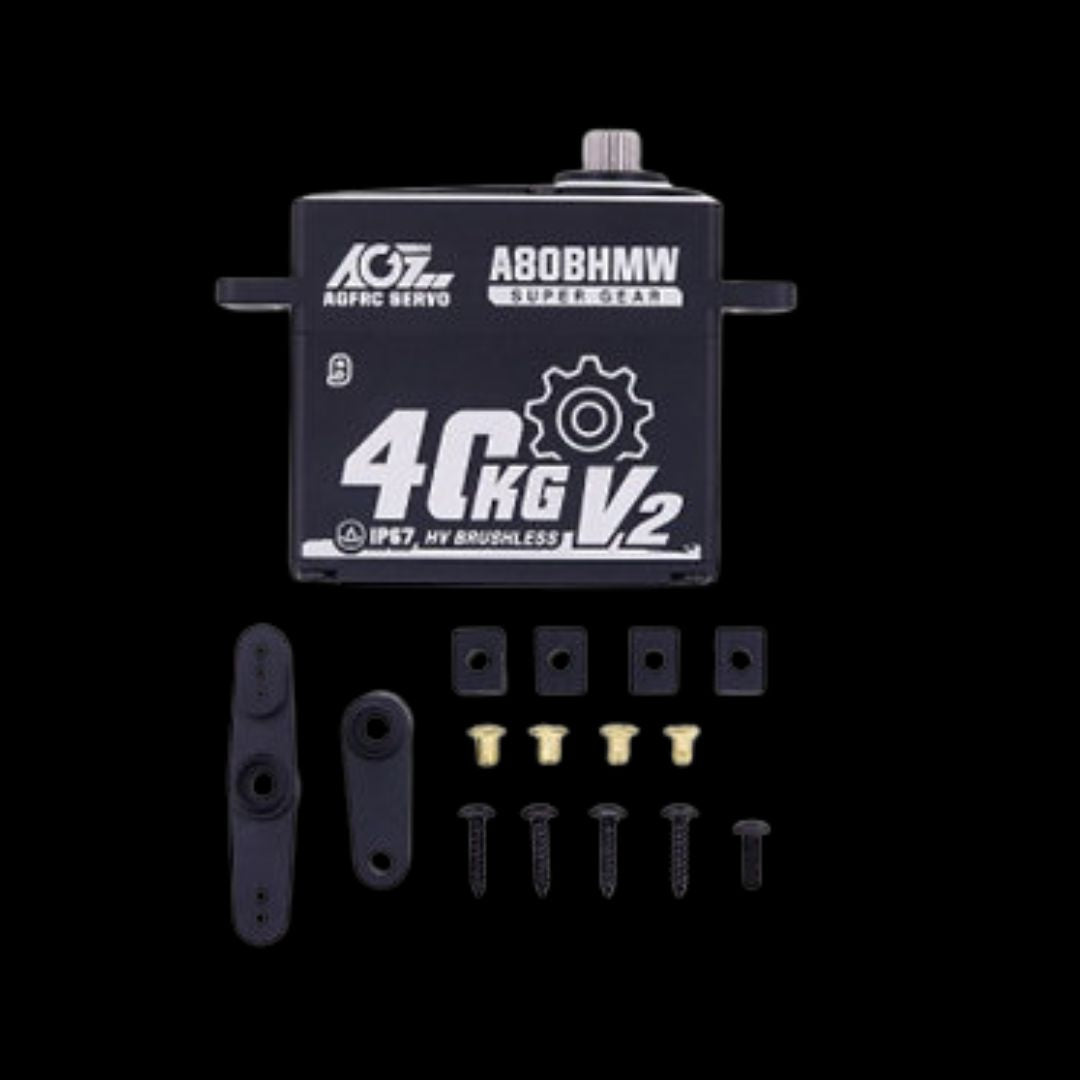

AGFRC 40KG Baja+MCD Throttle/Brake servo

The Ultimate HPI Baja and MCD Throttle and Brake Servo has finally arrived from AGFRC! Fully waterproof, 40KG of torque and peak of 0.085secs speed, its a little monster!

AGFrc A80BHMW V2 super torque waterproof steel gears digital servo will be the great option which support to use with high voltage and damp situation. A80BHMW V2 servo make almost 500oz-in torque with speed 0.11sec at 7.4V. While using voltage up to 8.4V, it can deliver 555oz-in super torque and 0.085sec high speed at 8.4V.

This servo can also be used in scale crawlers, 1/10 monster truck, 1/10 2WD and 4WD buggies, as well as 1/10 scale buggies and trucks. In addition, this A80BHMW V2 is great choice for boats and other application which require high power, high voltage and waterproof servo.

This A80BHMW is waterproof IP67 level up to 1 meter which allow driving in the rain, puddles, snow and mud. High reliable and durable patent gear design which can be longer service life. Full aluminun CNC case for fast heat disppation. High precision digital control circuitry. If you need some modification based on our default setting, pls contact us directly.

Feature

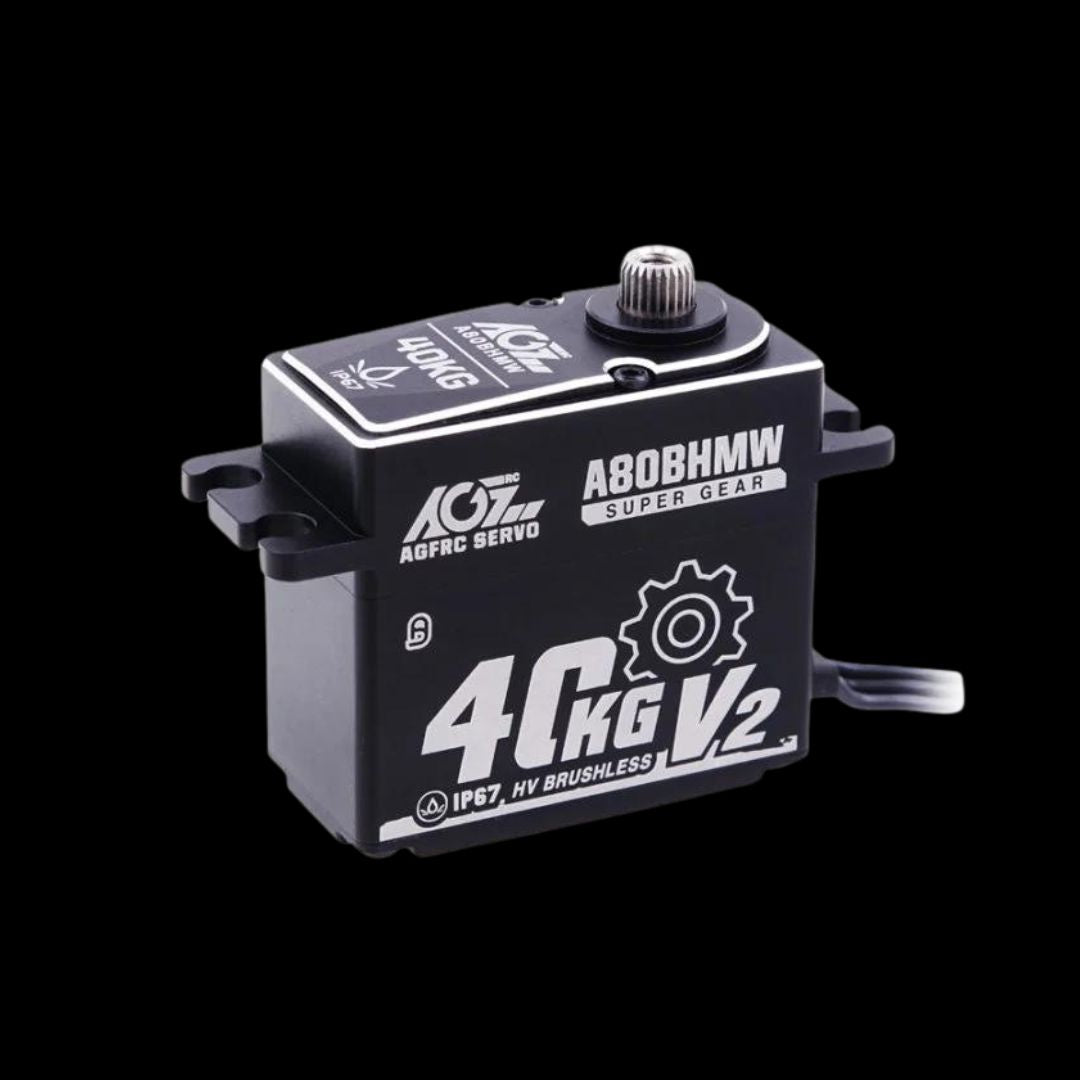

Full CNC Aluminium Shell

Long Lifespan Brushless Motor

Strength 3 Ball Bearings

High Precision Steel Gears

Fully Waterproof Up To IP67 Grade

Built-in Magnetic Sensor

More robust 2mm PIN shaft

High Reliability Standard Digital Servo

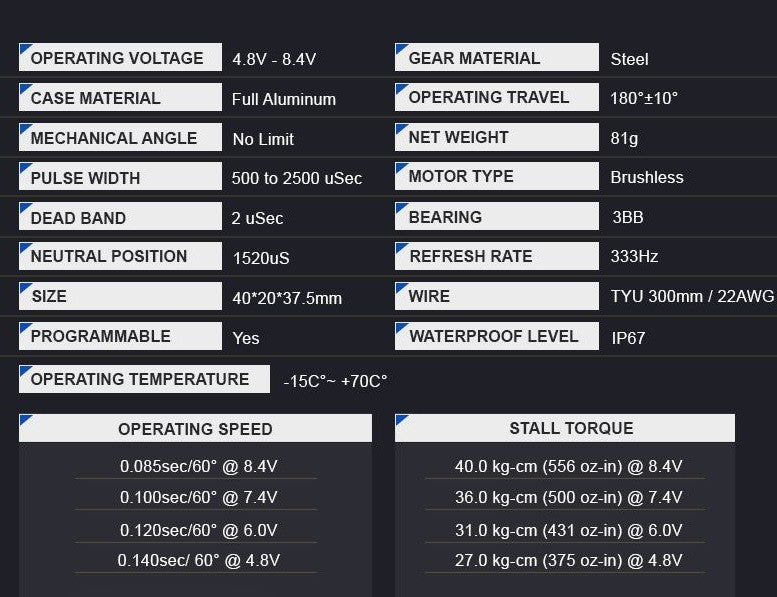

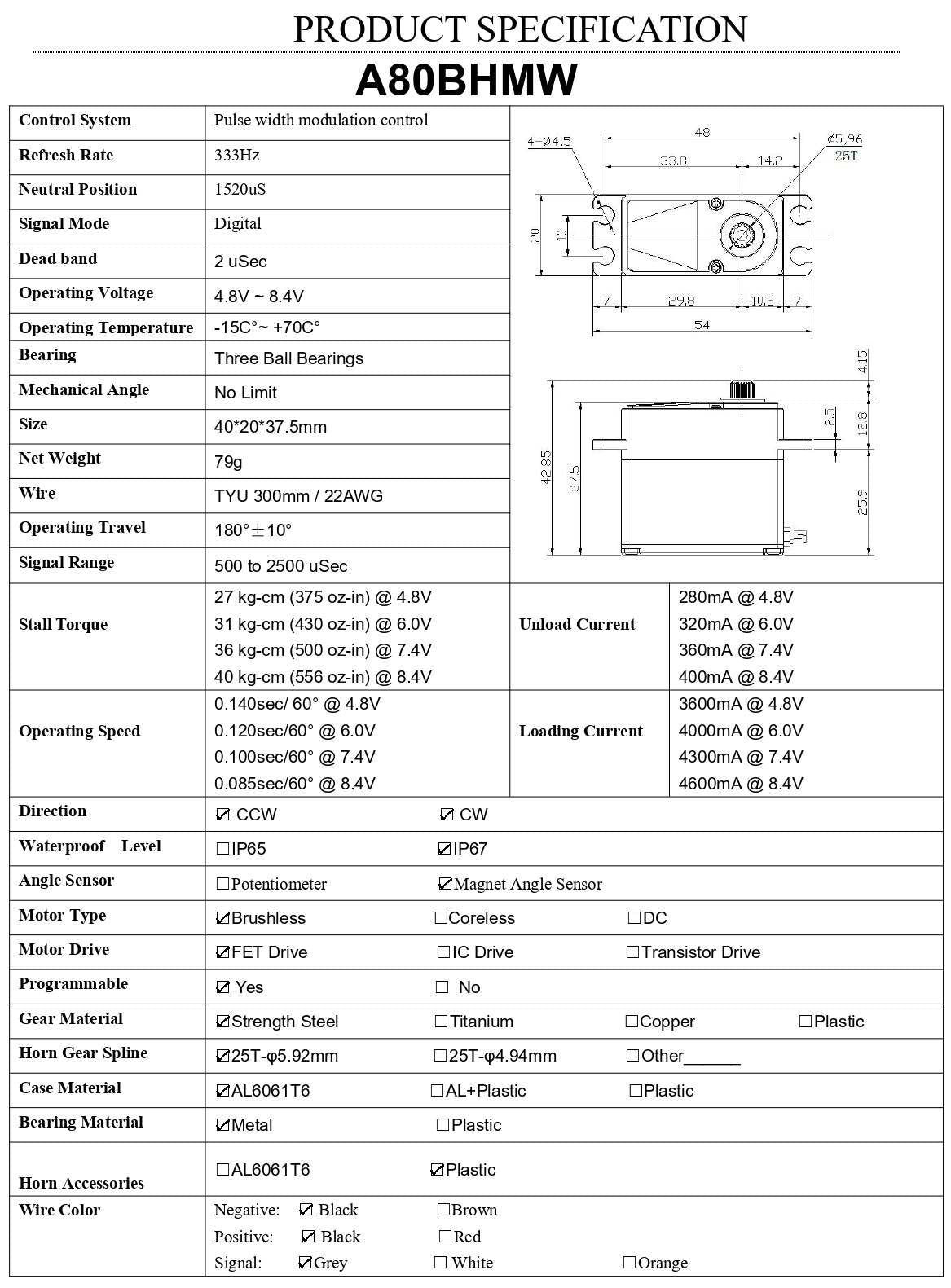

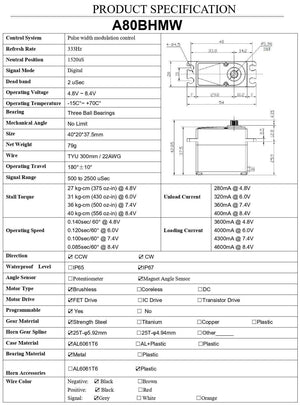

Specification

A80BHMW V2

Operating Voltage: 4.8-8.4 V

Operating speed: 0.120sec/60° @ 6.0V

Operating speed: 0.100sec/60° @ 7.4V

Operating speed: 0.085sec/60° @ 8.4V

Stall Torque: 31 kg-cm (430 oz-in) @ 6.0V

Stall Torque: 36 kg-cm (499 oz-in) @ 7.4V

Stall Torque: 40 kg-cm (555 oz-in) @ 8.4V

Gear: Steel

Motor: BLS

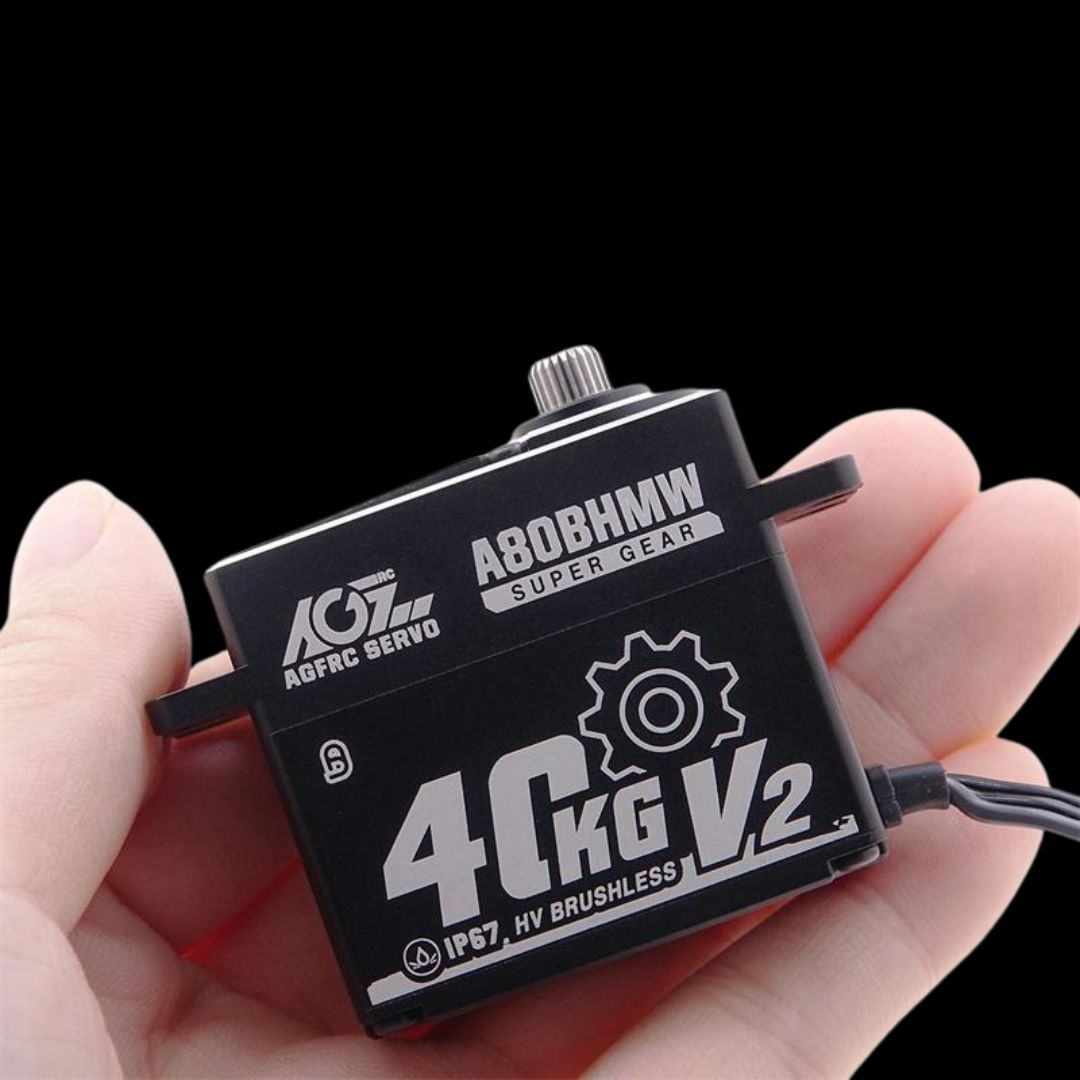

Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)

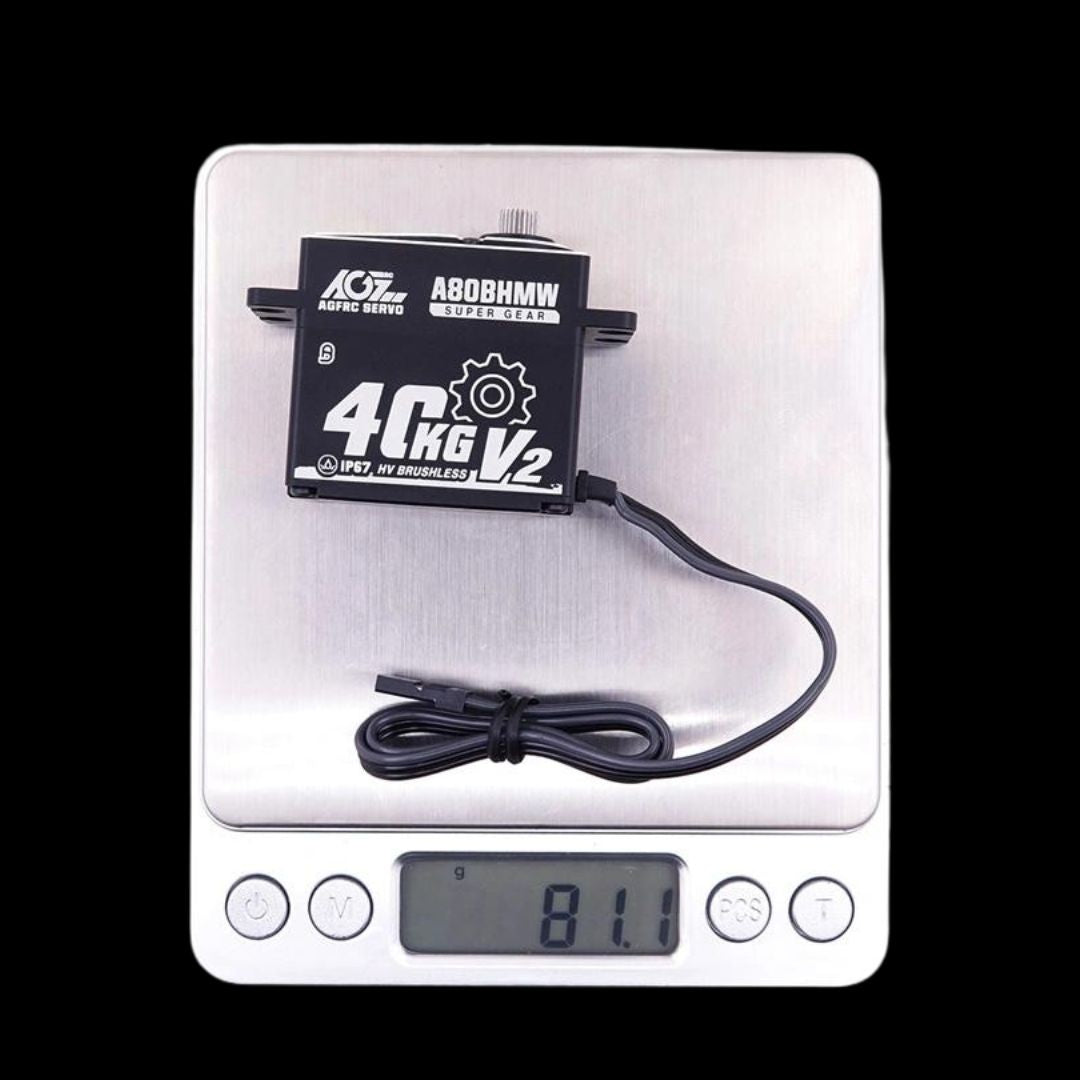

Weight: 81g

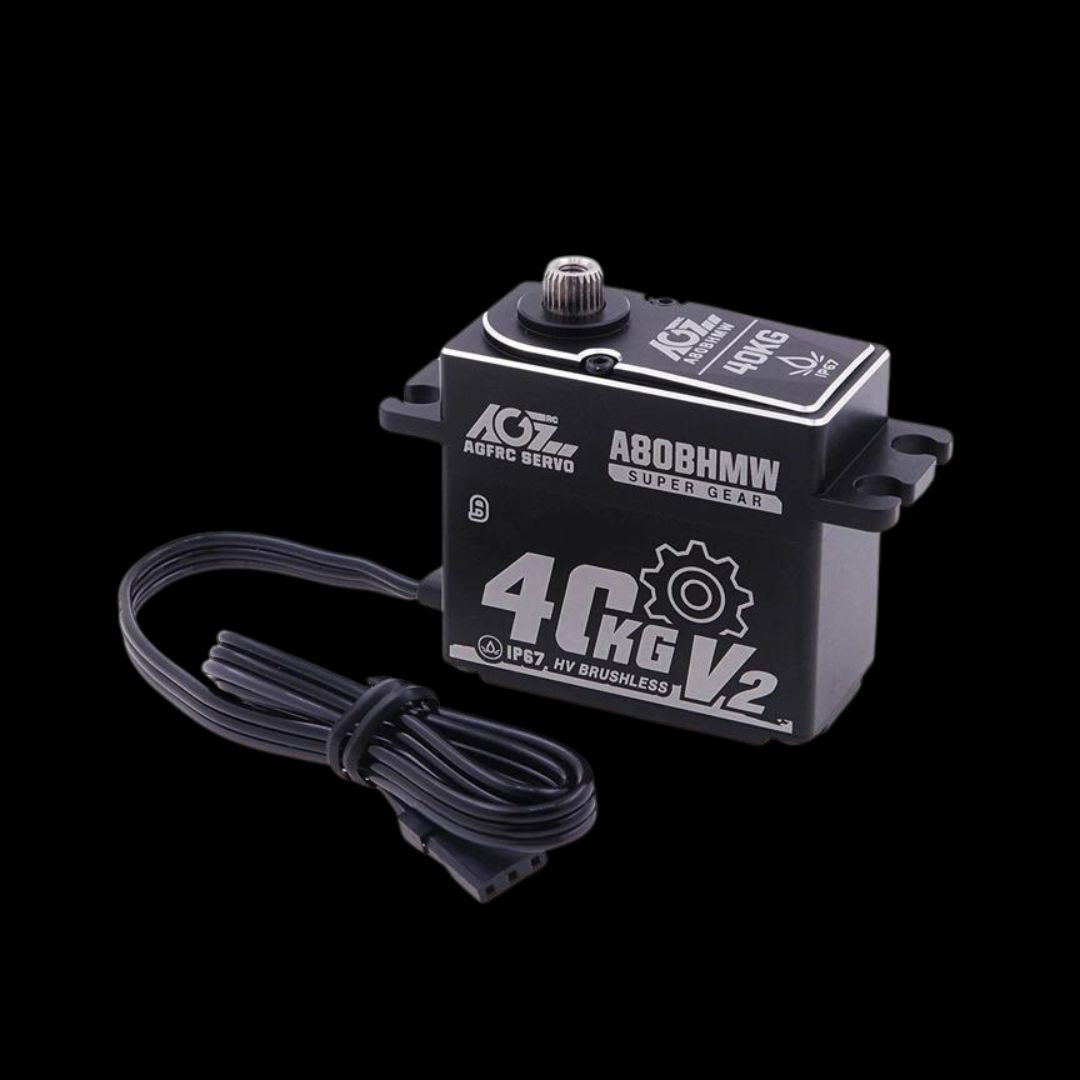

Connector Wire: TYU 300 mm / 22AWG
