M00522001: XR5 Competition Rolling Chassis

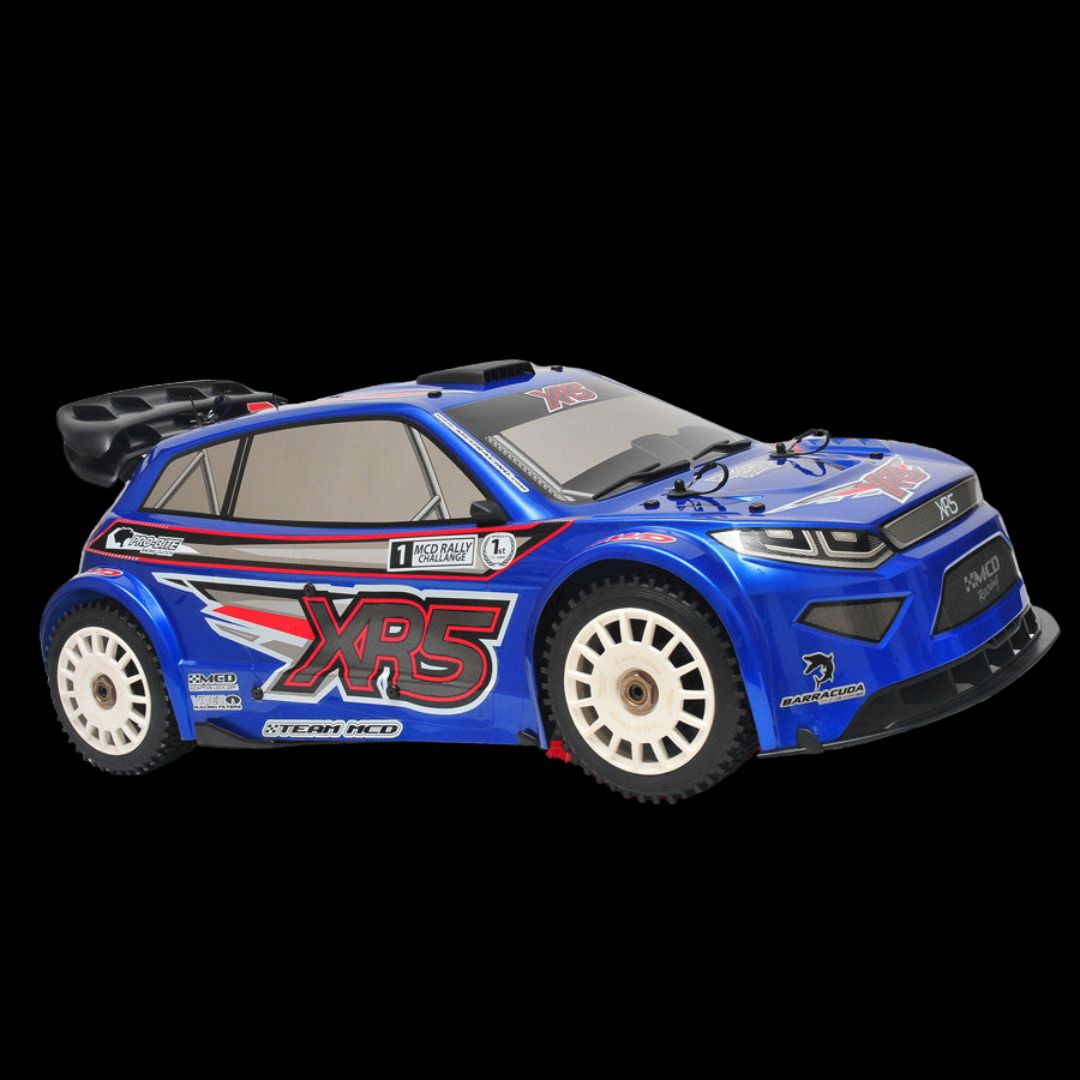

The XR5 Rally is the ultimate Rallycross experience built on the proven 5 series MCD Racing chassis. The XR5 is an expression of MCD’s meticulous approach to styling language unique to MCD Racing. Aggressive driving dynamics combained with superior handling characteristic are a result of MCD precision engineering capabilities.
The XR5 includes an ultra rigid roll-cage and equipped with the finest accessories & parts such as the rear diffuser, rear wing, side, front bumper, new 160mm (6.3 inch) super-grip low profile on-road tires and new 17 spoke high performance rims. The new Rossa HS on-road tires will be available in two different compounds; white and blue spot.
As this is a rolling chassis you will need the following to complete:
- 2-Stroke engine (TAYLOR 35cc Will make this fly!)
- Exhaust (barracuda fits nicely)
- Transmitter and receiver
- Steering and throttle/brake servo
- Receiver battery and charger
- On-Off Switch
- 2-Stroke oil
- Tools and polycarbonate paint
The XR5 Competition Features
- Top of the line competition Rallycross car
- Easy assembly/dis-assembly
- Easy maintenance

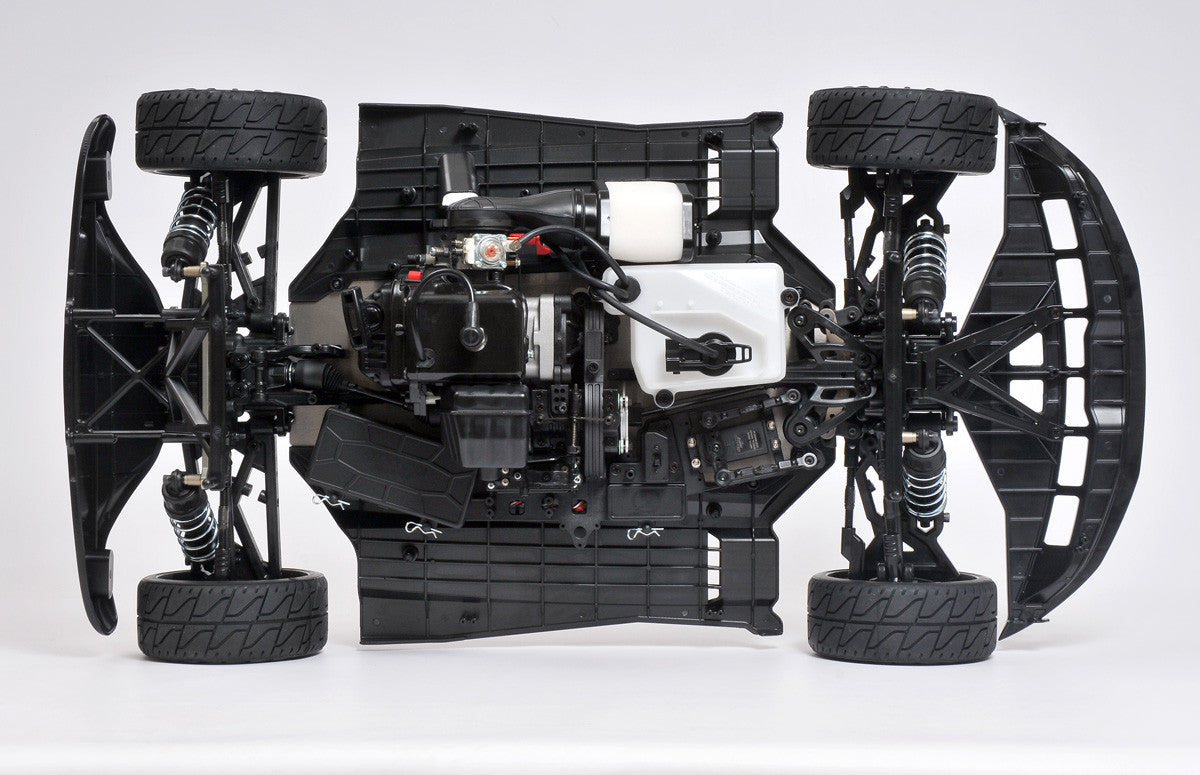

- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms
- Sophisticated full-time 4WD Shaft Driven mechanics
- Ultra strong CCD drive shaft and axle
- Easy gear mesh system
- Easily removable one-piece electronics tray

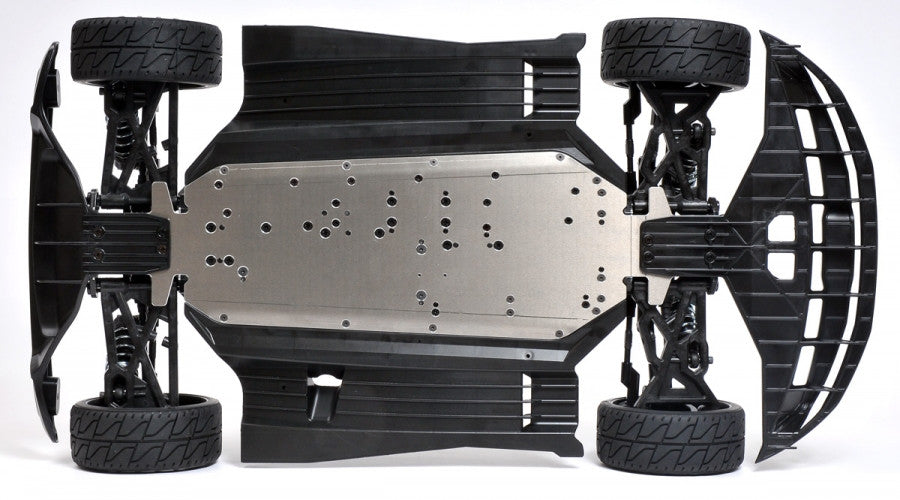

- CNC machined 5083 alloy chassis
- Strengthened wishbones
- Solid and durable aerodynamic side guards
- No-Stress-Effect polyamide front bumper

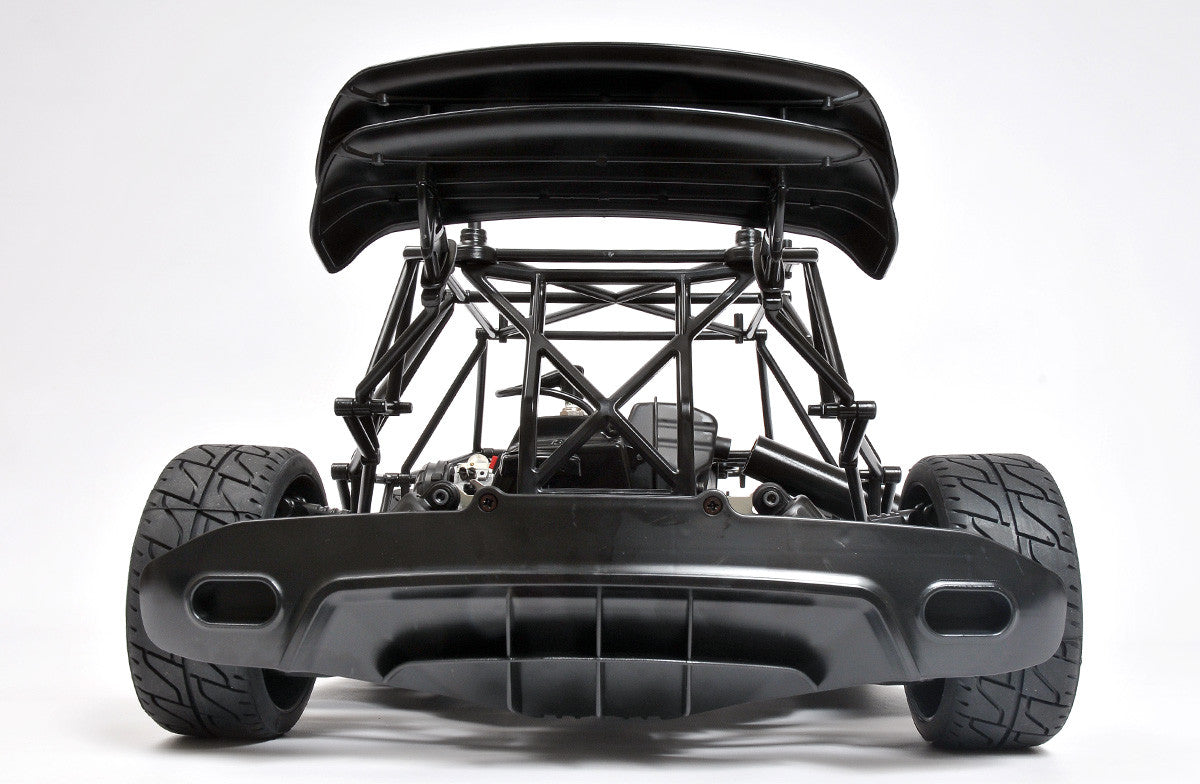

- Solid and durable rear diffuser
- Easily removable composite front, rear and center diff houses
- Ultra durable front and rear adjustable brake system
- Rear-brake only servo slot

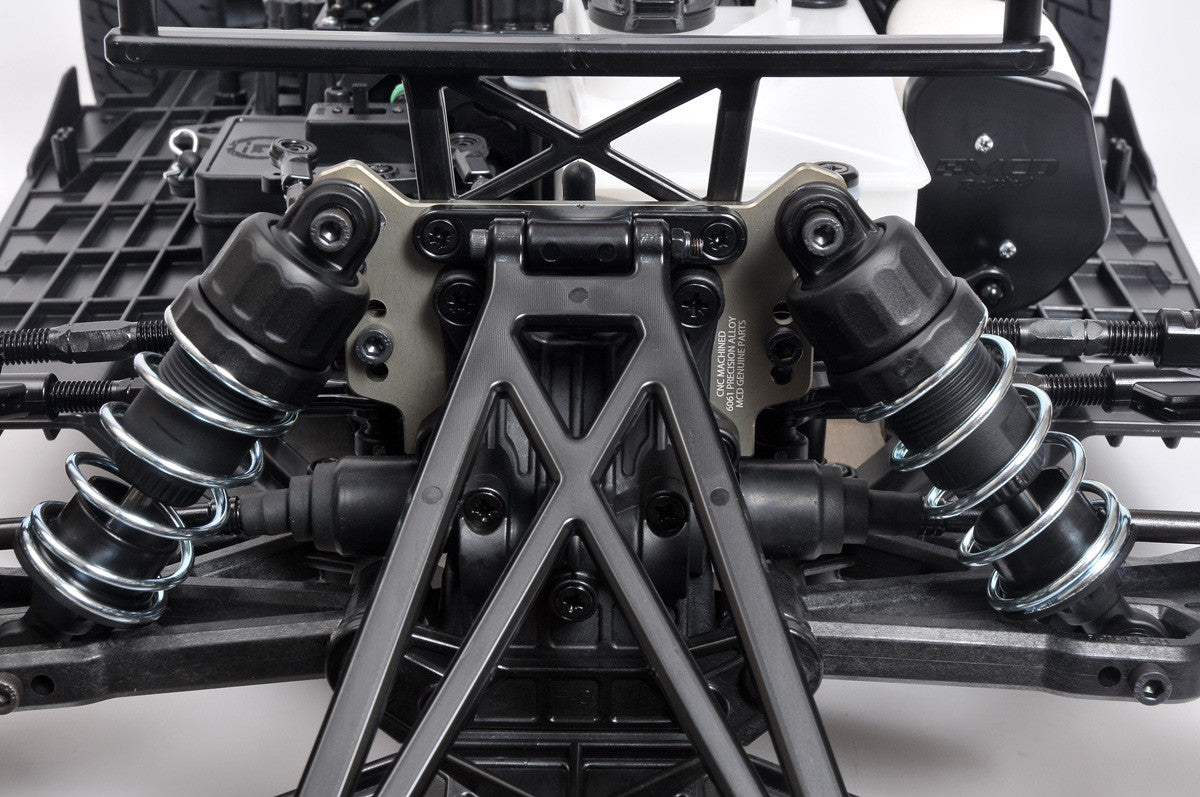

- 5 mm alloy front and rear towers
- Optimized multiple shock mounting holes
- Coil-over extended composite shock absorbers
- Ultra hardened steel transmission gears
- New ball cup-joints
- Improved brake linkage
- Super-Cooling V5 air ventilation system (Optional)
- Viper Racing Air Filters
- Barracuda G performance exhaust improved for V5 Chassis (Optional)
- Adjustable CG
- Adjustable weight distribution
- Molded fuel tank with shake absorbing separators

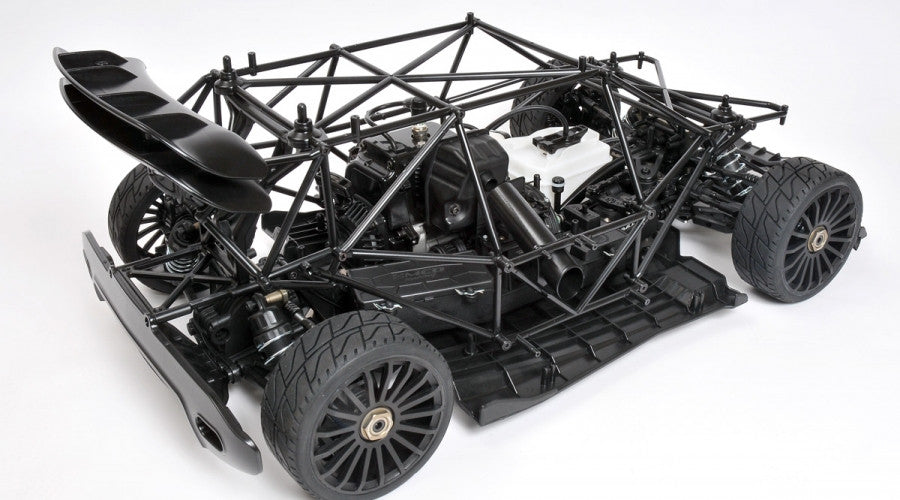

- Ultra rigid roll cage
- Fully composite body accessories
- Drive and shock shaft boot
| Technical Specifications | |
| Length | : 910 mm |
| Width | : 470 mm |
| Overall height | : 330 mm |
| Ground clearance | : 25-40 mm |
| Weight | : 15kg |
| Wheelbase | : 565 mm ±8 mm (adjustable) |
| Trackwidth |
: 402mm |
| Chassis material | : Alloy (4mm) |
| Suspension | : Non-parallel non-line independent |
| Caster angle | : 8° - 18° adjustable |
| Camber angle | : Adjustable |
| Toe angle | : In-board and out-board adjustable |
| Anti-squat | : 3° |
| Kick-up | : 8°-10° (adjustable) |
| Shock absorber | : Coil-over Oil-filled |
| Rear squat | : 5 Degrees |
| Transmission | : Full-Time 4WD Shaft driven |
| Gear ratio | : 7,88:1 (18 available 7,44:1 to 10,67:1) |
| Tyre size | : 65 x 160 mm (Rossa HS Ultra Grip Compound) |
| Engine type | : Zenoah - CY 26cc+ (not included) |
Required for operation (not included): Engine, exhaust, 2 ch. Radio, steering servo and throttle/brake servos

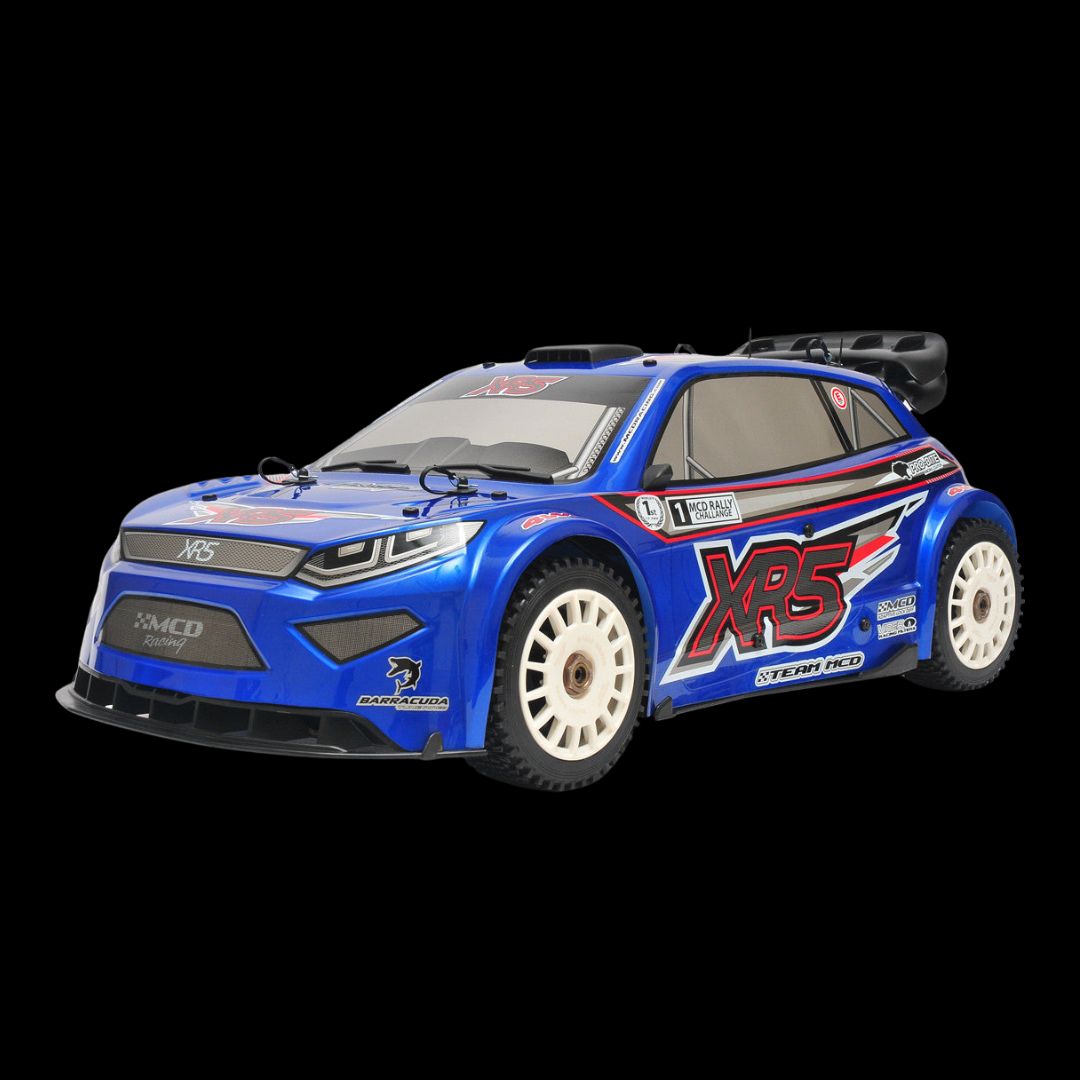

Cars come with a clear body and basic decal set, they may differ from the images on this page.
