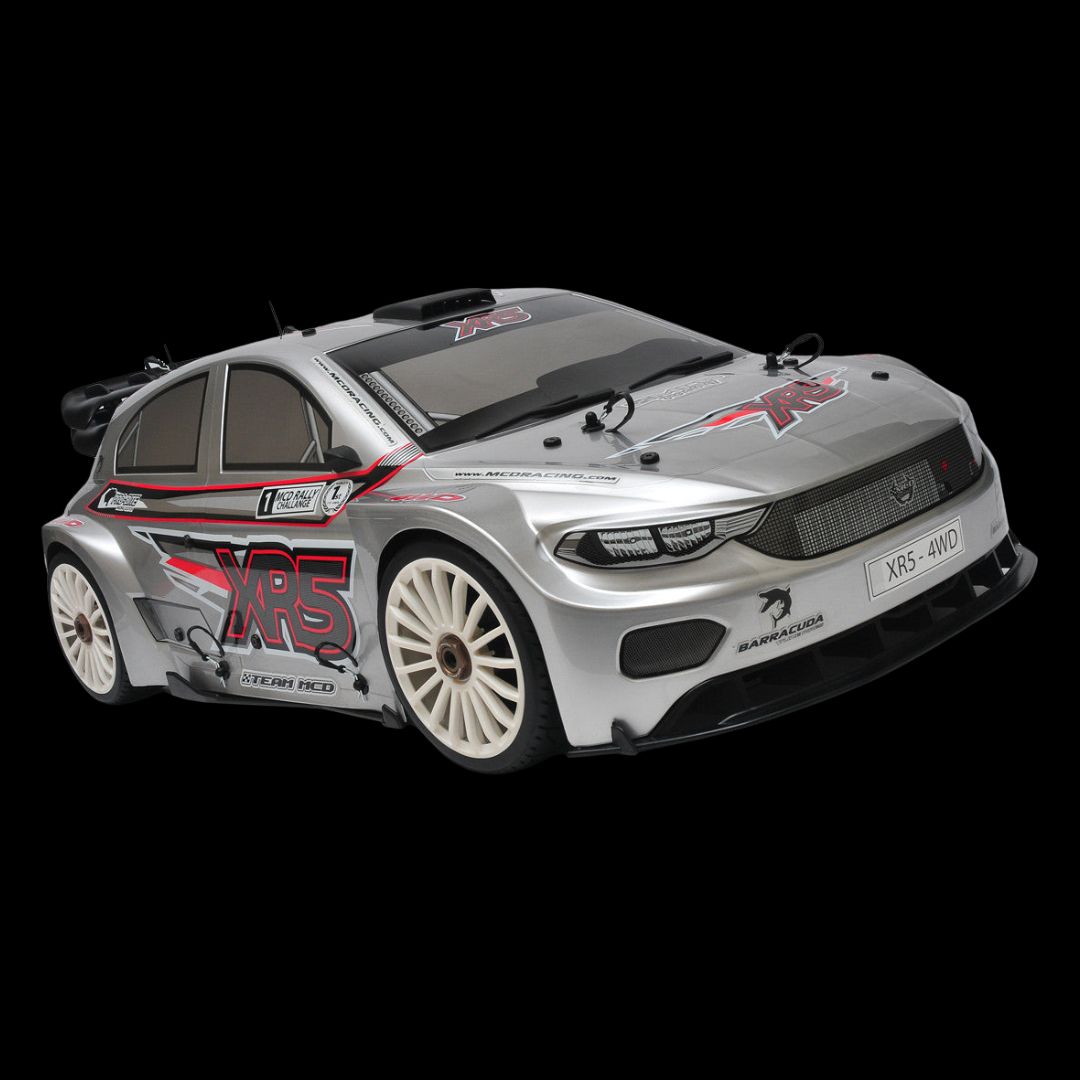

MCD XR5 Max Pro - "Big Bore Roller"

This is a special "BIG BORE ENGINE READY" Rolling Chassis setup made for TAYLOR RC. The car comes without the Barracuda exhaust and 54mm Carrier/Bell which are no use to big bore customers.

But it comes with the 60T MCD Spur gear pre-installed to suit big 28-36Tpinions.

So its ready to drop in your big bore engine package and get ripping some trenches!

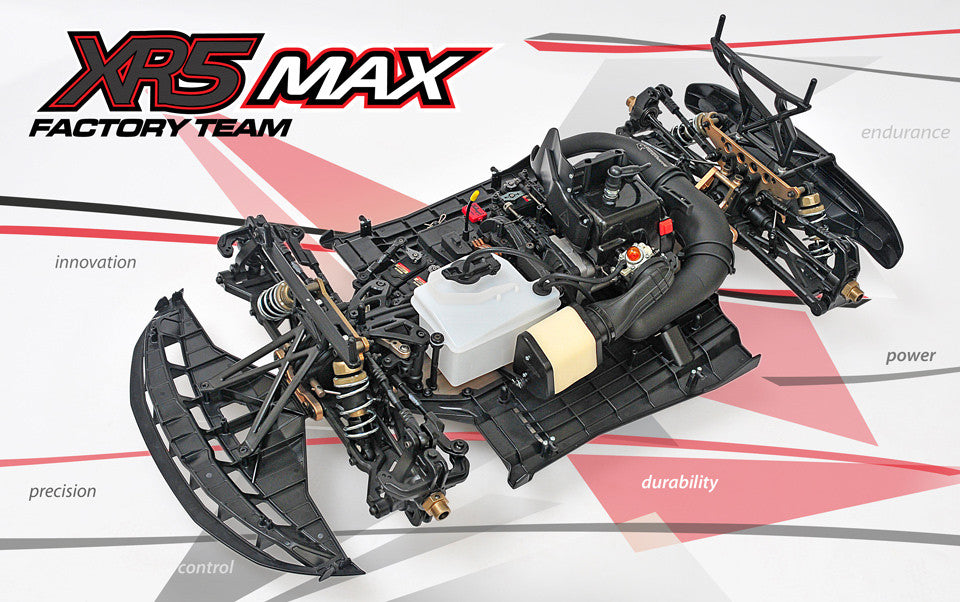

Introducing the latest MAX Pro version of the popular XR5 Max from MCD Racing.

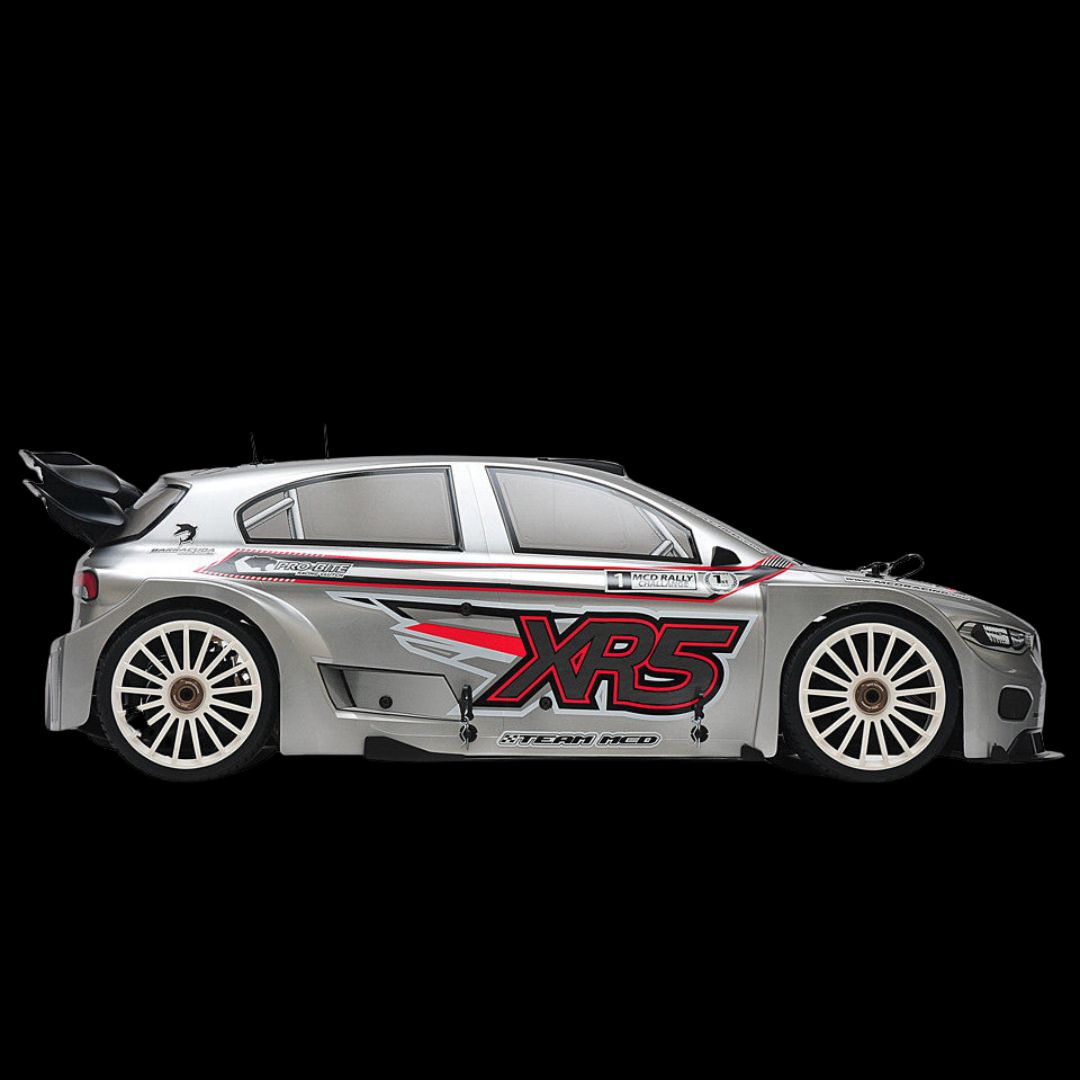

This true 1/4 scale streamlined Rally car is modelled on modern WRC cars and features the new 610mm wheelbase chassis and transmission used by the popular W5 Max and RR5 Max models. As this is a Max Pro model it features a host of tune-ups and high specification as follows:

Max Pro Fitted Upgrades:

  • Now includes Alloy Shock Bodies
  • CNC 4mm Extended Wheelbase 7075 Alloy Chassis #400103A
  • New Design Bodyshell #503801P
  • CNC Alloy Rear Chassis Stiffeners #445202A
  • CNC Alloy Layshaft Carrier # 415402A
  • New CNC Alloy Shock Towers #430401A + #430301A
  • CNC Alloy Rear Wishbone Holders #300303A
  • CNC Alloy Front Wishbone Holders #300203A

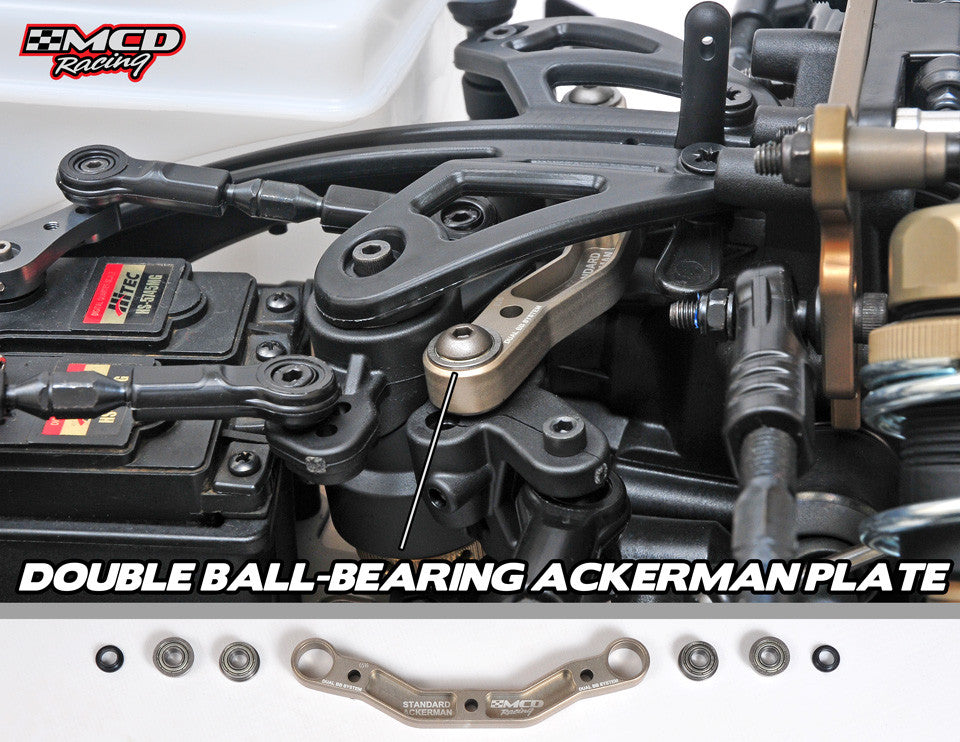

  • CNC Double Ball Bearing Ackerman Plate #380203A
  • CNC Alloy Clutch Bell Carrier Set #415502A
  • CNC Alloy Shock Bodies #322102A

Specifications:

  • Length: 1010mm
  • Width: 480mm
  • Overall Height: 325mm
  • Ground Clearance: 25 - 42mm
  • Weight: 14.8kg
  • Wheelbase: 610 - 620mm adjustable
  • Trackwidth: 410mm
  • Chassis Material: 7075 Grade Anodized Aluminium. 4mm
  • Suspension: Non-Parallel Non-Line Independent
  • Caster Angle: 14 Degrees. Adjustable from 6 to 16 with optional parts.
  • Camber Angle: Adjustable
  • Toe Angle: In-Board and Out-Board Adjustable.
  • Anti-Squat: 3 Degrees. Adjustable via inserts.
  • Rear Squat: 5 Degrees. Adjustable via inserts.
  • Kickup: 8 to 10 degrees Adjustable
  • Shock Absorbers: Oil Filled Coil Overs with High Pressure Cell System.

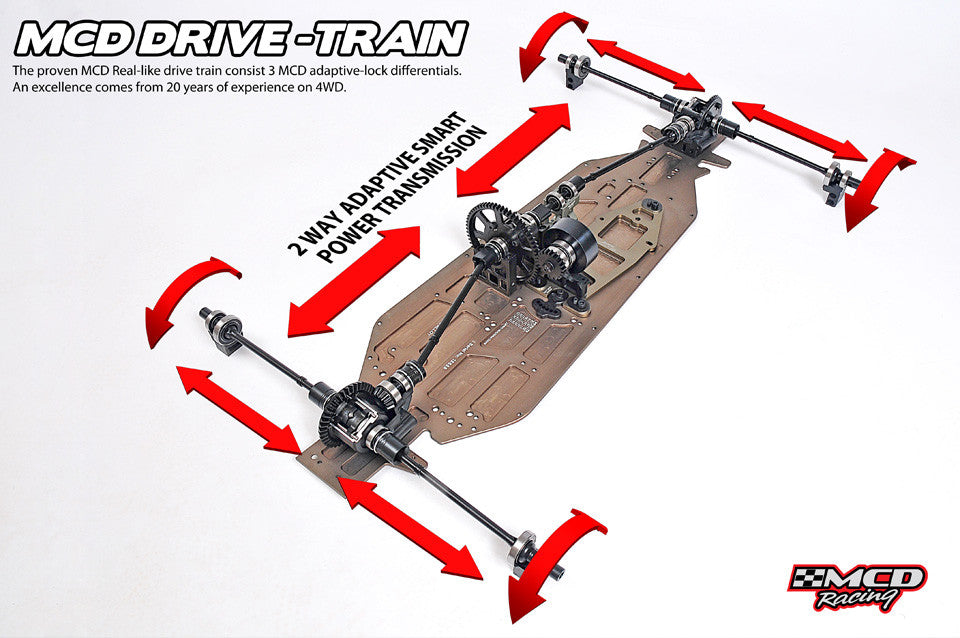

  • Transmission: Full Time 4WD with Front LSD, Locked Centre and Comp Rear Differential.
  • Gear Ratio: 7.88:1 with 18 ratios available from 7.44 to 10.67

Supplied as a Roller and requires the following items to complete:

  • 2 Channel RC System

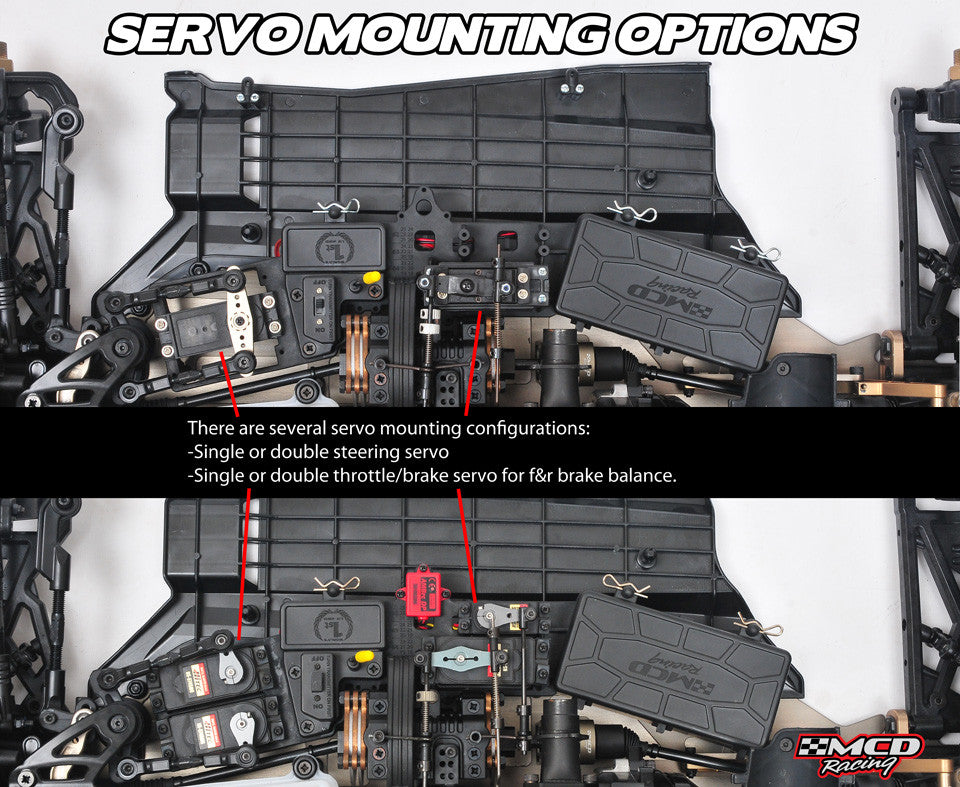

  • Steering Servo
  • Throttle/Brake Servo
  • Battery
  • Switch

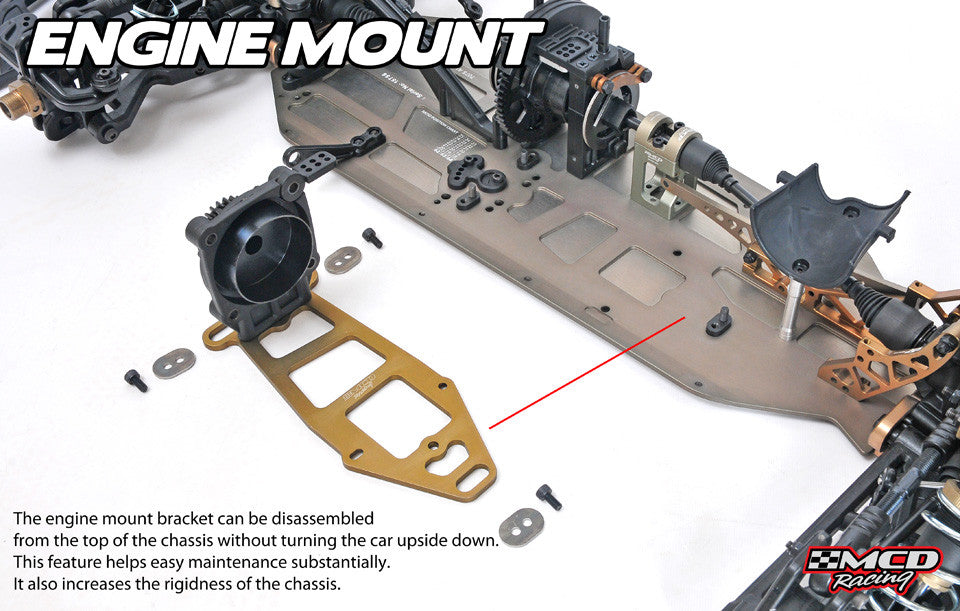

  • Big Bore Engine package with custom engine plate for tall gears etc as supplied by RCMAX and its competitors.
  • Polycarbonate paint for the bodyshell
