AGF-RC A50BHLW-A 19.0kg 0.073 Hi Sp IP67 LP Servo

AGFRC A50BHLW Servo 19KG Torque 0.073Sec Hi Speed CNC Case Brushless IP67 Waterproof Programmable Low Profile Servo Ideal For 1/10 RC Drifting Car

Item Name : A50BHLW

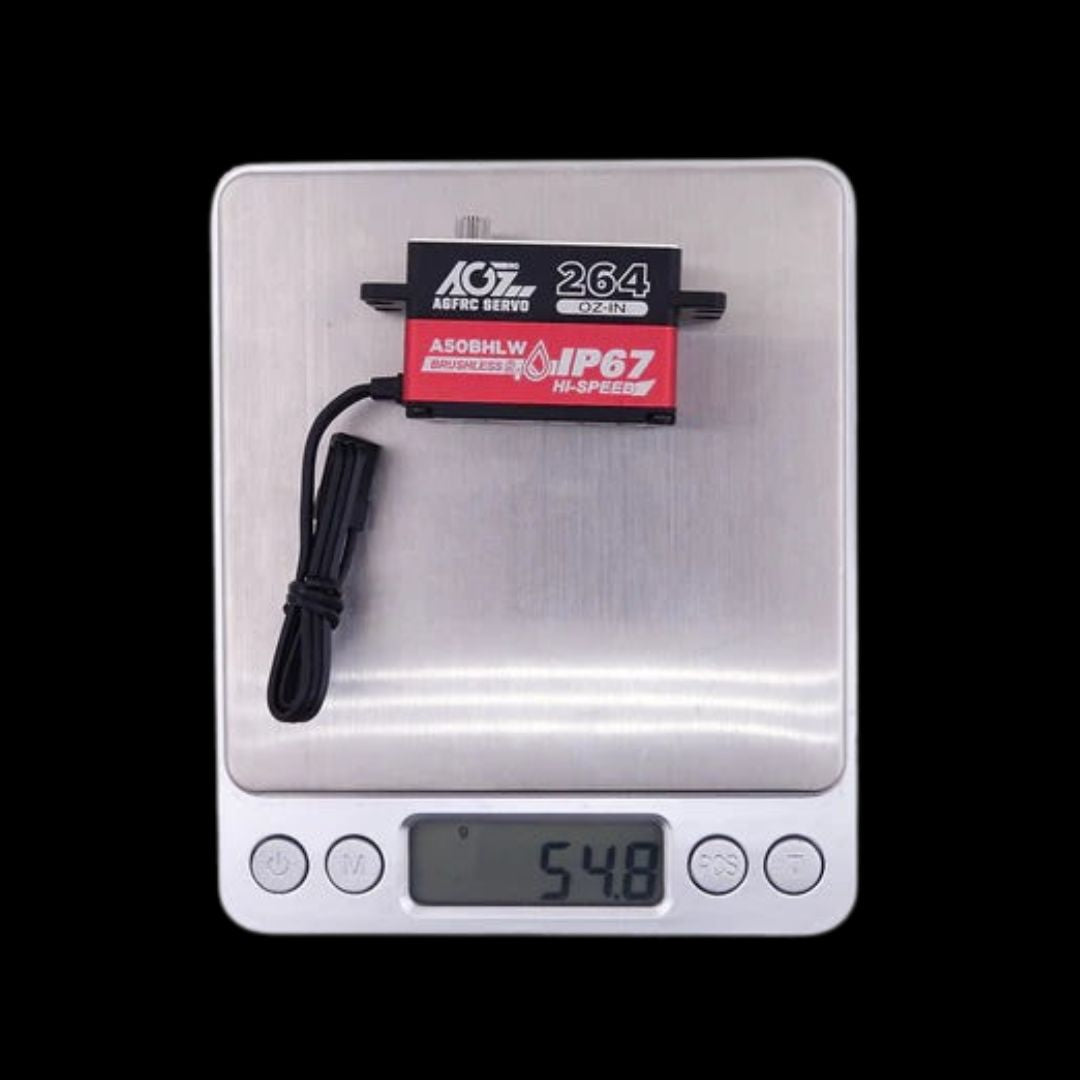

Weight : 51g
Voltage : 4.8-8.4V

Application:
RC Car, Truck, Boat, Airplane, On Road, Drift Car, etc.

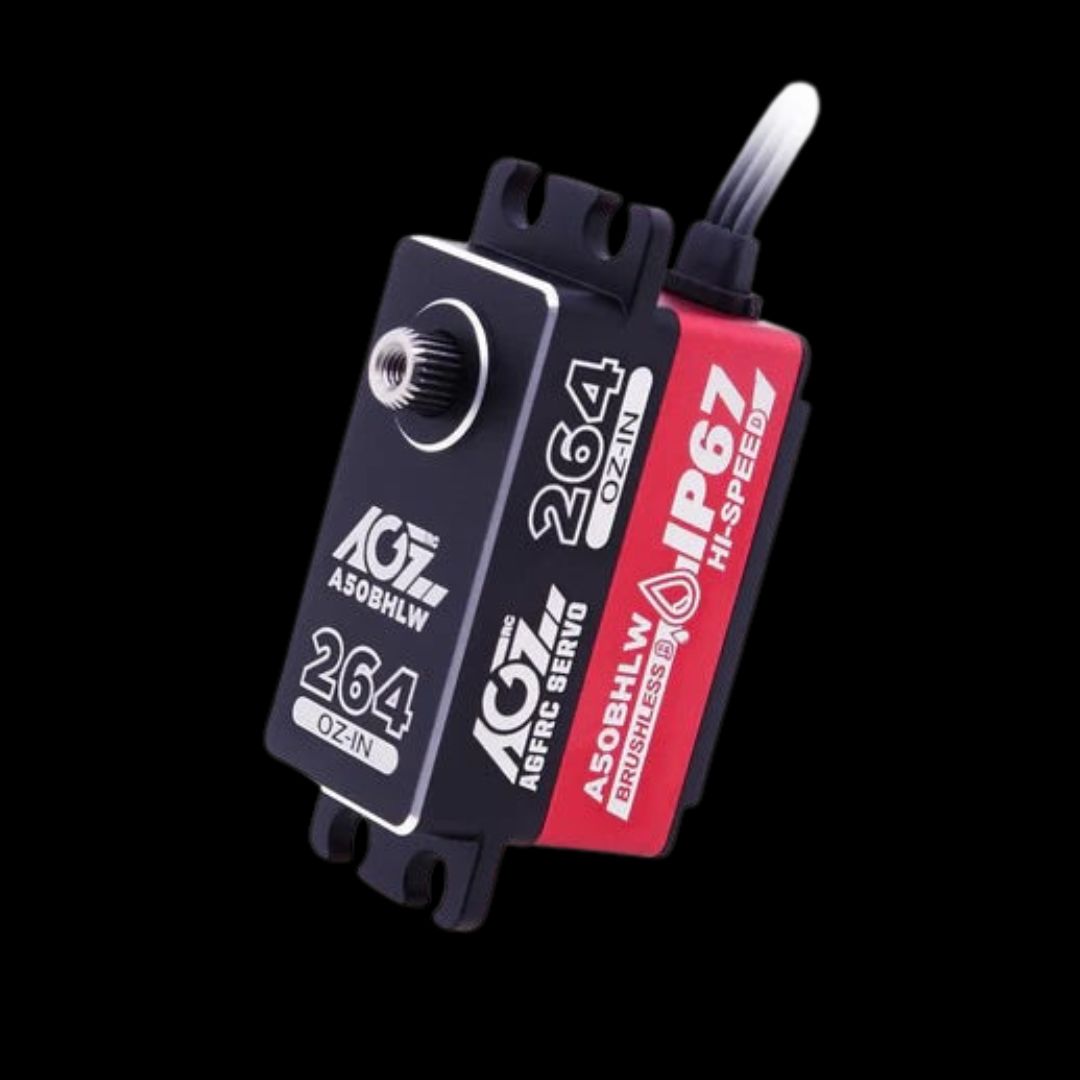

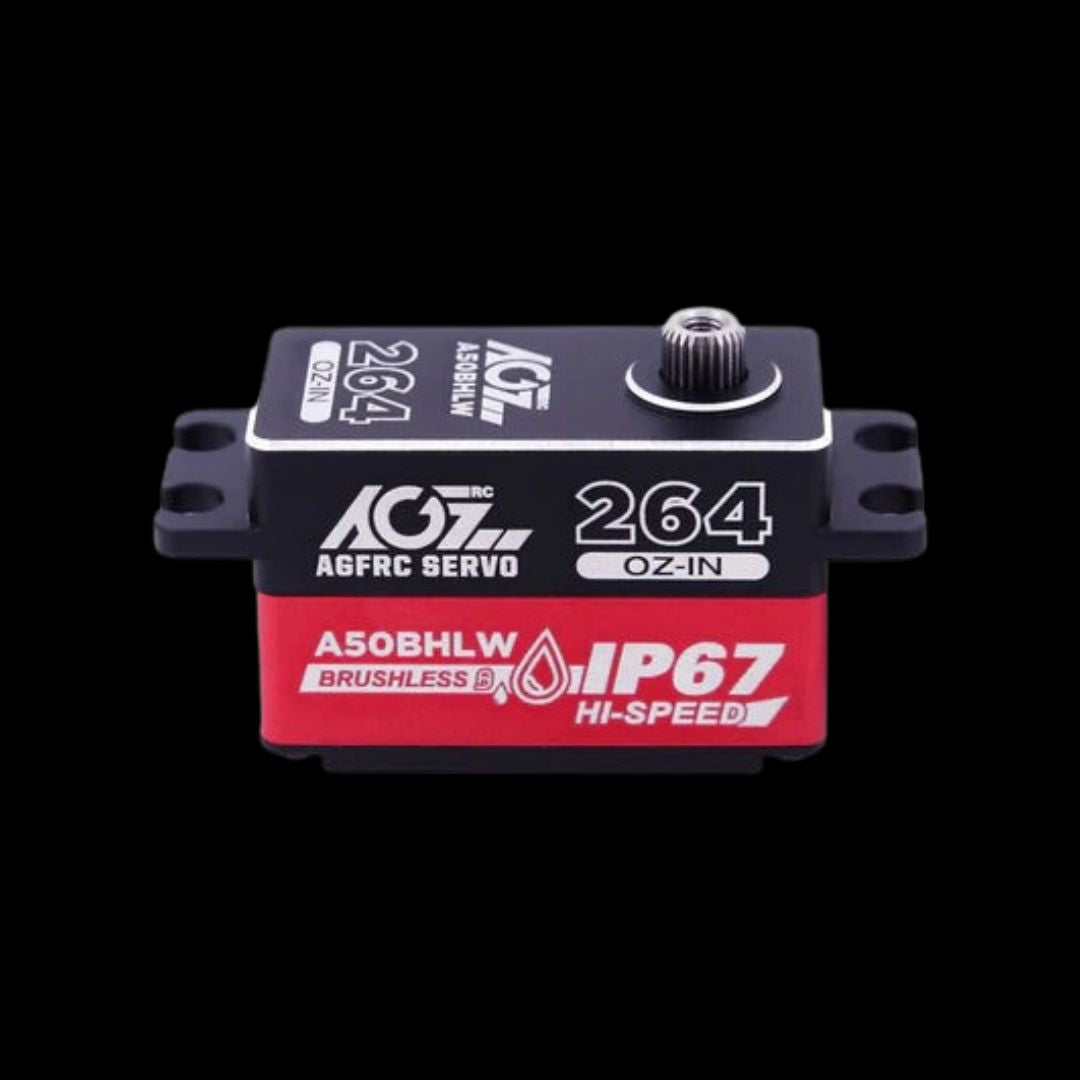

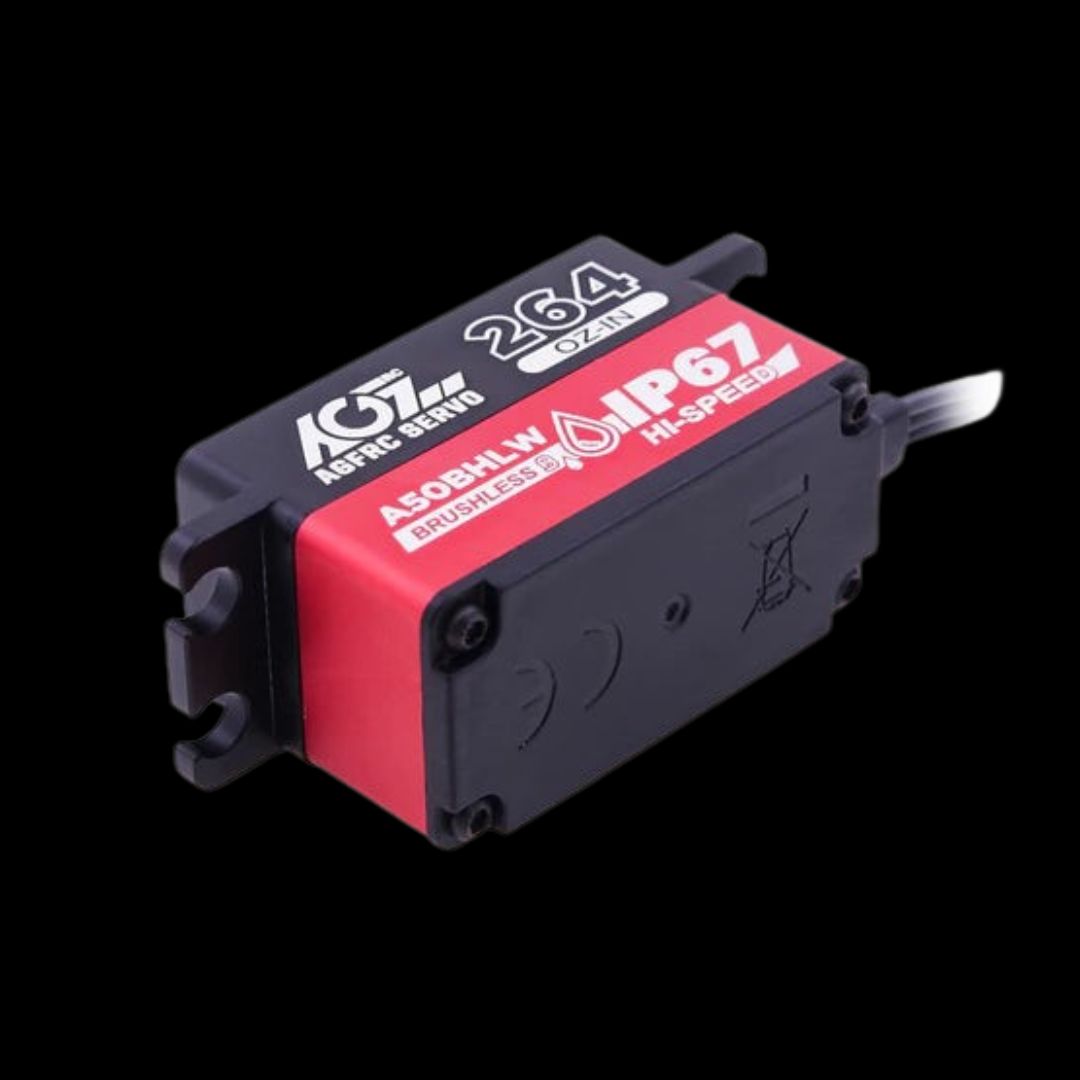

A50BHLW high performance low profile digital servo is a waterproof version of A50BHL. It adds an IP67 magnetic waterproof function on the basis of A50BHL, which is very suitable for humid and drizzle environments. Allow RC hobbyist have more choices. It uses exquisite CNC case design, black and red colour, very beautiful and functional. 19KG torque and 0.073Sec high speed, With high-quality brushless motor and super silky double bearings. Ideal for 1/10 1/12 RC On Road, Touring, Drifting Car, Airplane, Boat, Robot etc.

Features

• High Performance Low Profile Digital Servo
• Magnetic Sensor Waterproof IP67
• High Precision Steel Gear
• High Quality Brushless Motor
• Reliable Dual Ball Bearing
• 8.4V High Voltage Compatible
• Programmable Digital Circuit
• Aluminium Top and Medium Part

Ideal for 1/10, 1/12 On Road, Touring & Drifting Car, Drag Race Car, Airplane, Boat, Robot etc.

Specification

• Item: A50BHLW
• Operating Voltage: 4.8-8.4V
• Operating speed: 0.095sec/60° @ 6.0V
• Operating speed: 0.083sec/60° @ 7.4V
• Operating speed: 0.073sec/60° @ 8.4V
• Stall Torque: 16 kg-cm (222 oz-in) @ 6.0V
• Stall Torque: 18 kg-cm (250 oz-in) @ 7.4V
• Stall Torque: 19 kg-cm (264 oz-in) @ 8.4V
• Gear: Steel
• Motor: BLS
• Size: 40.8*20.2*26.5mm (1.60 x 0.79 x 1.04 in)
• Weight: 51g

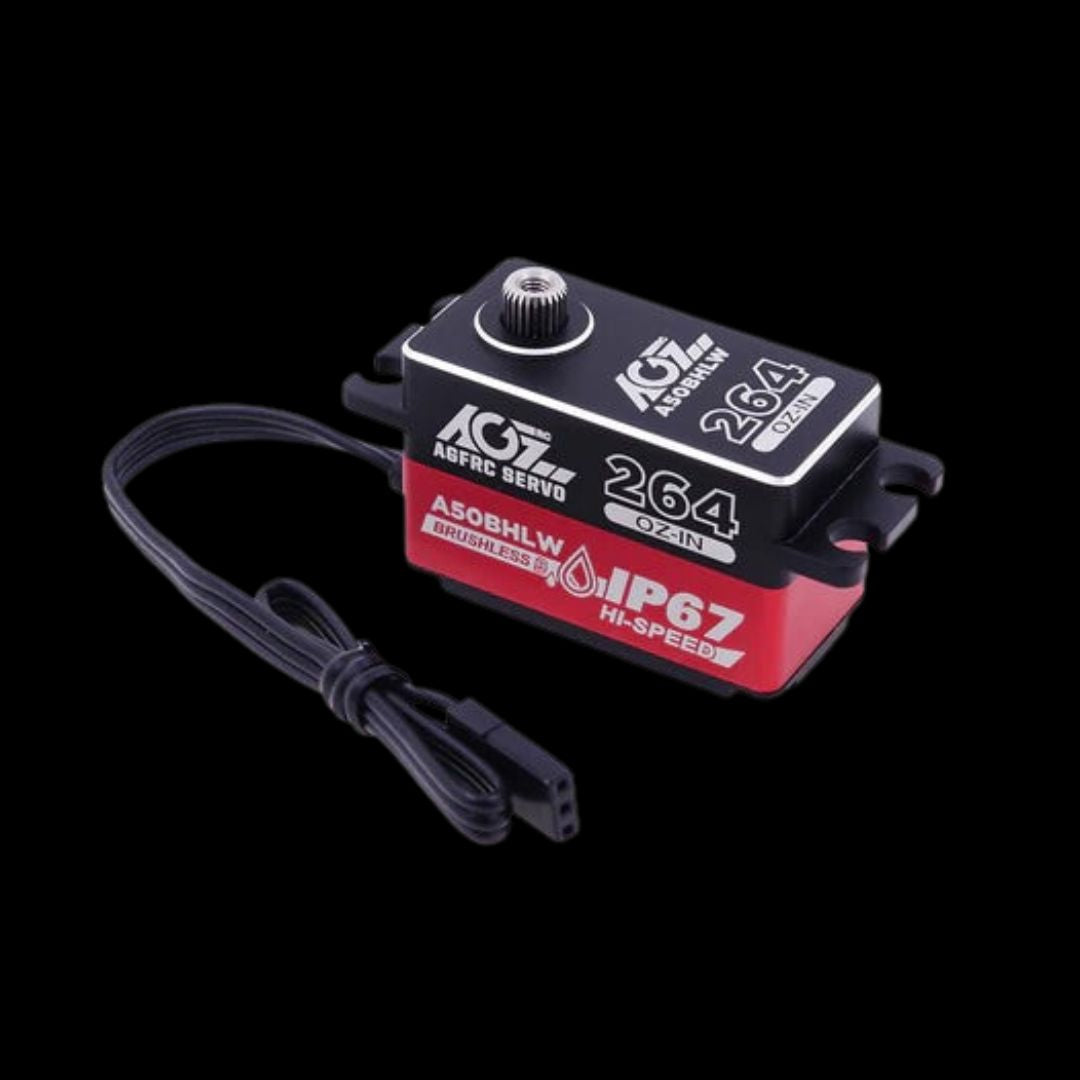

• Connector Wire: JR 180 mm /22AWG
