IRC UHD Stock Shafts for TAYLOR Hex-lock

£95.00 GBP

×

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.


IRC UHD Stock Shafts for TAYLOR Hex-lock

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

Question about this Product?

Free Delivery on all orders over £200

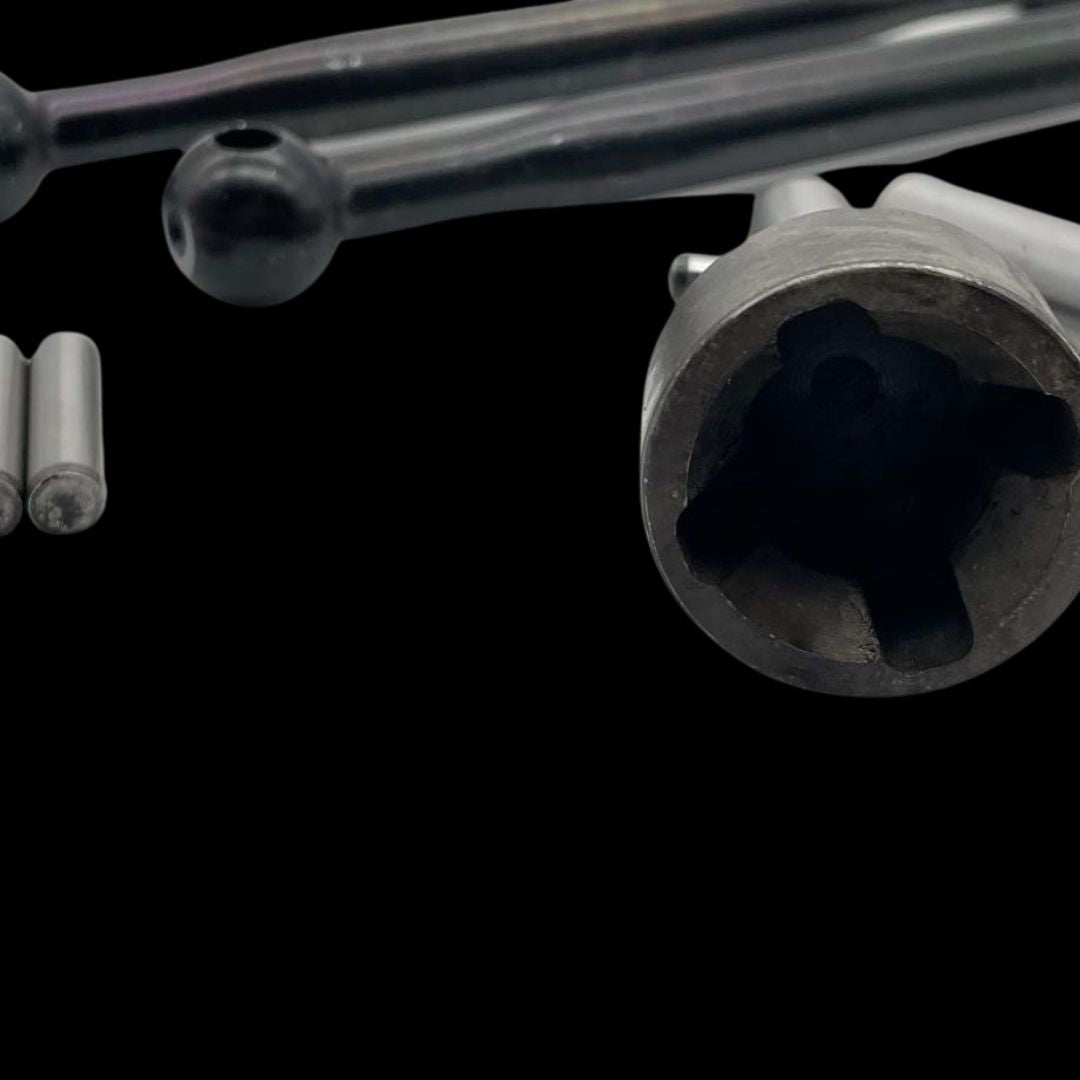

IRC UHD Stock Shafts for TAYLOR Hex-lock

THIS SET DOES NOT COME WITH INNER CUPS - MADE TO SUIT THE RCMAX HEX-LOCK KIT WHICH COMES WITH THE MATCHING HEX DRIVE INNER UHD CUPS.



UHD STOCK Length Innovative-RC dog bone Set for HPI baja or Baja/Losi Hybrids like the OUTLAW kit.

5MM WHEEL HUB PIN VERSION - FOR BRP HUBS OR DRILL OUT YOUR STOCK HUBS - This is an essential upgrade for running powerful engines



These Extended Length shafts includes Drive cups (inner & outer) shafts having an 18mm ball size giving these a very strong ball area fot running the new 1/4" pin size , while still mainting a good weight to strength ratio, middle section has been increased to 12mm also while using a high grade tensile steel for much more core added strength and durability, more so when it comes to running larger engine sizes (46cc +). these new UHD versions have been made with the large CC engines in mind for standard car models (baja RTR,SS etc), hybrids and the likes etc.
These are the extended drive shaft sets made for extrended a-arms for baja and hybrids. pin center length 149mm, (~33mm extended over standard length)



All steels are made from British grade high tensile EU sourced and coustom heat treated for a final product.

Drive cups
Made to the same out side sizes as the HPI baja 5SC cups so any drive boot designed to work with 5SC cups will fully work with these cups still.

Shafts & cups are made from British grade high tensile heat treated steels. now also having a fully hardend 1/4" pin (6.5mm) for the drive line over the old 5mm version, giving more added contact surface with out sacrificing strength in the cup or dog bone design.


Hardend and ground drive pins which run in enclosed cups on a floating design.


Sold as a set of 2x dog bones & cups.(completes 1 car)

  • Can be a driect replacment for standard part #104966,104967,104965

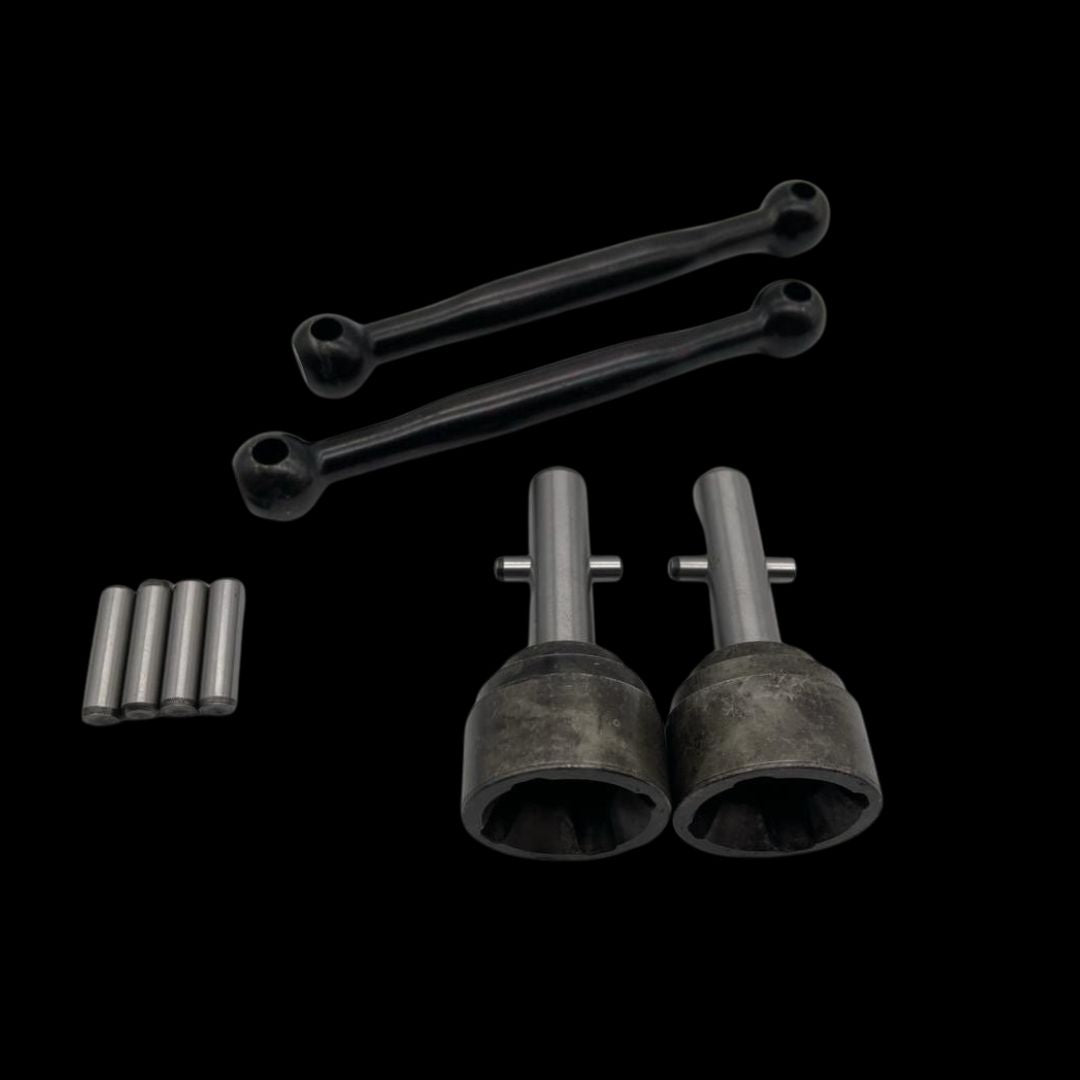

Included:
2x UHD Stock Innovative-RC Dog Bones
4x 1/4"x1" drive pins
2x out drive cups
2x 5x24 H&G Pins
2x M4x10 Socket cap screw

Lifetime warranty against breaking
