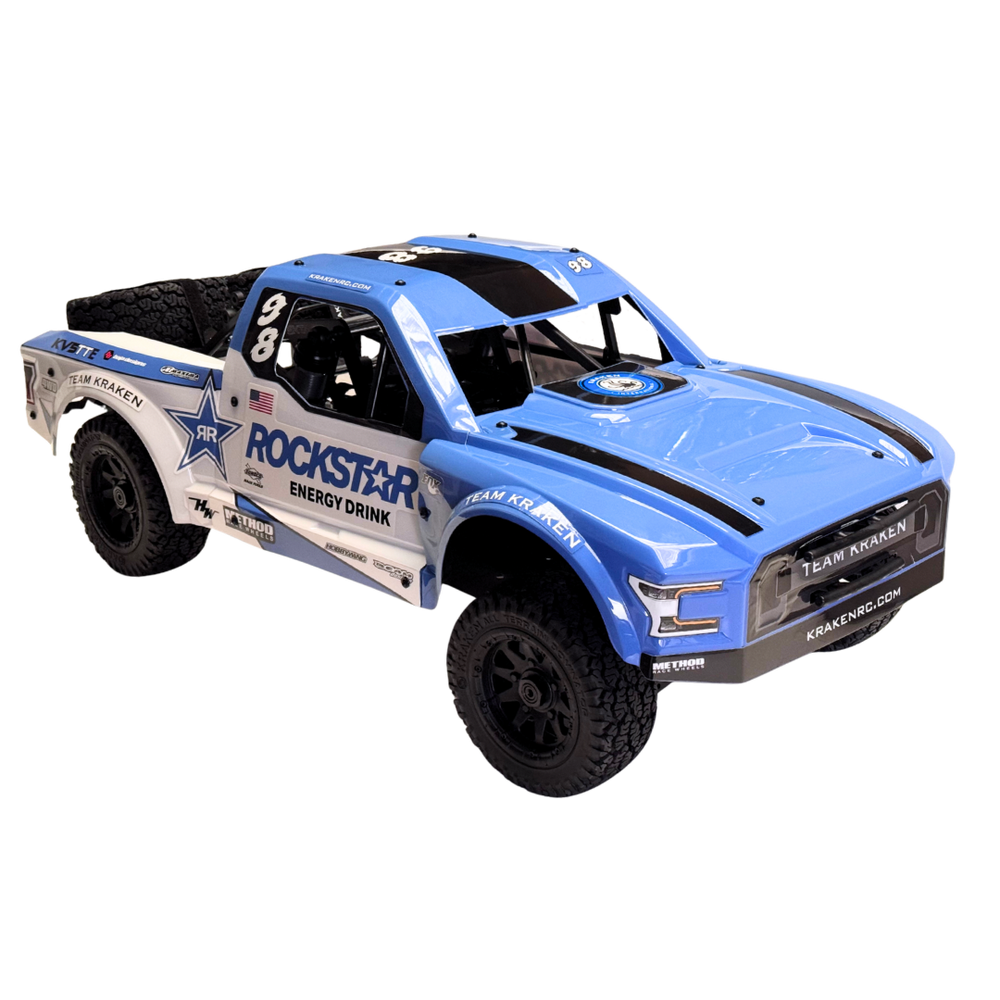

Kraken KV5TTE Electric Roller [KT7712]

THE KRAKEN KV5TTE ROLLER - A POWERFUL AND BOLD BRUSHLESS ELECTRIC OFF-ROAD RC! READY FOR YOUR BRUSHLESS KIT!

The KRAKEN KV5TTE is a Brushless Electric capable 4WD platform from KRAKEN RC. Seven years ago, we introduced the gas version of the KV5TT, and it became an instant sensation worldwide. Now, with the KRAKEN KV5TTE, we are stepping into a new era of clean, renewable energy.

Welcome to the FUTURE!

We have completely redesigned the V3 Rear Axle, reducing its weight and adding new features to handle the immense power of the brushless motor. The KV5TTE is a ready-to-go, plug-and-play roller. All you need to provide is your own pinion, ESC/Motor, radio and LIPO Batteries. You can use pinion size from 16-20T (Mod 1.5).

NEEDED TO COMPLETE:

• ESC
• Brushless Motor
• Radio
• LIPO Batteries



FEATURES:

• Roller is equipped everything you need for a Brushless Electric set-up
• New V2 Thicker Body  (1.5mm)
• ESC plate designed for Hobbywing Max4
• Perfect fitment for Hobbywing 70125 560KV Motor
• Optional 16-20T pinion capable set-up
• New transmission design with easy gearing access and is completely sealed (CNC)
• Brand new Currie F9 inspired V3 Rear Solid Axle (CNC)
• Paddle straight shafts (pinless) for direct engagement and power
• Large capacity battery plate with 10 Velcros straps for extra security
• Kraken HV560 60KG Servo comes included
• Full Roll Cage
• Front: Independent Front Suspension
• Rear Trailing Arms (Billet Aluminum CNC)
• 4 LINK Suspension
• All Around CVDs
• All metal diff housing
• Hardened transmission gear
• Telescoping universal drive shaft
• Hard Anodized 38mm MegaShocks with 8mm shaft

PRODUCT SPECIFICATIONS:

• Type: Desert Trophy Truck 4WD
• Power: Brushless Electric
• Scale: 1/5th
• Length: 39 in (999mm)
• Wheelbase: 23.94 in (608mm)
• Width: - 18.72 in (475.45mm)
• Height: - 14 in (355.6mm)
• Battery Box Dimensions L: 120mm W: 51mm H: 47.5mm
• Ground Clearance: 1.97in (50mm) adjustable to 3.98in (100mm)
• Weight: 41.5 lbs (18.8 kg) - With Motor minus rear spare wheels and tires
• Main Chassis: 5mm thick 6061 T6 aluminum
• Suspension: 2 Front-Wheel Independent with Rear Solid Axle
• Drivetrain: 4WD - Front and Rear Differentials with Center Transmission
• All Metal Center Transmission with adjustable slipper clutch
• All metal gears in the differential housing
• Tire Type: All Terrain Dominator, heavy threads for long wear. Medium compound
• Wheel Size: 7.32x2.91 in  (186x74mm)
• Gear Ratio= 1:10.079



For Digital Manual 32MB PDF - CLICK HERE
