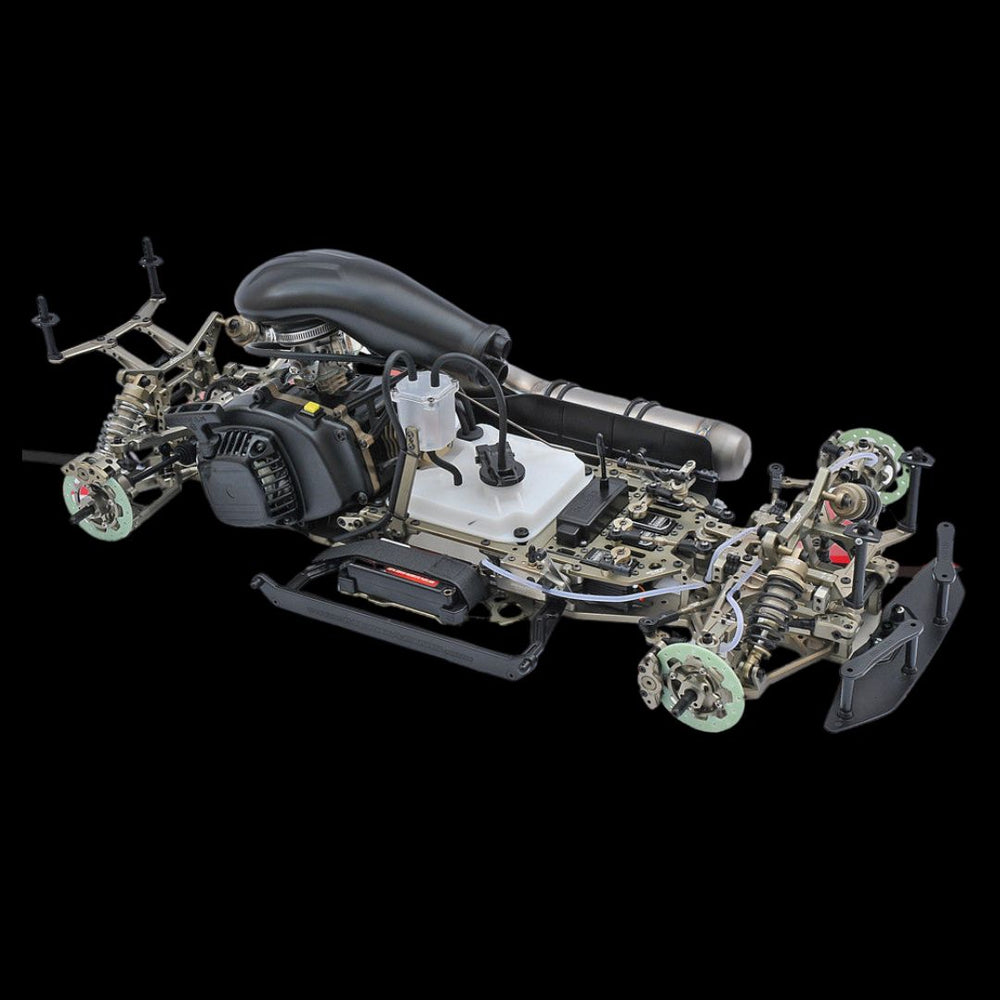

MCD DUOX 2WD Rolling Chassis with Hydraulic Differential & Airbox
MCD DUOX 2WD Rolling Chassis with Hydraulic Differential & Airbox is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Question about this Product?
Question about this Product?
MCD DUOX 2WD Rolling Chassis with Hydraulic Differential & Airbox
M00621001 - MCD DUOX 2WD Rolling Chassis Including Hydraulic Differential & Airbox
The MCD DUOX is an outcome of their passion to take on a new innovation challenge to create the ultimate 2WD large scale touring race car in the field. While developing the DUOX the main focus was to never compromise on racing capabilities. They wanted you to have the most reliable driving and maintenance experience possible. This version includes the hydraulic differential, airbox, and hydraulic disc brakes.
Racer Centred Features
DUOX is a result of a 3 year intense development period. Massive care was put into maintaining the core character of our philosophy: “racer centered design” while maximising the racing characteristics. In every detail we focused on reliability and maintenance. The DUOX comes with exceptional features unique to the 2WD field that further support its driver.
Required components:
- Bodyshell (MCD TCA5 or TCB5 body shells or other 535mm wheelbase)
- Tires
- 54mm Clutch
- Exhaust Pipe (MCD/Samba 8300)
- Engine
- Servos (4 high quality "Standard" sized)
- Radio (4+ channels with channel mixing function)
- Polycarbonate compatible paint
Some parts (engine, radio gear, tires, tune pipe, servos, batteries) shown on the pictures are for photographing purposes only and not included in the car.
The company reserves the right, at its discretion, to change and modify some properties of products without notification.
● HYDRODIFF, MCD hydraulic differential
● Easy maintenance
● Lower wishbone thrust bearing ball joint
● Shocks with Constant Pressure Cell
● Double deck rigid chassis set-up option
● Wide range of chassis flexibility set-up options
● Brake disc protector
● Wide range of roll center adjustment ability
● Easy and rapid adjustable anti-roll bar with blades
● 2° anti-dive (optional 0° anti-dive bracket)
● 2° anti-squat (optional 0° anti-squat bracket)
● Active caster adjustment inserts
● King pin adjustment
● One size weight balance
● Advanced all around compatibility
● Toe in adjustment
- Length: 780 mm
- Width: 392 mm (adjustable)
- Ground Clearance: Adjustable
- Weight: 9.8 kg (depending on equipment installed)
- Wheelbase: 535 mm
- Track Width: 330mm
- Chassis material: 7075 Anodized T6 Alloy (7.8mm)
- Suspension: Non-parallel non-line independent
- Caster angle: 4°(4° - 15° adjustable)
- Camber angle: Adjustable
- Toe angle: 1°, 1.5°, 2°, 2.5°,3° (adjustable)
- Rear Anti-Squat: 2°(optional 0° bracket)
- Front Anti-Dive: 2°(optional 0° bracket)
- Kingpin: Adjustable
- Shock absorber: Coil-over Oil-filled Internal High Pressure Cell
- Transmission: Rear wheel drive
- Gear ratio: 5.49:1 (5 available 5.05:1 to 5.99:1)
