TAYLOR AGFRC Billet Servo Horn Support Brace - 78kg, 100kg and 125kg A280 V1 Servos

SKU: TAY3052
£29.99 GBP
×
TAYLOR AGFRC Billet Servo Horn Support Brace - 78kg, 100kg and 125kg A280 V1 Servos

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

TAYLOR AGFRC Billet Servo Horn Support Brace - 78kg, 100kg and 125kg A280 V1 Servos

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓Valid
Only plain are not allowed in the message Message length must be 250 characters allowed
Country is required

If WhatsApp can't deliver your alert, we may send it to the same number by SMS instead.

Your notification has been registered. Close

We respect your privacy and don't share your email with anybody.

×

Question about this Product?

Free Delivery on all orders over £200

TAYLOR AGFRC Billet Servo Horn Support Brace - 78kg, 100kg and 125kg A280 V1 Servos

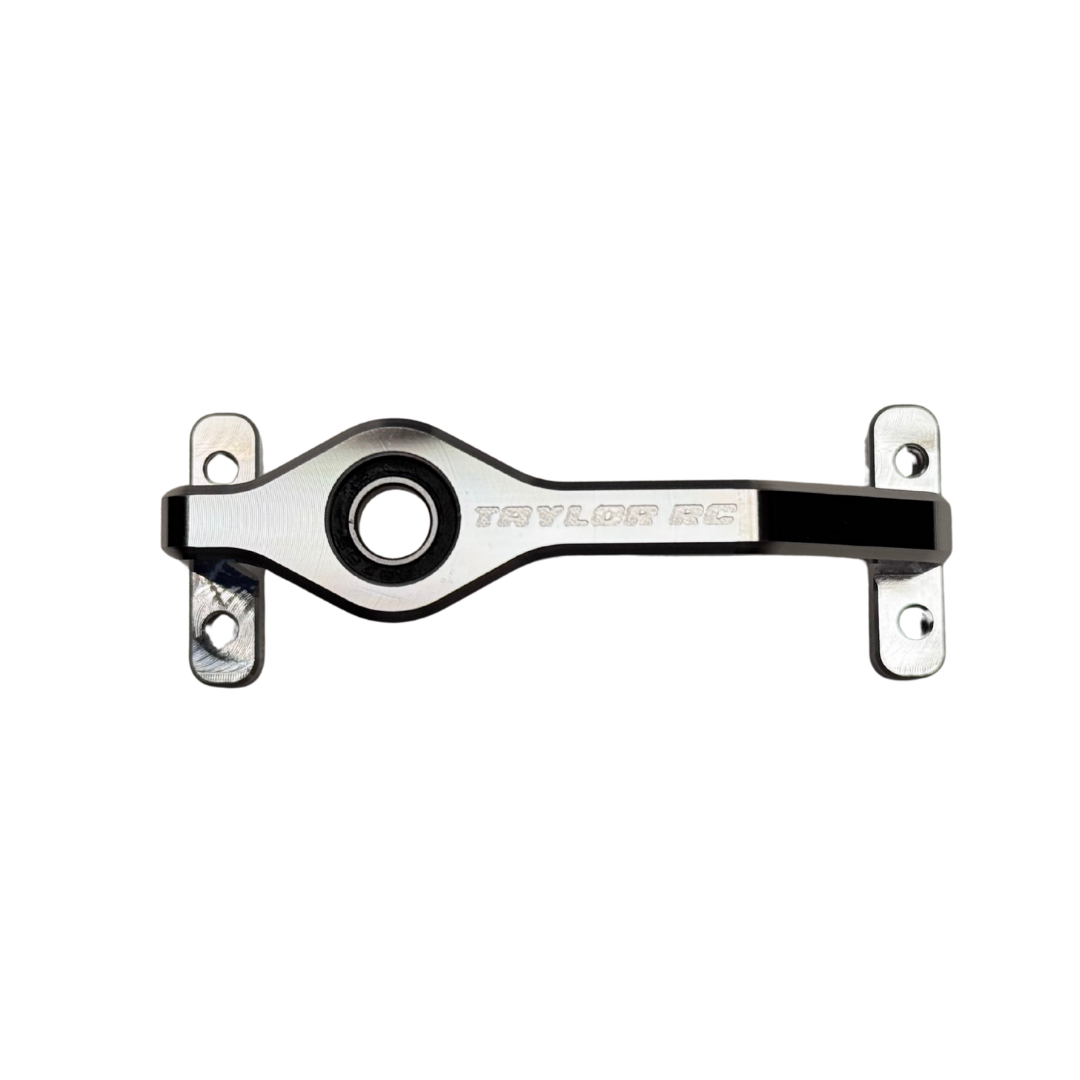

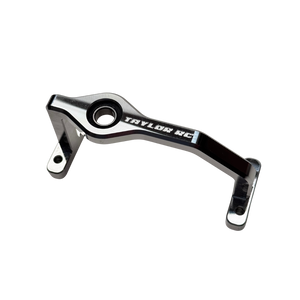

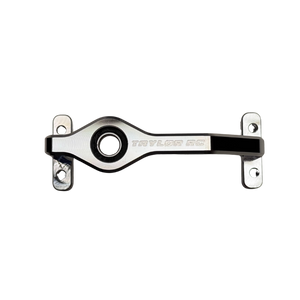

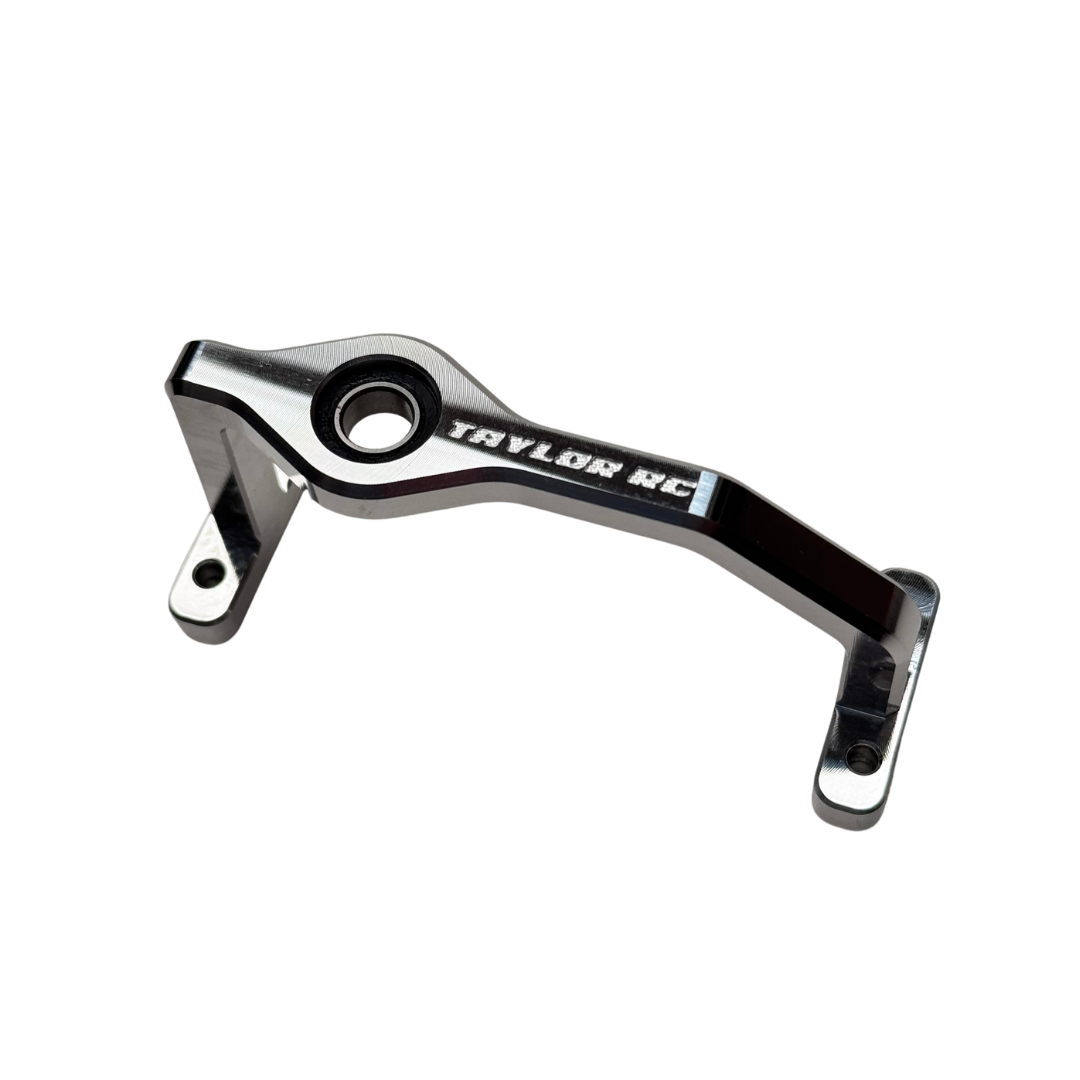

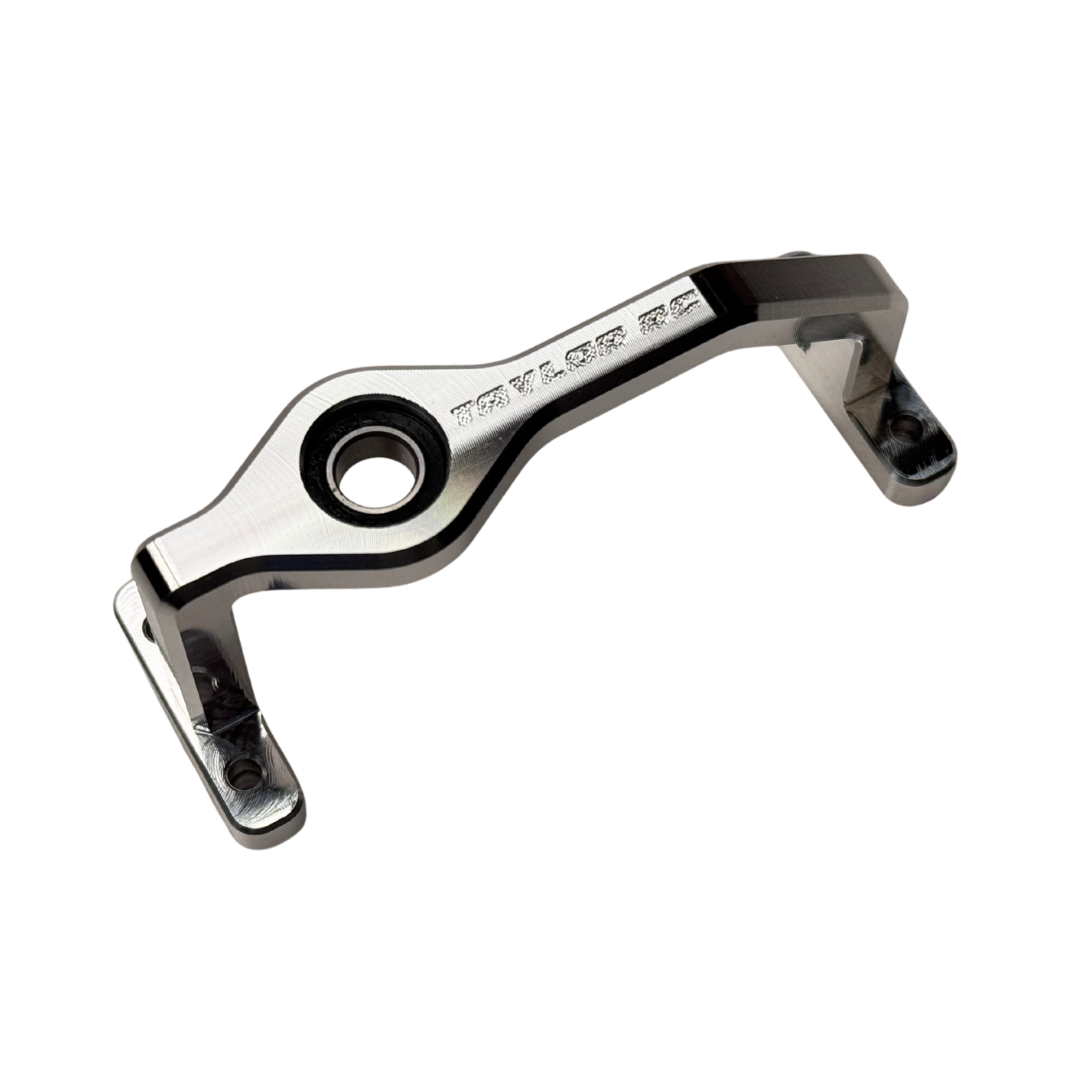

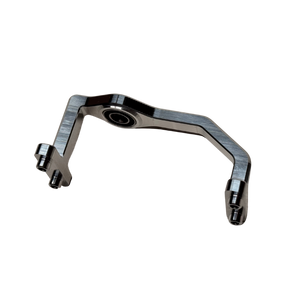

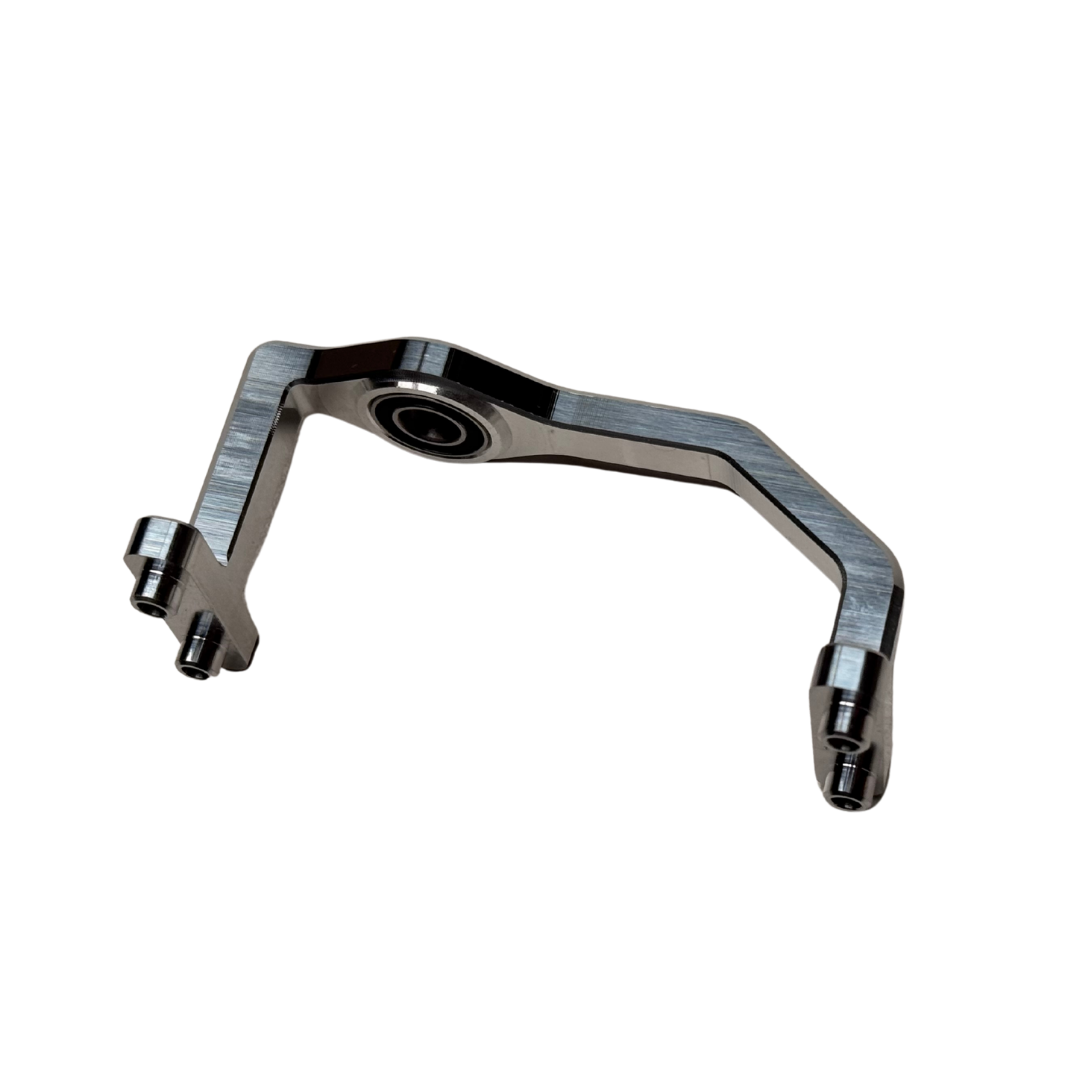

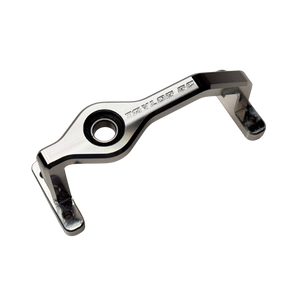

This stunning 1 piece brace is machined from a solid billet of 6082 Aluminium for extreme strength and zero flex.

This brace ONLY fits the very popular AGFRC A280 V1 Servos as below, or re-brand models whose servos are AGFRC A280s with different branding like Perfect Pass 110kg etc. This will not fit the newer V2 A280 models which have had a case and output spline location changed from V1 (165kg Apex for example)

Fitment list:

  • AGFRC 78kg A280BHMW
  • AGFRC 100kg A280BHLW
  • AGFRC 125kg A280BVSW

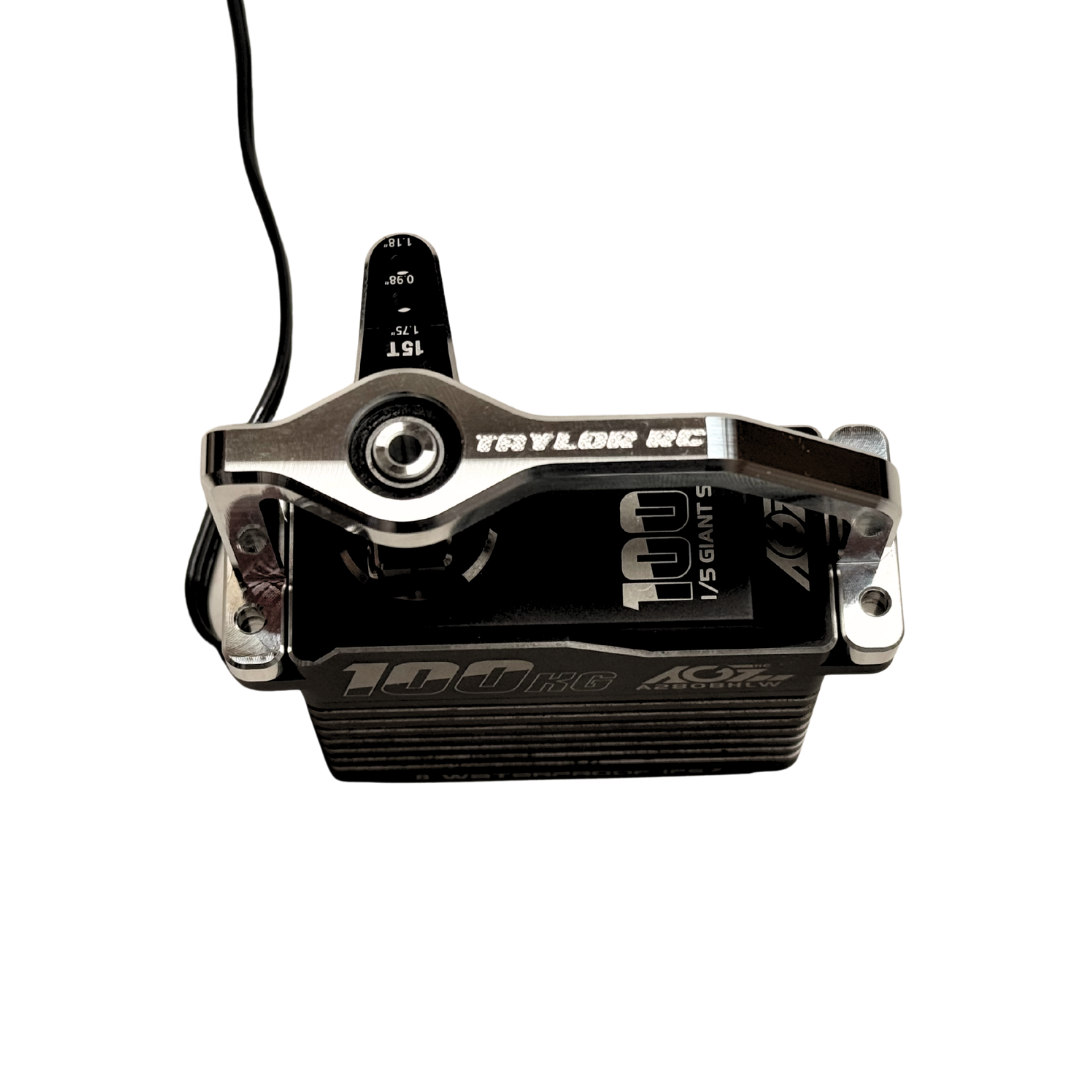

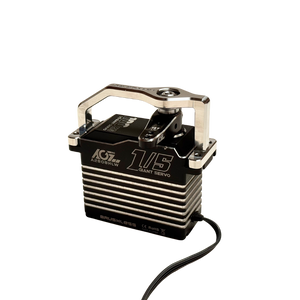

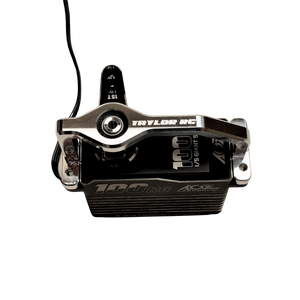

The Brace is fitted with a press-tolerance HD bearing and billet pivot eyelet which fits perfectly into the Genuine AGFRC Single and Dual Sided Servo horns!

As modern Servos, especially top of the range AGFRC brand get stronger and stronger, more load is placed on the bearings inside the case when the arm is pulling from the top.  This brace adds an extra bearing at the top to properly support the servo output shaft under harsh loads or kickback forces.

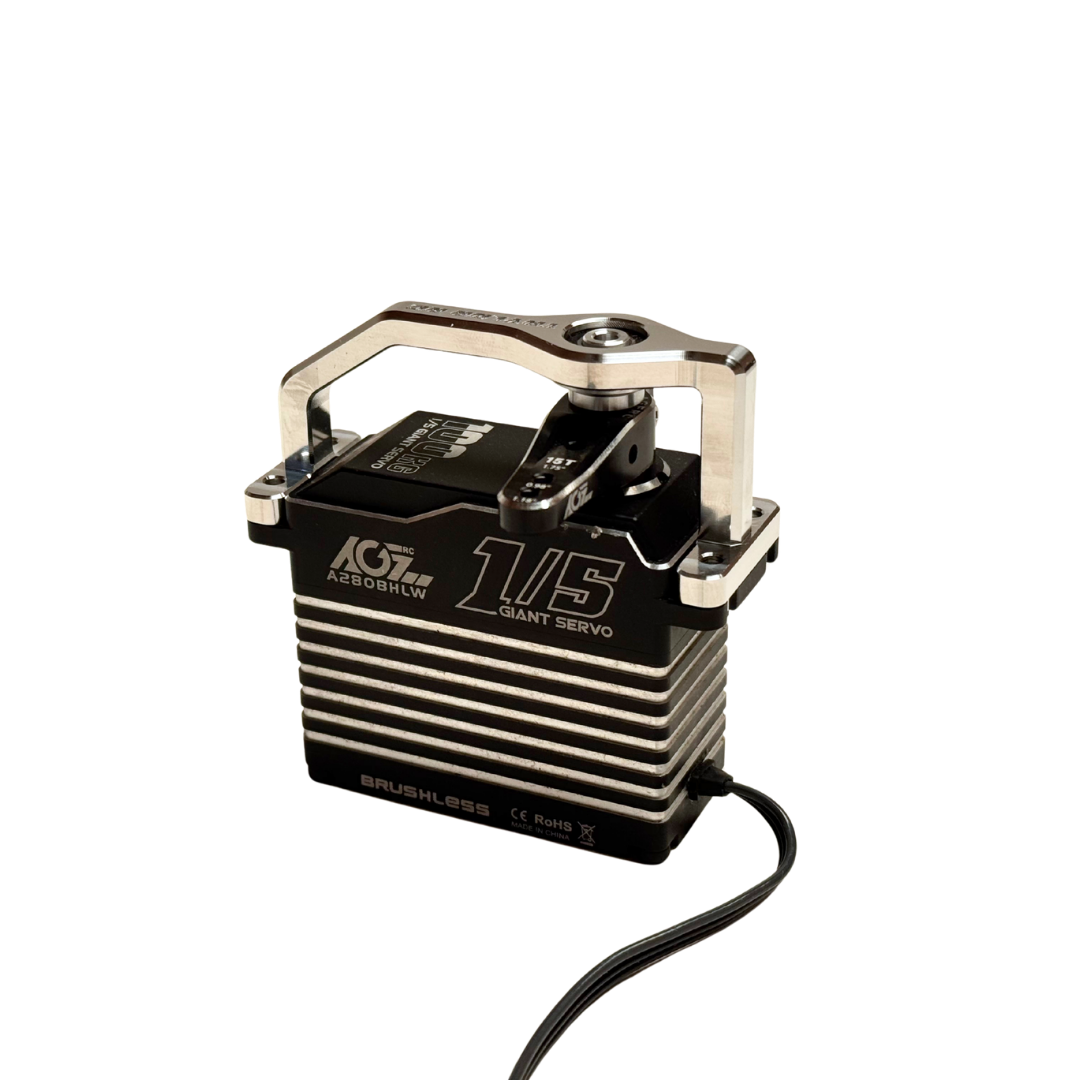

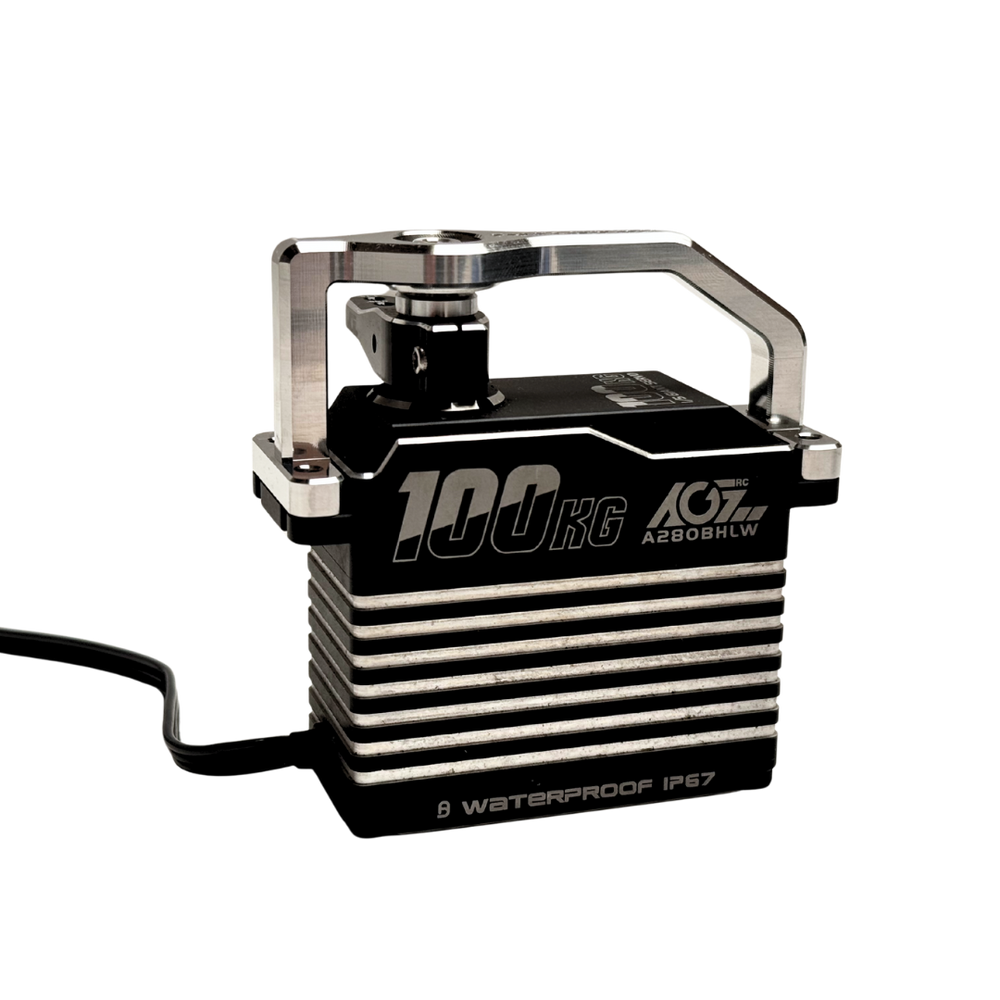

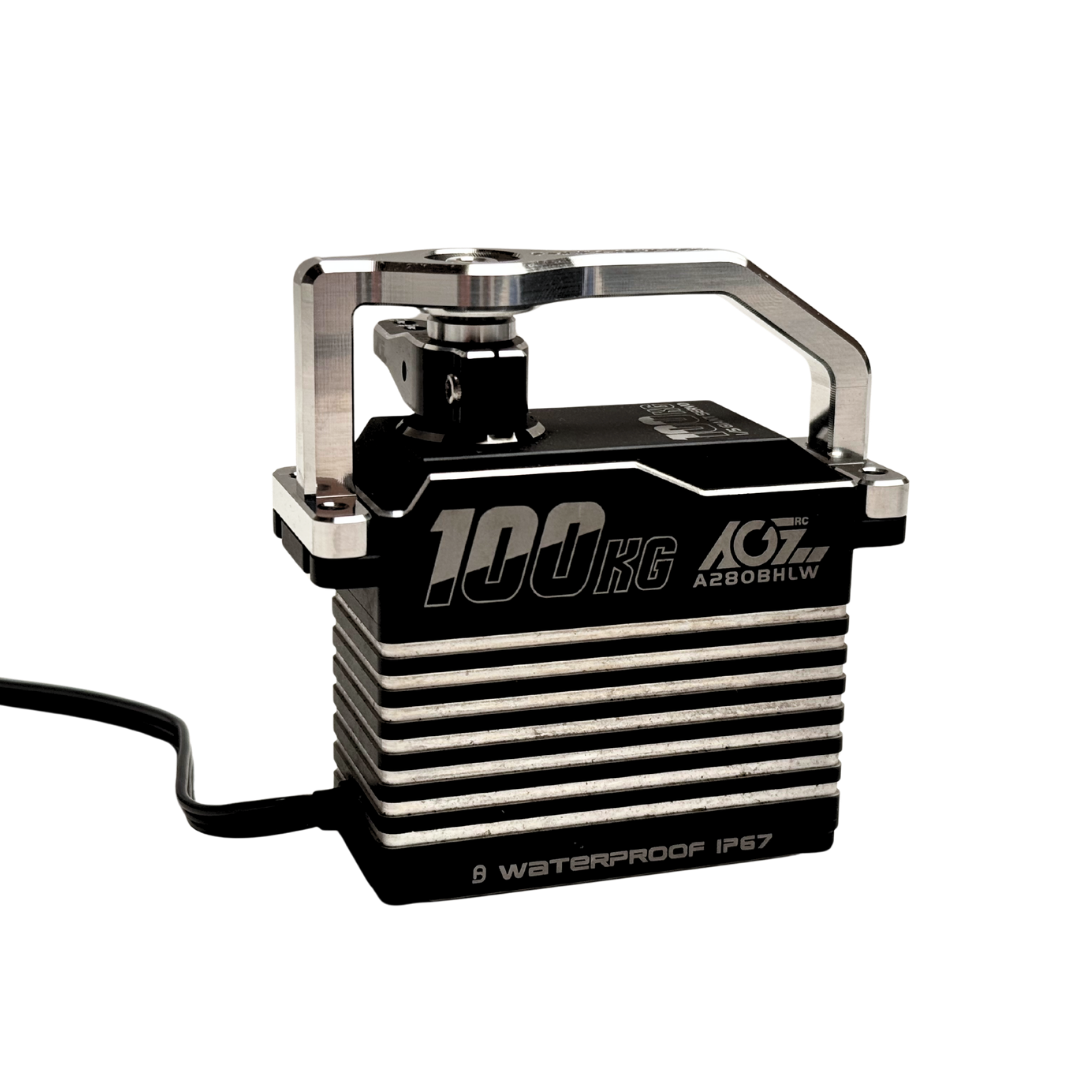

Taylor AGFRC billet servo horn support brace fitted to AGFRC servo, side angle

TAYLOR AGFRC Billet Servo Horn Support Brace - 78kg, 100kg and 125kg A280 V1 Servos

£29.99 GBP

This stunning 1 piece brace is machined from a solid billet of 6082 Aluminium for extreme strength and zero flex.

This brace ONLY fits the very popular AGFRC A280 V1 Servos as below, or re-brand models whose servos are AGFRC A280s with different branding like Perfect Pass 110kg etc. This will not fit the newer V2 A280 models which have had a case and output spline location changed from V1 (165kg Apex for example)

Fitment list:

The Brace is fitted with a press-tolerance HD bearing and billet pivot eyelet which fits perfectly into the Genuine AGFRC Single and Dual Sided Servo horns!

As modern Servos, especially top of the range AGFRC brand get stronger and stronger, more load is placed on the bearings inside the case when the arm is pulling from the top.  This brace adds an extra bearing at the top to properly support the servo output shaft under harsh loads or kickback forces.
