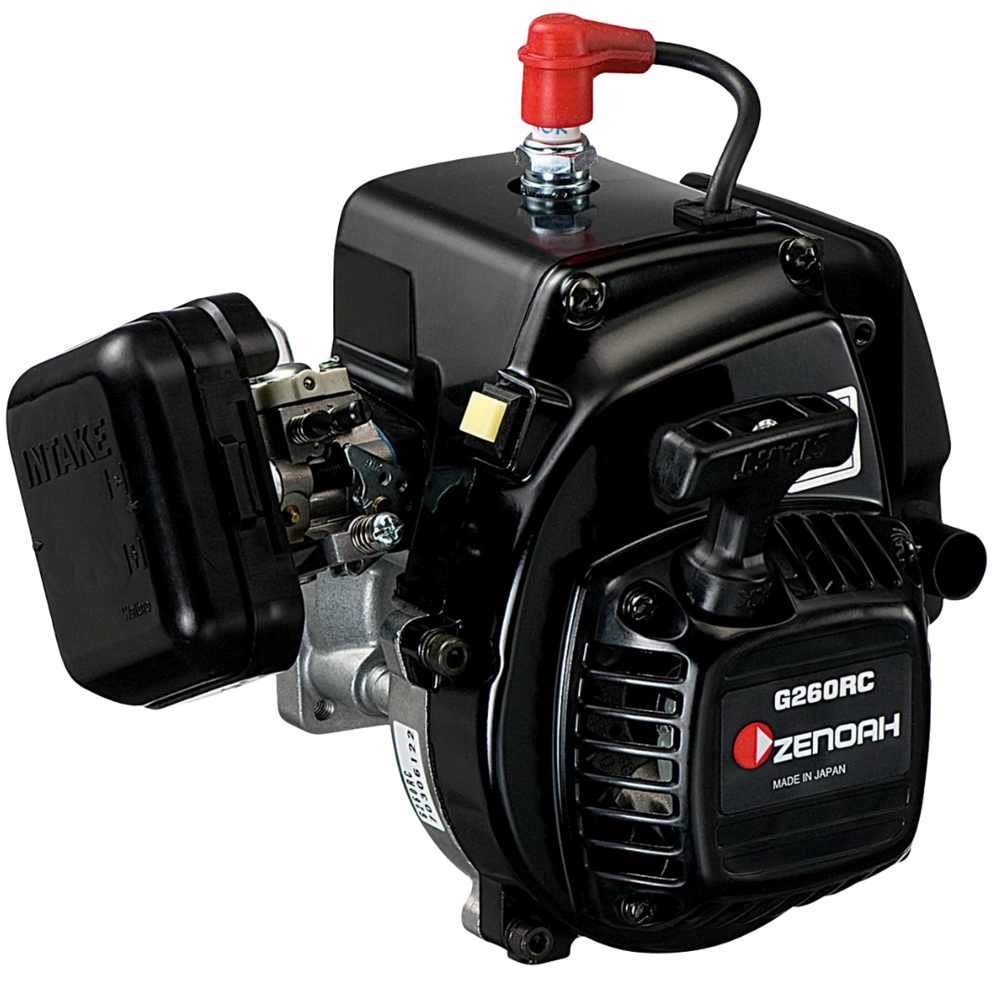

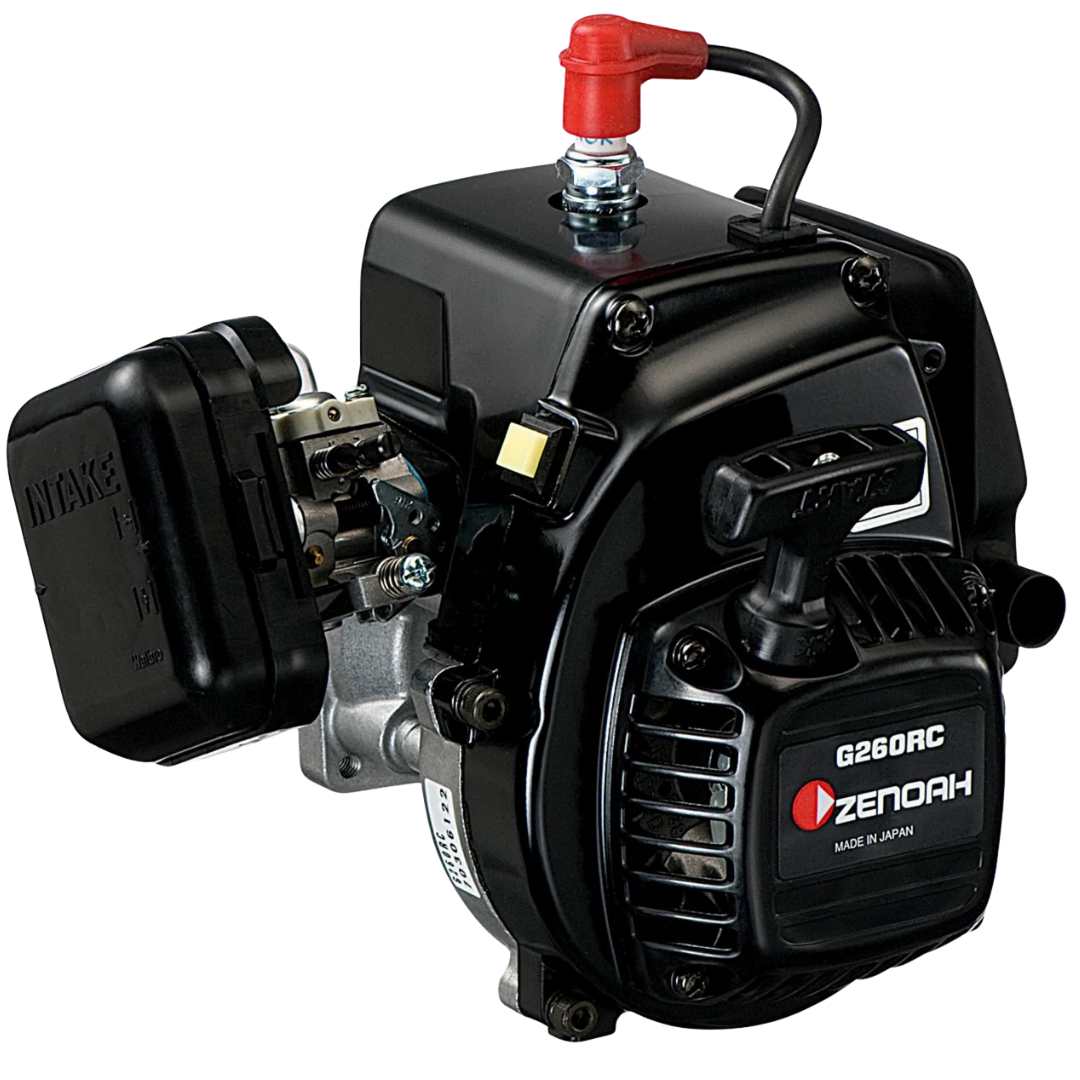

Zenoah G260RC 26cc Petrol 2-Stroke Single Cylinder Car 2 Bolt Engine

The G260RC is a 26cc designated engine (34mm bore, 28mm stroke). This is a complete engine that includes the Walbro WT-603B carb. This is a two bolt cylinder design and popular among racing series with displacement limitations. The G260RC sets the standard in performance, reliability and architecture for which many large scale RC models rely on today!

This engine includes a standard 2 shoe 54mm Zenoah clutch, muffler, and box style air filter. The air filter and exhaust muffler are typically not used in RC model applications. Taylor RC suggests using a high quality performance air filter and exhaust to get the most power from your model.

You can view and download the user manual HERE.

Specifications:

Engine

• Cylinder displacement　25.4 cm³
• Cylinder bore　34 mm
• Cylinder stroke　28 mm
• Start system　Recoil starter
• Spark plug　NGK CMR7H
• Carburetor　WT-603B

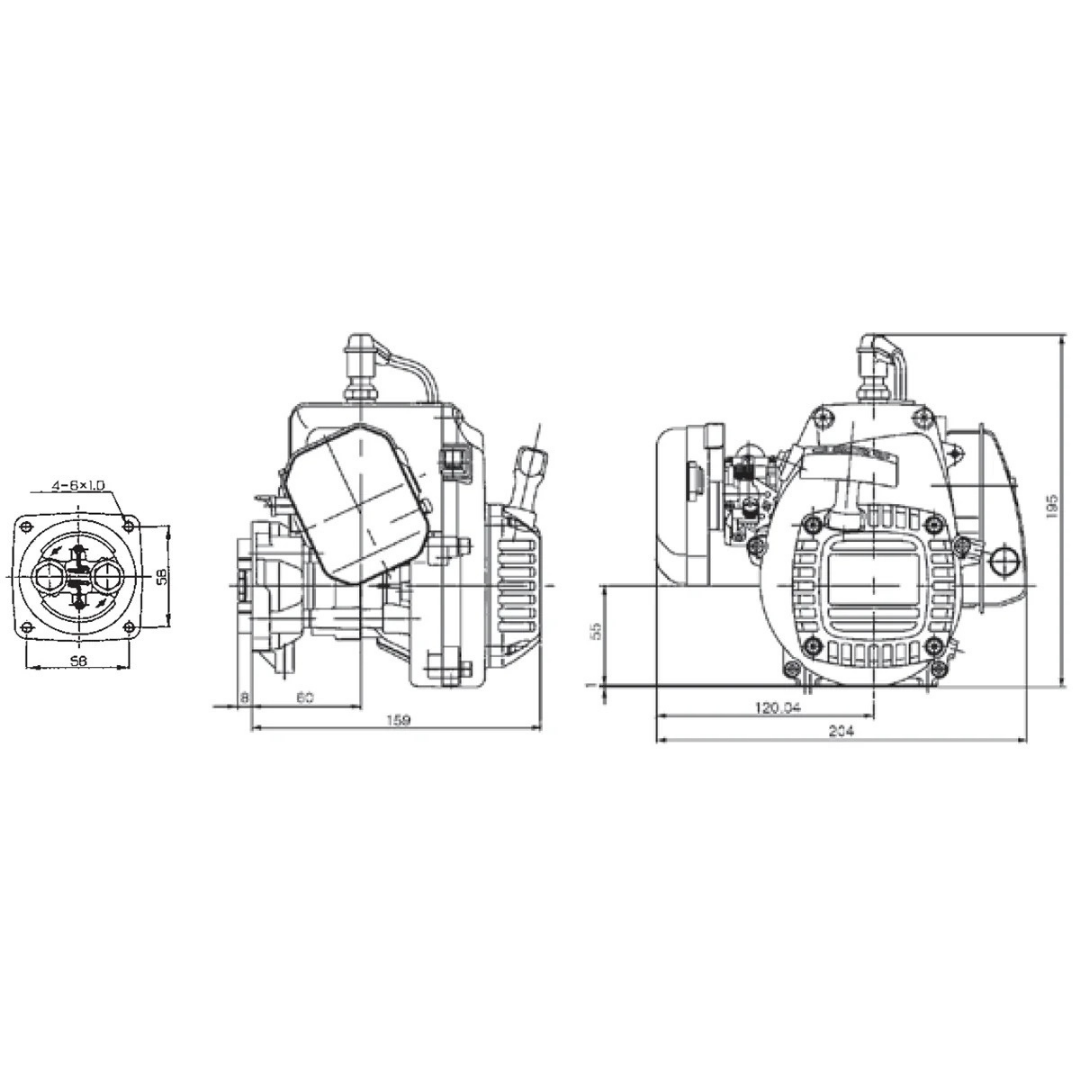

Dimensions

• Weight　2.1 kg
• Product size length　16.7 cm
• Product size width　20.4 cm
• Product size height　19.5 cm

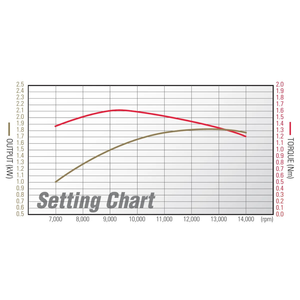

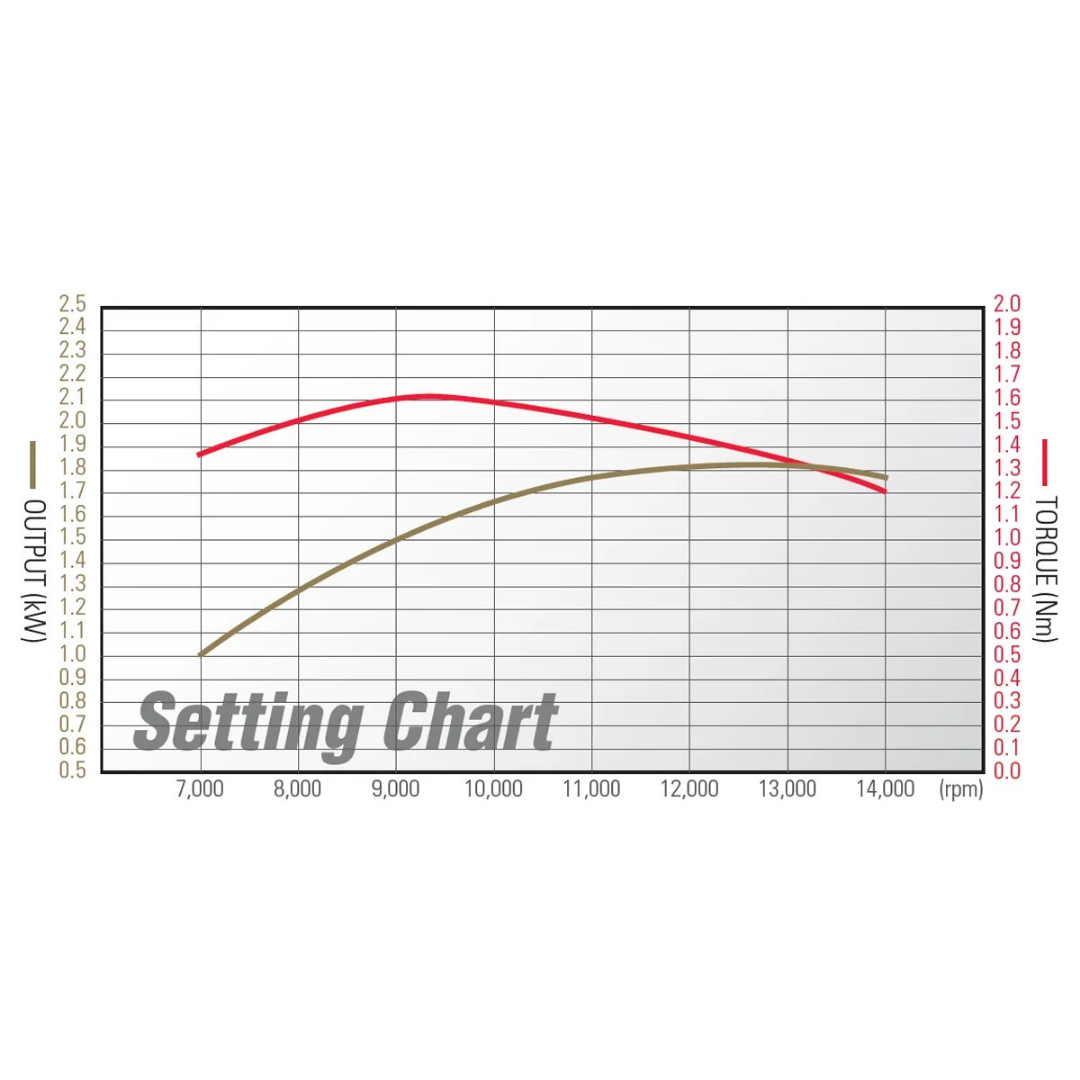

Performance

• Maximum Output　Net 1.82 kW
• Maximum Torque　Net 1.60 N・m
