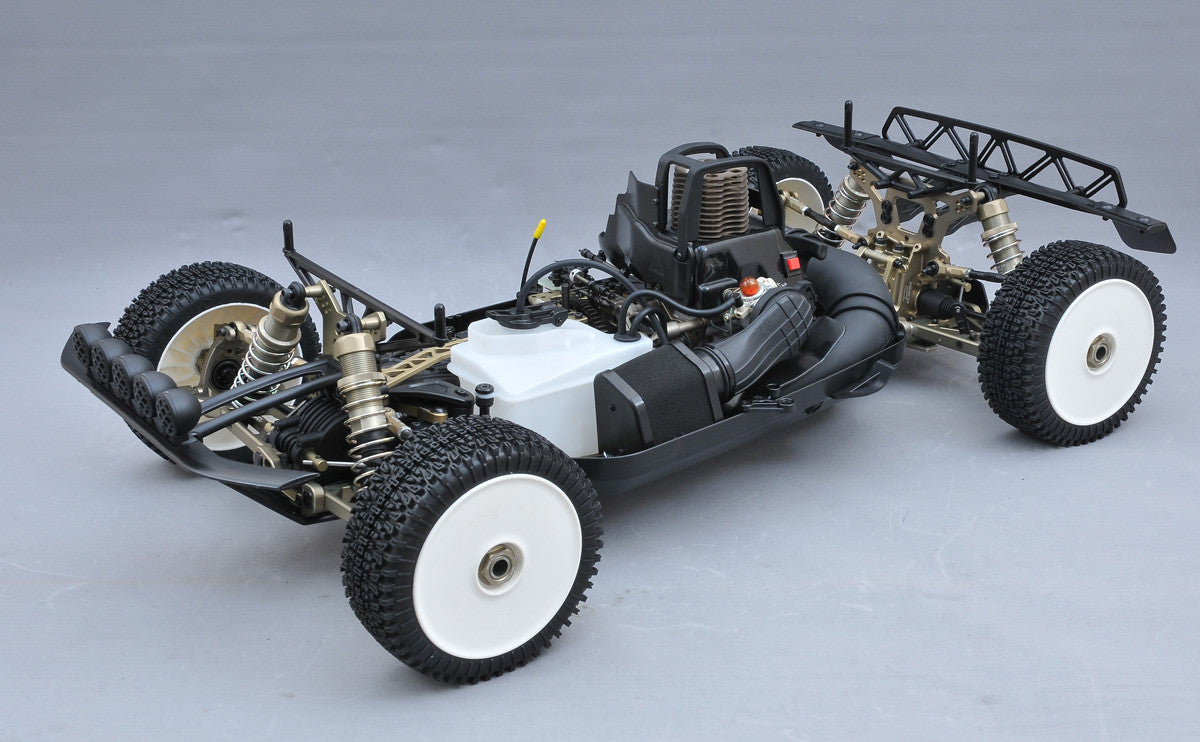

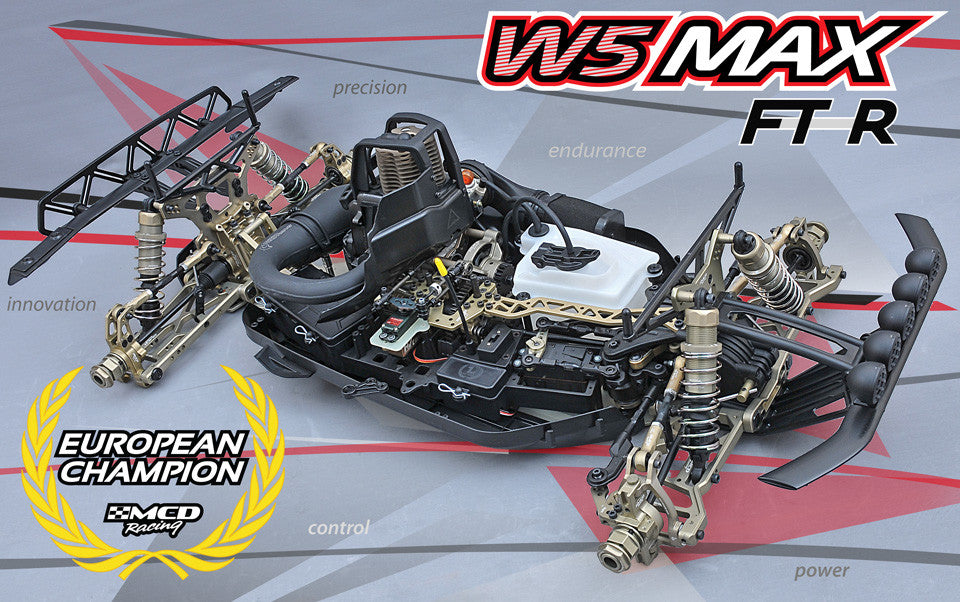

MCD W5 Max Short Course FT-R Rolling Chassis
M00567001: W5 Max FT-R Rolling Chassis including the Barracuda exhaust etc which are often removed and then upsold.
The W5 MAX FT-R carries the W5's design language characteristics of bold and aggressive styling and translates them into an elongated, dynamic look. Viewed in profile, the W5 states a sense of poise and strength, with a unique hood scoop and huge fender arches housing Off-road MCD Tires and stylish wheels providing a powerful posture. The MCD W5 MAX, a powerful blend of strength, agility and beauty is the new Short Course truck for the most demanding active off-road enthusiasts. The W5 MAX FT-R is designed to comply with the EFRA Regulations.
As this is a rolling chassis you will need the following to complete:
- 2-Stroke engine (TAYLOR 35cc Will make this fly!)
- Transmitter and receiver (We suggest 3+ channels)
- Steering and throttle/brake servo (Suggested Steering and Throttle servos)
- Receiver battery and charger
- On-Off Switch
- 2-Stroke oil
- Tools and polycarbonate paint

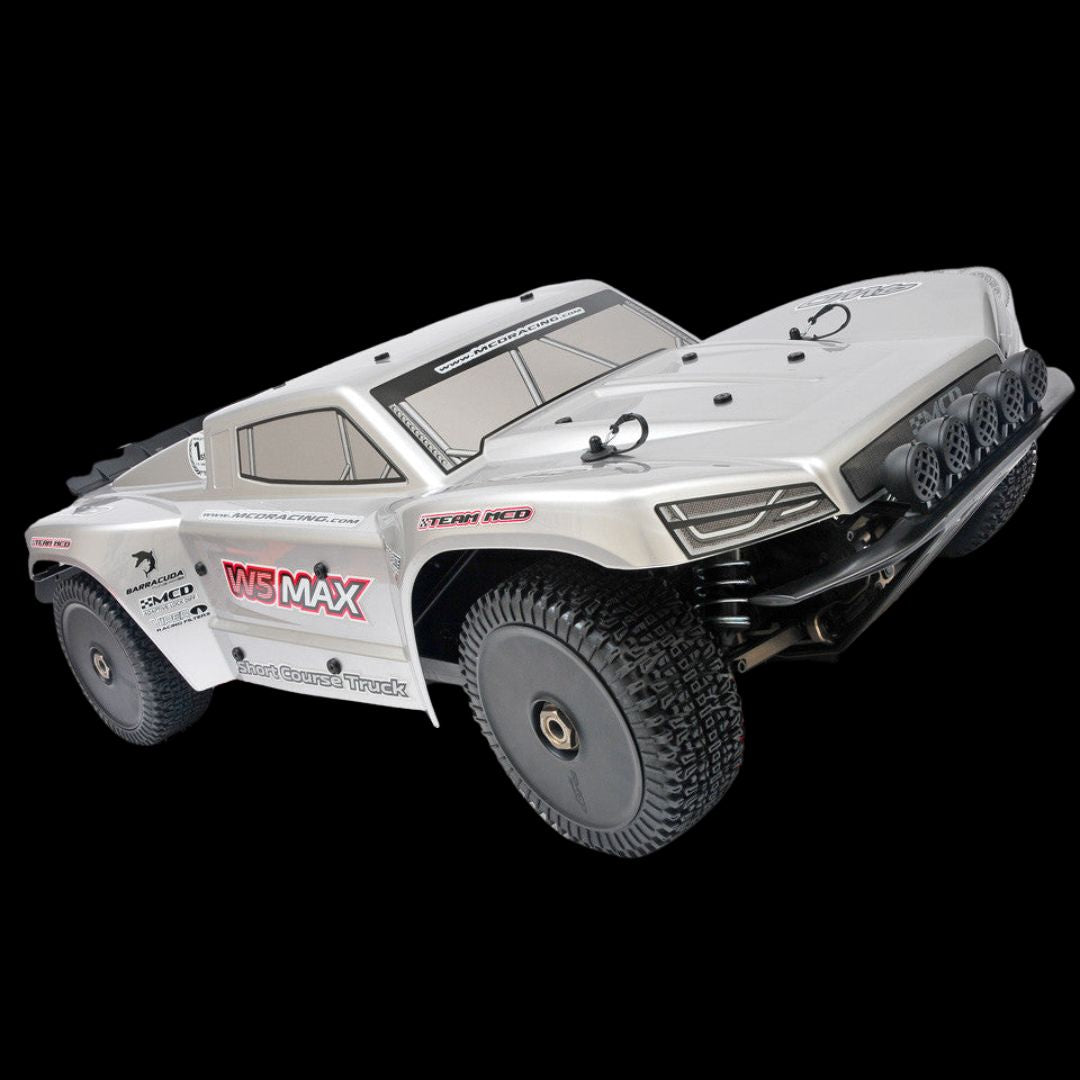

Cars come with a clear body and basic decal set, they may differ from the images on this page.
- Top of the line racing off-road Short Course Truck

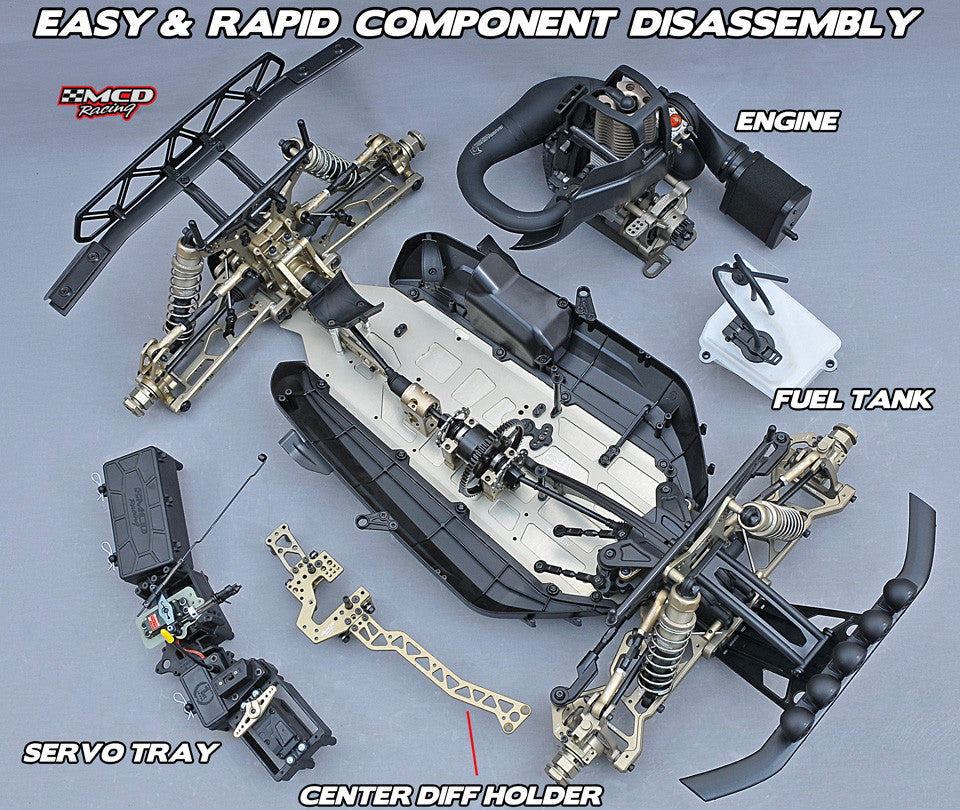

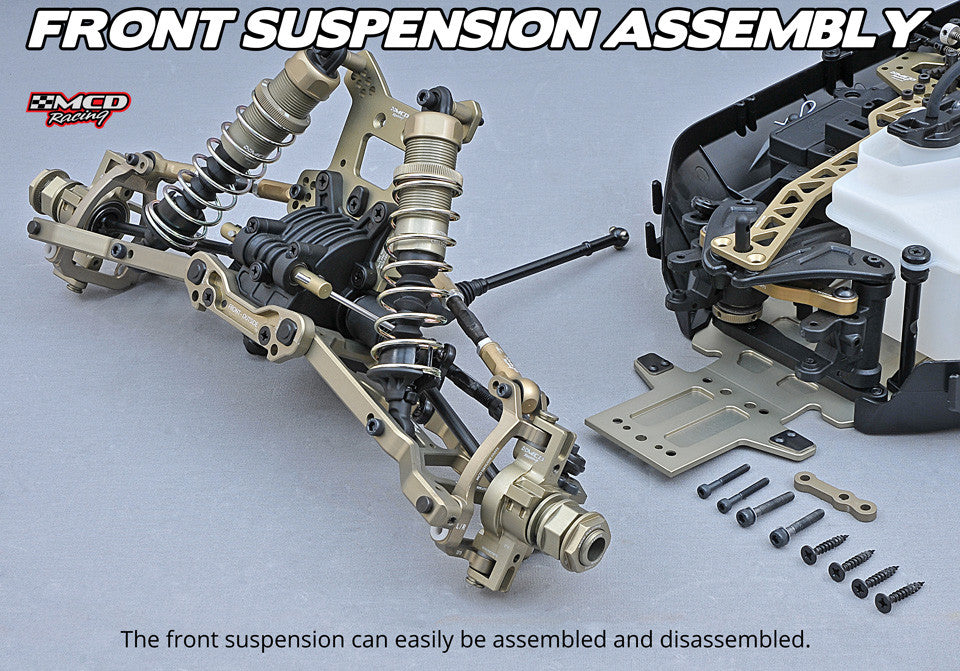

- Easy assembly/dis-assembly
- Easy maintenance
- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms

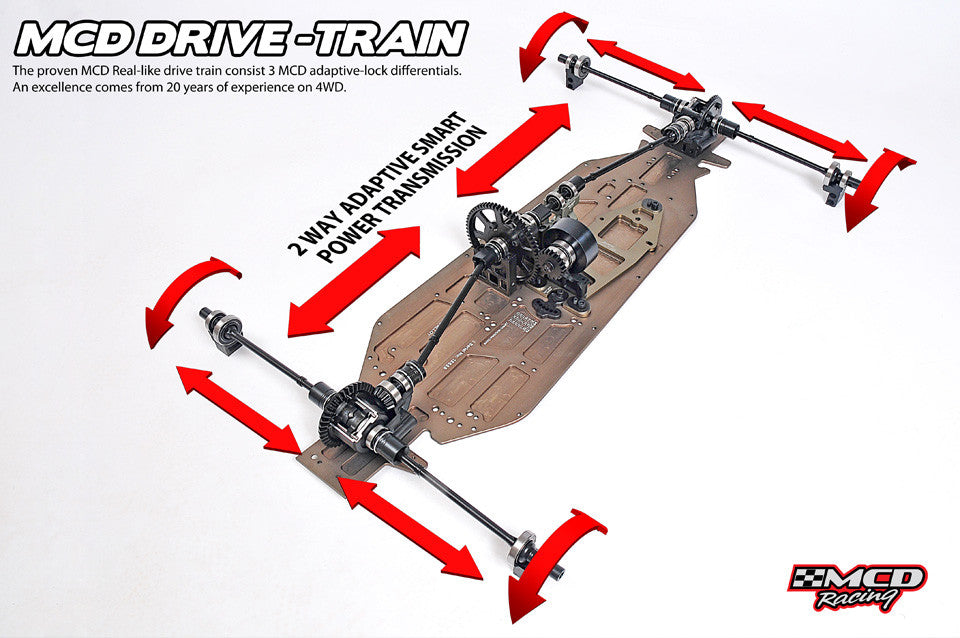

- Sophisticated full-time 4WD Shaft Driven mechanics
- EFRA compatible dimensions
- 3 Ball Drive Shaft

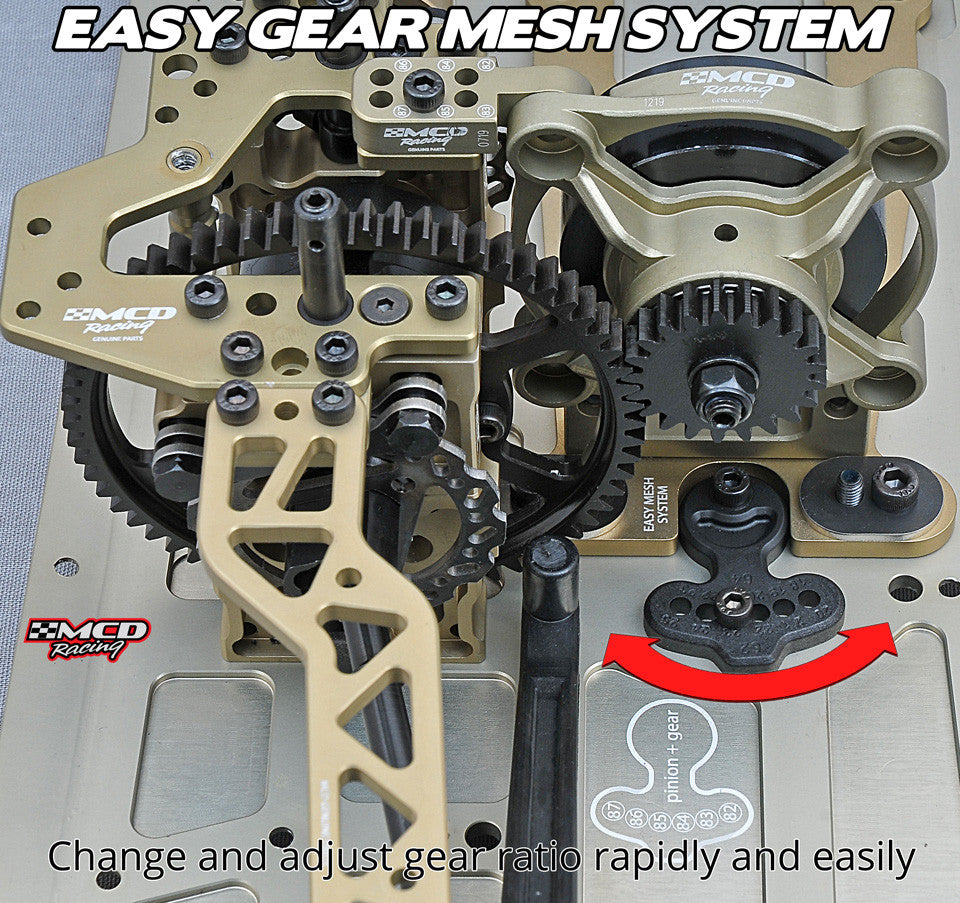

- Easy gear mesh system

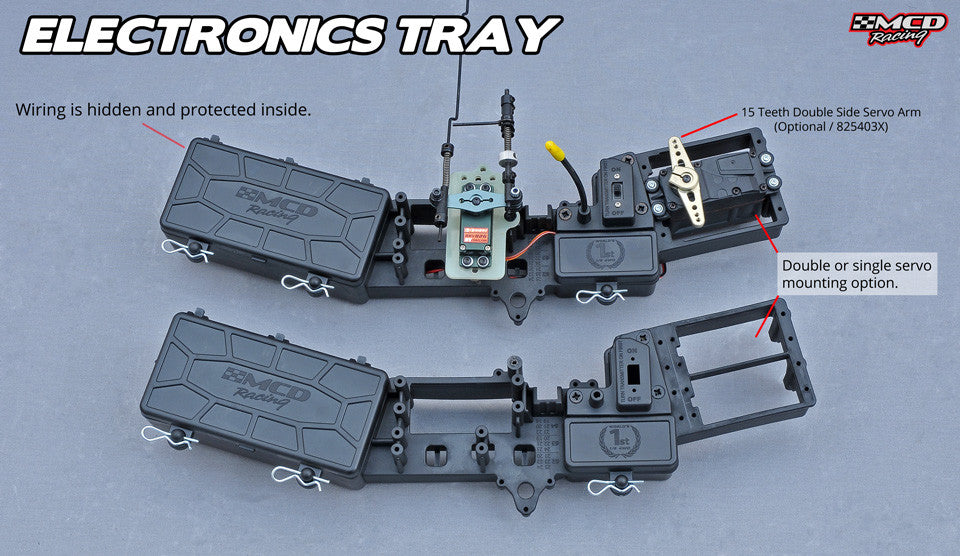

- Easily removable one-piece electronics tray

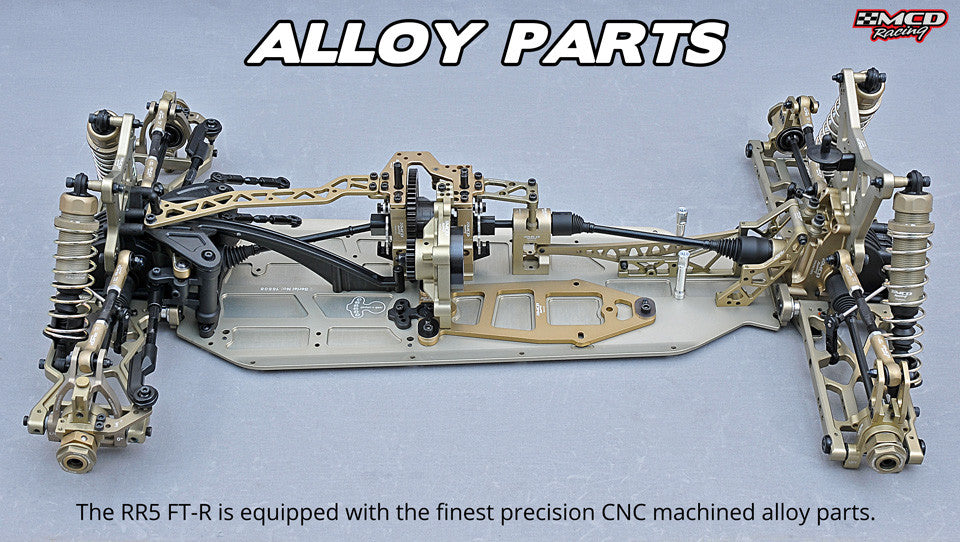

- CNC machined, anodized light-weight 7075 aircraft alloy chassis
- Rigid and durable alloy wishbones
- Solid and durable side guards

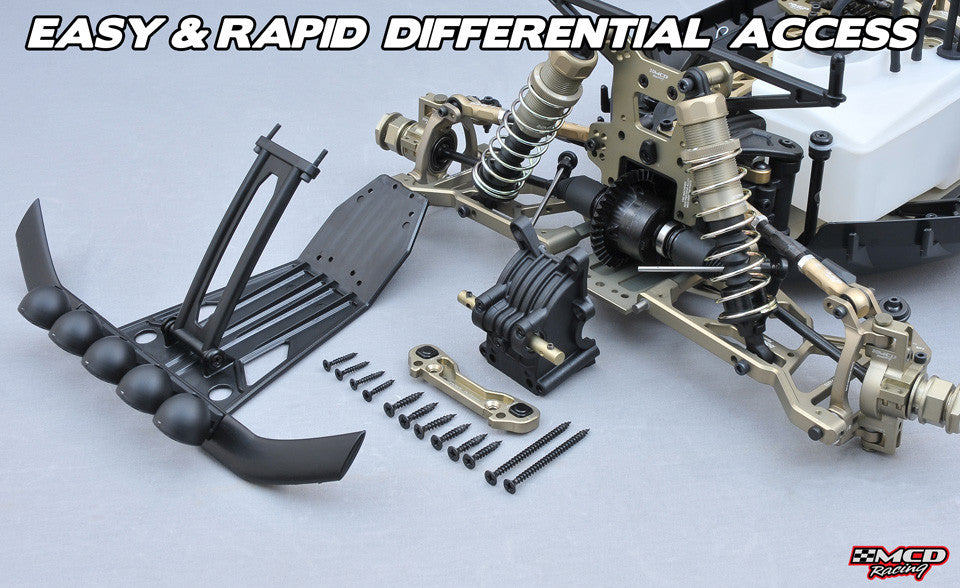

- Easily removable alloy and composite front and rear diff houses
- Easily removable alloy center diff carrier
- Ultra durable front and rear adjustable brake system
- Adjustable chassis rigidness
- Adjustable wheelbase

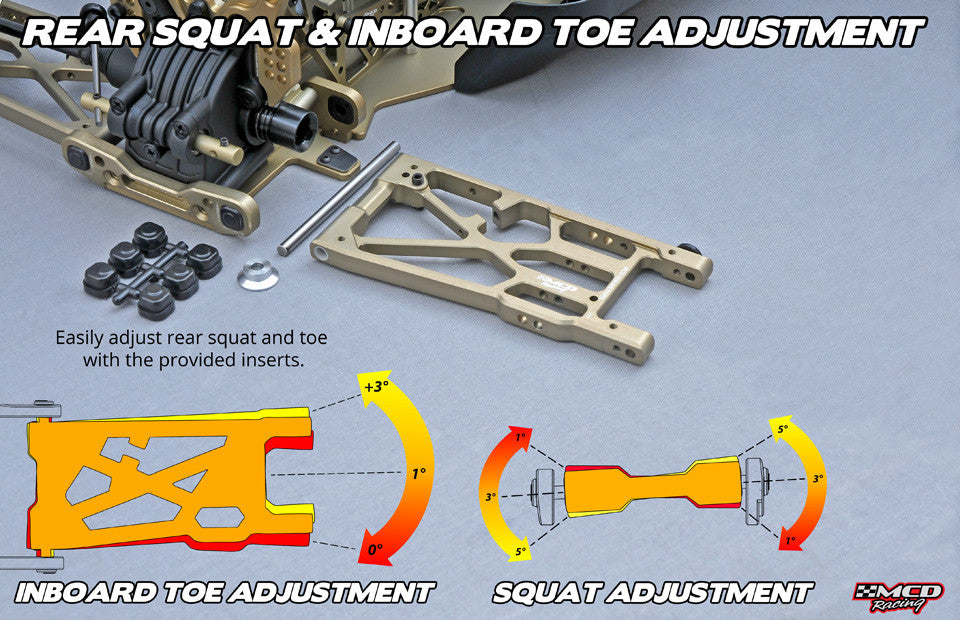

- Adjustable inboard toe and squat
- Adjustable dive & anti-dive
- Rear shock inside or outside assembly option
- Easy engine removal
- 5mm light-weight 7075 air craft alloy front and rear towers
- Optimized multiple shock mounting holes
- Coil-over extended alloy shock absorbers with High Pressurized Cell System
- Anodized alloy shock bodies
- Ultra hardened steel transmission gears
- CNC machined anodized alloy engine carrier
- Double ball bearing anti-roll bars
- No-Stress-Effect polyamide front and rear bumper
- Ultra durable steel ball cup-joints

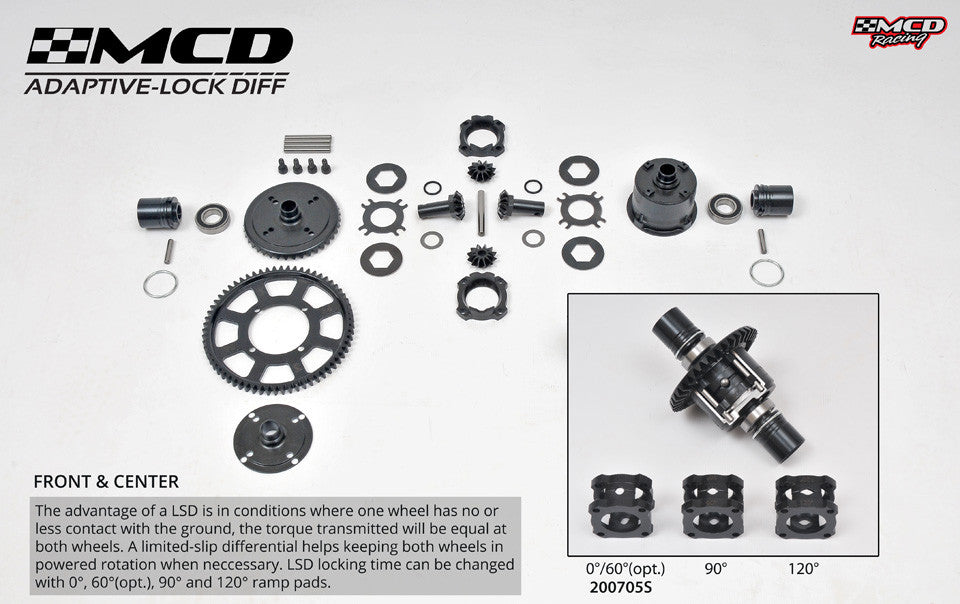

- Adaptive LSD differentials with adjustable lock timing Front & Center
- Front/central 90°&120° ramp self locking diffs

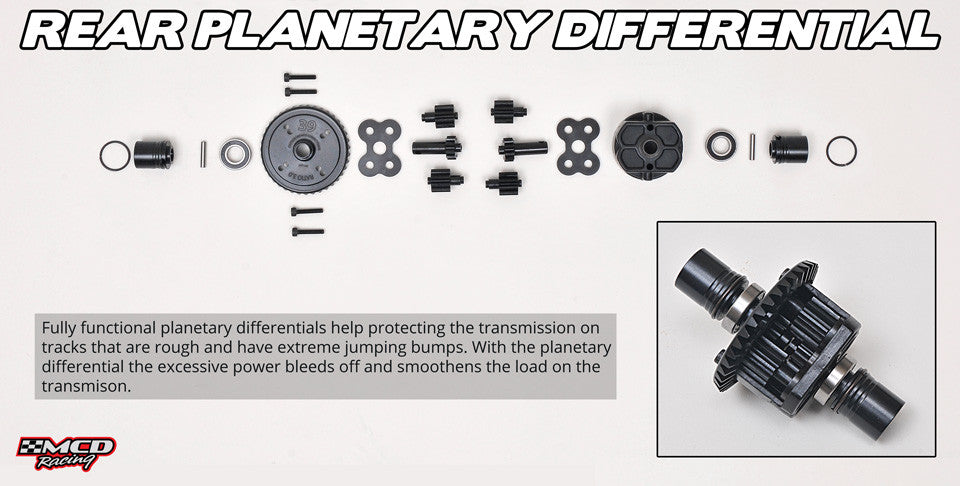

- Rear planetary differential
- Ackerman plate with ball-bearing
- Easy gear mesh system
- Super-Cooling V5 air ventilation system
- Viper Racing Air Filters with dual layer foam and thermoplastic hose
- Barracuda G performance exhaust

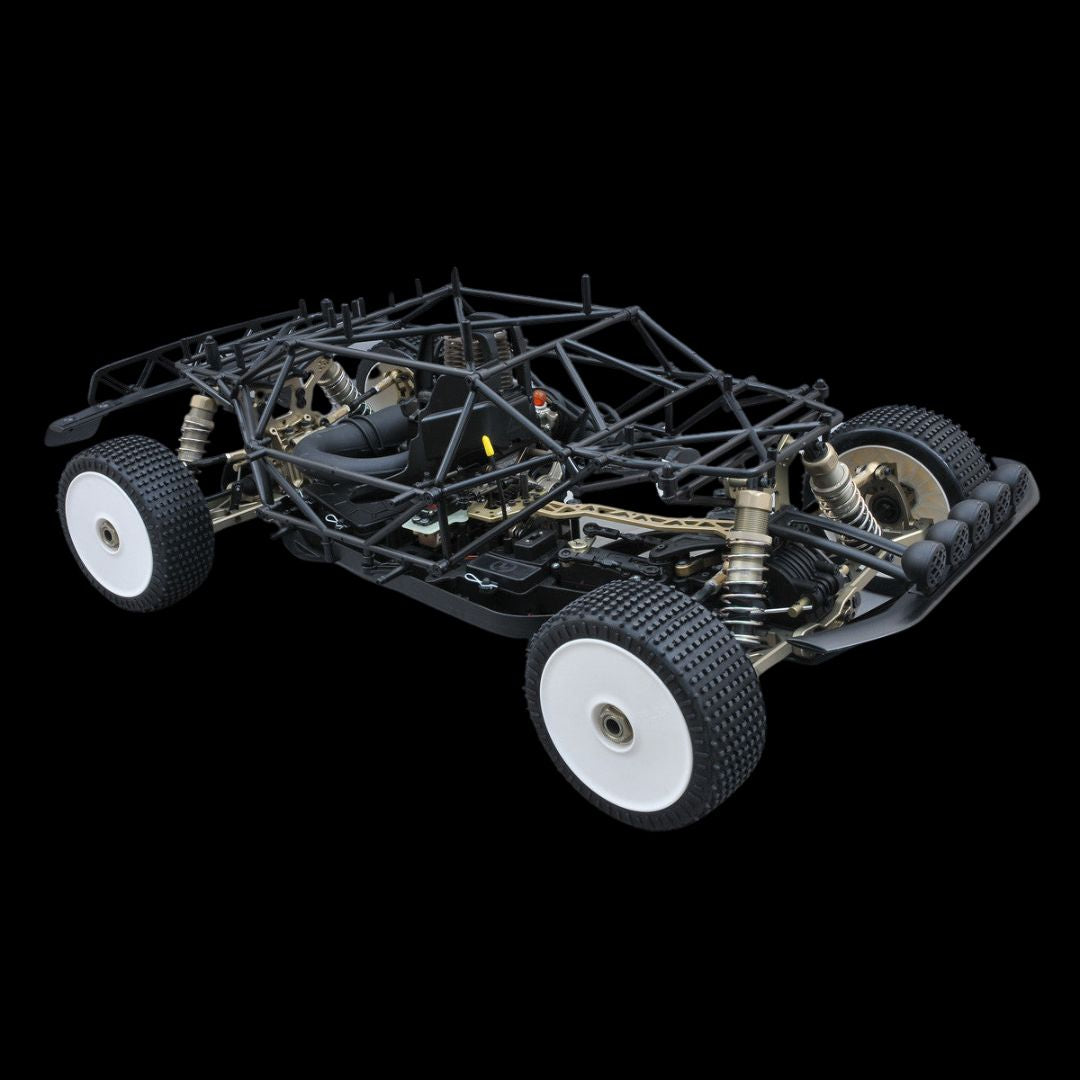

- Durable roll-cage
- Alloy Manifold
- Alloy Rose-joints
- Wide range of MCD Tyre options
- Wide range of shock spring options
- Adjustable CG
- Adjustable weight distribution
- Molded fuel tank with shake absorbing separators
- Fully composite body accessories
- Alloy hinge-pin holders
- Drive and shock shaft boot
- Length: 930 mm
- Width: 495 mm
- Overall height: 330 mm
- Ground clearance: 28-85 mm
- Weight: 14.5-14.9kg (Depending on the installed components)
- Wheelbase: 610-625 mm (adjustable-EFRA Compatible)
- Trackwidth
- : 430mm
- Chassis material: 7075 Anodized T6 Alloy (4mm)
- Suspension: Non-parallel non-line independent
- Caster angle: 8°(6° - 10°(total caster) adjustable)
- Camber angle: Adjustable
- Toe angle: In-board and out-board adjustable
- Anti-squat: 3°(adjustable)
- Rear-squat: 5°
- Dive, Anti-dive: 6°-10°(adjustable)
- Kick-up: 8°-10°(adjustable)
- Shock absorber: Coil-over Oil-filled Internal High Pressure Cell
- Transmission: Full-Time 4WD 3-Diff Shaft Driven
- Gear ratio: 9,14:1 (18 available 7,44:1 to 10,67:1)
- Tyre size: 68 x 180 mm
