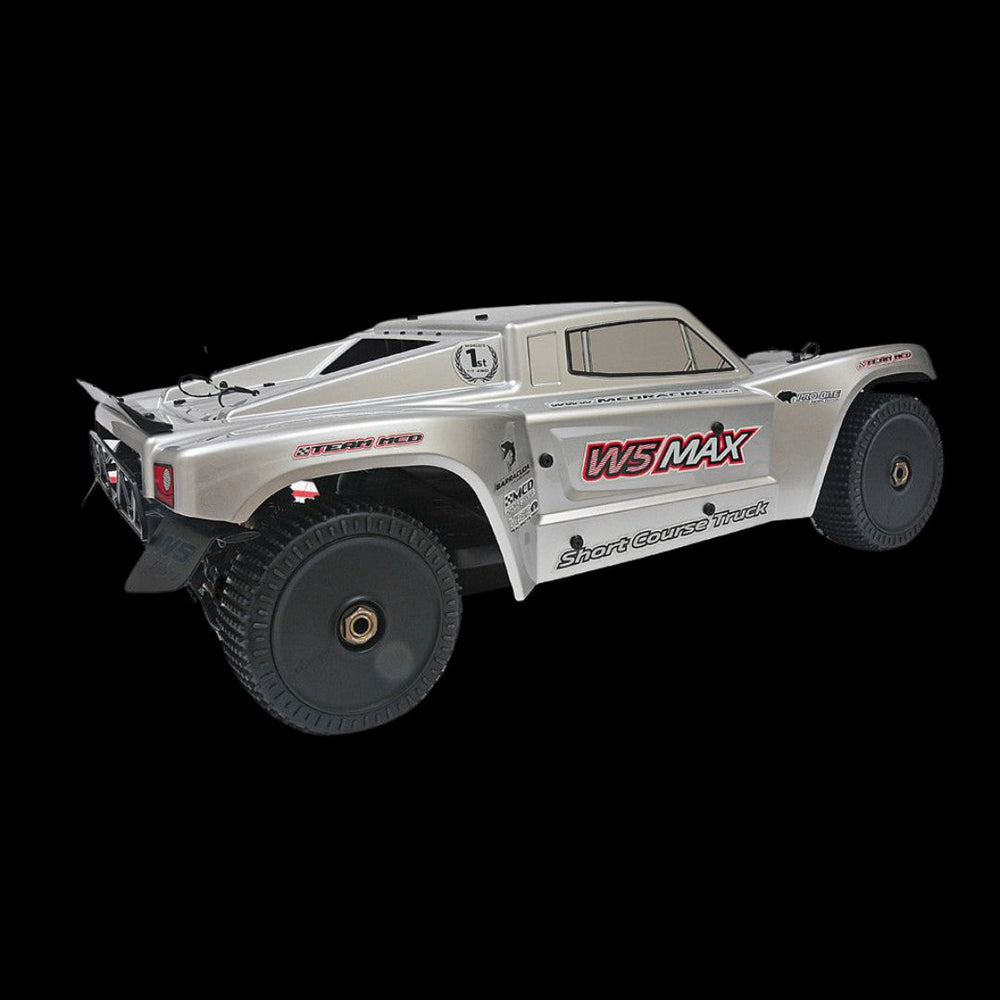

M00565201 - MCD W5 Max E-Chassis Pro Short Course
The W5 MAX carries the W5's design language characteristics of bold and aggressive styling and translates them into an elongated, dynamic look. Viewed in profile, the W5 states a sense of poise and strength, with a unique hood scoop and huge fender arches housing Off-road MCD Tires and stylish wheels providing a powerful posture. The MCD W5 MAX, a powerful blend of strength, agility and beauty is the new Short Course truck for the most demanding active off-road enthusiasts.
As this is a rolling chassis you will need the following to complete:
- Brushless Setup
- Transmitter and receiver
- Steering servo
- Batteries and Charger
- On-Off Switch
- Tools and polycarbonate paint
Features:
- Top of the line racing Short Course Truck
- Easy assembly/dis-assembly
- Easy maintenance
- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms
- Sophisticated full-time 4WD Shaft Driven mechanics
- EFRA compatible dimensions
- Ultra strengthened chrome drive shaft and axle
- Easy gear mesh system
- Easily removable one-piece electronics tray
- CNC machined, anodized light-weight 7075 aircraft alloy chassis
- Strengthened long wishbones
- Spare softer wishbones
- Solid and durable side guards
- Easily removable composite front, rear and center diff houses
- Ultra durable front and rear adjustable brake system
- Rear-brake only servo slot
- 5mm light-weight 7075 air craft alloy front and rear towers
- Optimized multiple shock mounting holes
- Coil-over extended alloy shock absorbers with High Pressurized Cell™ System
- Anodized alloy shock bodies
- Ultra hardened steel transmission gears
- CNC machined anodized alloy engine carrier
- Double ball bearing anti-roll bars
- No-Stress-Effect polyamide front and rear bumper
- Ultra durable steel ball cup-joints
- Planetary differentials
- Super-Cooling V5 air ventilation system
- Adjustable CG
- Adjustable weight distribution
- Fully composite body accessories
- Alloy hinge-pin holders
- Improved front stiffener
- Drive and shock shaft boot
| Length | : 930 mm |
| Width | : 495 mm |
| Overall height | : 330 mm |
| Ground clearance | : 25-85 mm |
| Weight | : 14.5-14/9kg (Depending on the installed components) |
| Wheelbase | : 610-625 mm (adjustable EFRA-Compatible) |
| Trackwidth | : 430mm |
| Chassis material | : 7075 Anodized T6 Alloy (4mm) |
| Suspension | : Non-parallel non-line independent |
| Caster angle | : 8°(6° - 10°(total caster) adjustable) |
| Camber angle | : Adjustable |
| Toe angle | : In-board and out-board adjustable |
| Anti-squat | : 3°(adjustable) |
| Rear-squat | : 5° |
| Dive, Anti-dive | : 6°-10°(adjustable) |
| Kick-up | : 8°-10°(adjustable) |
| Shock absorber | : Coil-over Oil-filled Internal High Pressure Cell |
| Transmission | : Full-Time 4WD 3-Diff Shaft Driven |
| Gear ratio | : 9,14:1 (18 available 7,44:1 to 10,67:1) |
| Tyre size | : 68 x 180 mm |
Some parts motor/esc etc shown on the pictures are for photographing purposes only and not included in the car. The Company reserves the right, at its discretion, to change and modify some properties of products such as colors of wheels, tire patterns, compound of tires without notification.
